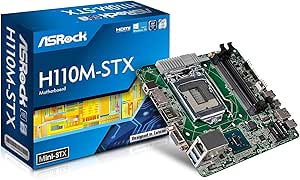

ASRock H110M-STX Mini-STX Motherboard
★★★★★
65WUSB 3.0USB 2.0DisplayPort
Compact and Powerful: ASRock H110M-STX Mini-STX Motherboard The ASRock H110M-STX Mini-STX Motherboard supports 6th generation Intel Core processors up to 65W. Featuring dual-channel DDR4 memory support, SATA3 ports, USB 3.0, HDMI, DisplayPort, and VGA, it offers a versatile platform for compact P...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact and Powerful: ASRock H110M-STX Mini-STX Motherboard
The ASRock H110M-STX Mini-STX Motherboard supports 6th generation Intel Core processors up to 65W. Featuring dual-channel DDR4 memory support, SATA3 ports, USB 3.0, HDMI, DisplayPort, and VGA, it offers a versatile platform for compact PC builds.
Specifications:
- CPU Support: 6th Generation Intel Core i7/i5/i3/Pentium/Celeron
- Chipset: Intel H110
- Memory: 2 x DDR4-2133 DIMM Slots, up to 32GB
- SATA: 2 x SATA3 Ports (6.0 Gbps)
- Ports: 1 x USB 3.0, 3 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x DisplayPort, 1 x RJ45 LAN
- Audio: Headphone, Microphone
Key Features
LGA 1151, supports 6th generation Intel Core i7/ i5/ i3/ Pentium/ Celeron processors; supports CPU up to 65W; supports Intel Turbo boost 2.0 technology
Chipset: Intel H110
Memory: 2x DDR4-2133 DIMM Slots, dual-channel, Non-ECC, Unbuffered, max capacity of 32G
SATA: 2x SATA3 Ports, support NCQ, AHCI and hot Plug
Ports: 1x USB 3.0 port, 3x USB 2.0 Ports (1 rear, 2 via header), 1x VGA port, 1x HDMI port, 1x DisplayPort, 1x RJ45 LAN port, 1x headphone, 1x Microphone
Specifications
CPU Socket
LGA 1151
Supported Processors
6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron
Max CPU TDP
65W
Chipset
Intel H110
Memory Slots
2x DDR4-2133 DIMM
Memory Type
Dual-channel, Non-ECC, Unbuffered
Max Memory Capacity
32GB
SATA Ports
2x SATA3
USB Ports
1x USB 3.0 (rear), 3x USB 2.0 (1 rear, 2 via header)
Video Output
1x VGA, 1x HDMI, 1x DisplayPort
LAN
1x RJ45
Audio Ports
1x Headphone, 1x Microphone
Pros & Cons
👍 Pros
- Supports a wide range of Intel 6th generation processors, from Celeron to Core i7, for versatile CPU choices.
- Equipped with two DDR4-2133 DIMM slots, allowing for a maximum memory capacity of 32GB.
- Features an Intel H110 chipset, providing a stable foundation for system operations.
- Includes multiple display output options such as VGA, HDMI, and DisplayPort for flexible monitor connections.
- Offers both USB 3.0 and USB 2.0 ports, alongside SATA3 ports, for various peripheral and storage needs.
👎 Cons
- Memory speed is limited to DDR4-2133, which may not be ideal for users seeking faster RAM performance.
- The motherboard supports only 6th generation Intel processors, limiting upgrade options to newer CPU architectures.
- With only two DDR4 DIMM slots, the maximum memory capacity is 32GB, which might be insufficient for demanding tasks.
- Only two SATA3 ports are available, potentially restricting the number of direct SATA storage devices that can be connected.
Frequently Asked Questions
Which generation of Intel processors does this motherboard support?
This ASRock H110M-STX Mini-STX Motherboard supports 6th generation Intel Core i7, i5, i3, Pentium, and Celeron processors.
What is the maximum amount of RAM that can be installed on this motherboard?
The motherboard features two DDR4-2133 DIMM slots, supporting a maximum memory capacity of 32GB.
How many SATA ports are available on this motherboard for storage devices?
There are two SATA3 ports available, which support NCQ, AHCI, and hot plug functionalities.
What display outputs are included on the ASRock H110M-STX motherboard?
The motherboard is equipped with one VGA port, one HDMI port, and one DisplayPort for connecting various displays.
Does this motherboard support Intel Turbo Boost Technology?
Yes, this motherboard supports Intel Turbo Boost 2.0 technology, enhancing processor performance.
