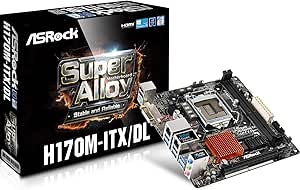

ASRock H170M-ITX/DL Mini ITX DDR4 Motherboard
★★★★★
Compact Power for Your Custom BuildThe ASRock H170M-ITX/DL Motherboard is a Mini ITX form factor board designed for 6th Generation Intel Core processors. Perfect for small form factor builds, it offers a range of features and connectivity options.Key Features: Supports 6th Generation Intel Core P...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact Power for Your Custom Build
The ASRock H170M-ITX/DL Motherboard is a Mini ITX form factor board designed for 6th Generation Intel Core processors. Perfect for small form factor builds, it offers a range of features and connectivity options.
Key Features:
- Supports 6th Generation Intel Core Processors (Socket 1151)
- Digi Power, 6 Power Phase Design
- Supports Dual Channel DDR4 2133
- 1 PCIe 3.0 x16, 1 Vertical Half-size Mini-PCIe
- 8 USB 3.0 (2 Front, 6 Rear)
- 4 SATA3, 1 mSATA
- Supports Full Spike Protection, ASRock Live Update & APP Shop
Key Features
Supports 6th Generation Intel Core Processors (Socket 1151)
4 SATA3, 1 mSATA
1 PCIe 3.0 x16, 1 Vertical Half-size Mini-PCIe
Dual LAN : Intel I219V + Realtek RTL8111H
Specifications
Form Factor
Mini ITX
CPU Socket
LGA 1151
Supported Processors
6th Generation Intel Core Processors
SATA Ports
4 x SATA3
M.2/mSATA Slots
1 x mSATA
PCIe Slots
1 x PCIe 3.0 x16, 1 x Vertical Half-size Mini-PCIe
LAN Controllers
Intel I219V, Realtek RTL8111H
Memory Type
DDR4
Pros & Cons
👍 Pros
- Designed to support 6th Generation Intel Core Processors, providing compatibility with modern CPUs.
- Features a compact Mini ITX form factor, ideal for small-form-factor PC builds.
- Equipped with four SATA3 ports, offering ample connectivity for multiple storage devices.
- Includes one mSATA slot, providing an option for compact SSD storage solutions.
- Offers dual LAN connectivity with both Intel I219V and Realtek RTL8111H controllers for reliable networking.
- Features a PCIe 3.0 x16 slot for dedicated graphics cards, enhancing system visual capabilities.
👎 Cons
- The Mini ITX form factor limits the number of expansion slots available for future upgrades.
- Only includes one PCIe 3.0 x16 slot, which means it cannot support multiple graphics cards.
- With just one mSATA slot, users might find storage expansion options somewhat limited compared to boards with more M.2 slots.
- Supports only 6th Generation Intel Core Processors, lacking compatibility with newer generations.
- The onboard graphics solution is not specified, potentially requiring a dedicated GPU for intensive tasks.
Frequently Asked Questions
What types of processors are compatible with the ASRock H170M-ITX/DL?
The ASRock H170M-ITX/DL motherboard supports 6th Generation Intel Core Processors with the Socket 1151 interface.
How many storage drives can be connected to this motherboard?
This motherboard offers four SATA3 ports for traditional hard drives or SSDs, along with one mSATA slot for a compact solid-state drive.
Does the ASRock H170M-ITX/DL support dual network connections?
Yes, the ASRock H170M-ITX/DL features dual LAN, powered by both Intel I219V and Realtek RTL8111H controllers, providing redundant or versatile networking options.
What expansion slots are available on this Mini ITX motherboard?
The motherboard includes one PCIe 3.0 x16 slot for a graphics card and one vertical half-size Mini-PCIe slot for additional expansion.
Is this motherboard suitable for building a small form factor PC?
Yes, its Mini ITX form factor makes the ASRock H170M-ITX/DL an excellent choice for compact or small form factor PC builds.
