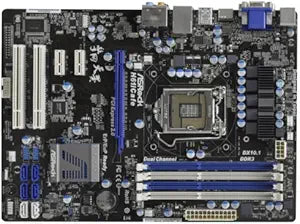

ASRock H61ICAFE Intel H61 Socket 1155 Motherboard
★★★★★
Build Your Dream PC with Reliable PerformanceThe ASRock H61ICAFE Motherboard provides a solid foundation for your custom-built PC. Supporting Intel Socket 1155 processors and featuring SATA3 & USB 3.0, this ATX motherboard offers reliable performance and essential connectivity options. Specif...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your Dream PC with Reliable Performance
The ASRock H61ICAFE Motherboard provides a solid foundation for your custom-built PC. Supporting Intel Socket 1155 processors and featuring SATA3 & USB 3.0, this ATX motherboard offers reliable performance and essential connectivity options.
Specifications:
- Socket: 1155
- Chipset: Intel H61
- Storage: SATA3
- Connectivity: USB 3.0
- Form Factor: ATX
Key Features
CPU: Socket 1155 Support 2nd Generation Intel Core i7/i5/i3 processors; Supports K-Series unlocked CPU; Supports Intel Turbo Boost 2.0 Technology; Supports Hyper-Threading Technology
Chipset: Intel H61
Memory: 4x 240pin DDR3 1333/1066 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity Upto 16GB
Slots: 1x PCI-Express 2.0 x16 Slot; 2x PCI-Express 2.0 x1 Slots; 2x PCI Slots
SATA: 2x SATA3 Ports, 4x SATA2 Ports
CPU: Socket 1155 Support 2nd Generation Intel Core i7/i5/i3 processors; Supports K-Series unlocked CPU; Supports Intel Turbo Boost 2.0 Technology; Supports Hyper-Threading Technology
Chipset: Intel H61
Memory: 4x 240pin DDR3 1333/1066 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity Upto 16GB
Slots: 1x PCI-Express 2.0 x16 Slot; 2x PCI-Express 2.0 x1 Slots; 2x PCI Slots
SATA: 2x SATA3 Ports, 4x SATA2 Ports
Audio: Realtek ALC887 7.1-Channel HD Audio CODEC
Video: Intel HD 2000/3000 Graphics Controller, w/ 1759MB shared memory; Supports Pixel Shader 4.1, DirectX 10.1
LAN: Atheros AR8151 PCI-Express x1 Gigabit Ethernet Controller, Supports Wake-On-LAN
Specifications
CPU Socket
Socket 1155
Supported CPUs
2nd Generation Intel Core i7/i5/i3 processors, K-Series unlocked CPU
Chipset
Intel H61
Memory Slots
4x 240pin DDR3 DIMMs
Memory Type
DDR3 1333/1066
Max Memory Capacity
16GB
PCI-Express x16 Slots
1x PCI-Express 2.0 x16
PCI-Express x1 Slots
2x PCI-Express 2.0 x1
PCI Slots
2x PCI
SATA3 Ports
2
SATA2 Ports
4
Audio Codec
Realtek ALC887 7.1-Channel HD Audio
Integrated Graphics
Intel HD 2000/3000 Graphics
LAN Controller
Atheros AR8151 Gigabit Ethernet
Pros & Cons
👍 Pros
- Supports 2nd Generation Intel Core i7/i5/i3 processors, including K-Series unlocked CPUs, offering versatility for CPU choices.
- Features Intel Turbo Boost 2.0 and Hyper-Threading Technology support, enhancing CPU performance for demanding applications.
- Equipped with four 240-pin DDR3 DIMM slots, allowing for up to 16GB of dual-channel, non-ECC/un-buffered memory.
- Provides a good selection of expansion slots including one PCI-Express 2.0 x16, two PCI-Express 2.0 x1, and two PCI slots.
- Offers diverse storage options with two SATA3 ports and four SATA2 ports for connecting various drives.
- Integrates Realtek ALC887 7.1-Channel HD Audio CODEC for quality audio output.
- Includes an Atheros AR8151 PCI-Express x1 Gigabit Ethernet Controller with Wake-On-LAN support for robust network connectivity.
👎 Cons
- Only supports 2nd Generation Intel Core processors, limiting compatibility with newer CPU architectures.
- Max memory capacity is 16GB DDR3, which might be insufficient for very high-end or future-proofed systems.
- The PCI-Express slots are 2.0 standard, not the newer 3.0 or 4.0, which could impact performance of modern graphics cards.
- Integrated Intel HD 2000/3000 Graphics with 1759MB shared memory may not be adequate for intensive gaming or professional graphic design without a dedicated GPU.
- Utilizes DDR3 memory, which is an older standard compared to current DDR4 or DDR5 RAM.
Frequently Asked Questions
What generation of Intel processors does this motherboard support?
This ASRock H61ICAFE motherboard supports 2nd Generation Intel Core i7, i5, and i3 processors.
What is the maximum amount of RAM this motherboard can accommodate?
This motherboard can support a maximum of 16GB of DDR3 memory across its four DIMM slots.
Does this motherboard support SATA 6Gb/s drives?
Yes, it features two SATA3 ports which support SATA 6Gb/s, alongside four SATA2 ports.
What kind of graphics does this motherboard offer?
It integrates Intel HD 2000/3000 Graphics Controller, supporting Pixel Shader 4.1 and DirectX 10.1, with up to 1759MB of shared memory.
Are there PCI-Express slots for adding a dedicated graphics card?
Yes, there is one PCI-Express 2.0 x16 slot available for a dedicated graphics card.
Does this motherboard come with built-in Wi-Fi?
No, built-in Wi-Fi is not specified; it features an Atheros AR8151 PCI-Express x1 Gigabit Ethernet Controller for wired networking.
Can this motherboard utilize K-Series unlocked Intel CPUs for overclocking?
Yes, this ASRock H61ICAFE motherboard explicitly states support for K-Series unlocked CPUs.
