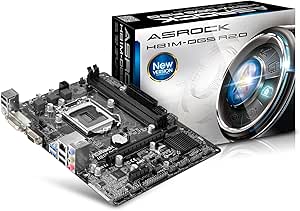

ASRock H81M-DGS R2.0 Micro ATX Motherboard
★★★★★
USB 3.0USB 2.0
Compact Performance with the ASRock H81M-DGS R2.0 Motherboard The ASRock H81M-DGS R2.0 is a Micro ATX motherboard designed for Intel LGA 1150 processors. It features DDR3 memory support, SATA3 and USB 3.0 ports, and solid capacitors for enhanced durability and stable performance. Ideal for build...
$79.50*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact Performance with the ASRock H81M-DGS R2.0 Motherboard
The ASRock H81M-DGS R2.0 is a Micro ATX motherboard designed for Intel LGA 1150 processors. It features DDR3 memory support, SATA3 and USB 3.0 ports, and solid capacitors for enhanced durability and stable performance. Ideal for building a reliable and efficient system in a compact form factor.
Detailed Specifications:
- Form Factor: MicroATX
- Chipset: Intel H81
- Memory: 2x DDR3-1600/1333/1066 DIMM Slots, Max 16GB
- Slots: 1x PCI-Express 2.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot
- SATA: 2x SATA3 Ports, 2x SATA2 Ports
- Ports: 2x USB 3.0, 8x USB 2.0, VGA, DVI-D, RJ45, Audio I/O
- Power Connector: 24pin ATX, 4pin 12V
Key Features
Form Factor: MicroATX
Chipset: Intel H81
Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB
Slots: 1x PCI-Express 2.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot
SATA: 2x SATA3 Ports, 2x SATA2 Ports
Ports: 2x USB 3.0 Ports, 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks
Power Connector: 1x 24pin ATX Power Connector, 1x 4pin 12V Power Connector
Specifications
Form Factor
MicroATX
Chipset
Intel H81
Memory Slots
2x DDR3 DIMM
Memory Type
DDR3-1600/ 1333/ 1066
Memory Channel
Dual Channel
Max Memory Capacity
16GB
PCI-Express x16 Slots
1x PCI-Express 2.0 x16
PCI-Express x1 Slots
1x PCI-Express 2.0 x1
SATA3 Ports
2
SATA2 Ports
2
USB 3.0 Ports (Rear)
2
USB 2.0 Ports
8 (4 rear, 4 via headers)
Video Outputs
1x VGA Port, 1x DVI-D Port
LAN Port
1x RJ45
Audio Jacks
Yes
PS/2 Ports
1x Keyboard/Mouse
ATX Power Connector
1x 24pin
12V Power Connector
1x 4pin
Pros & Cons
👍 Pros
- Supports a maximum memory capacity of 16GB across two DDR3 DIMM slots, suitable for various computing needs.
- Features a MicroATX form factor, making it suitable for compact PC builds without sacrificing essential connectivity.
- Offers a good selection of ports including USB 3.0, USB 2.0, VGA, DVI-D, and LAN, for versatile peripheral and display connections.
- Equipped with two SATA3 ports and two SATA2 ports, providing flexible storage options for both newer and older drives.
- Includes PCI-Express 2.0 x16 and x1 slots, allowing for the addition of a dedicated graphics card and other expansion cards.
👎 Cons
- The Intel H81 chipset is an older generation, meaning it may lack features found in more modern chipsets.
- Supports only DDR3 memory, which is an older standard compared to current DDR4 or DDR5 RAM, potentially limiting upgrade paths.
- Max memory capacity of 16GB across two slots might be limiting for users requiring extensive RAM for professional applications.
- The PCI-Express 2.0 standard for expansion slots is older, which could limit the bandwidth for high-end modern graphics cards.
- Only includes two USB 3.0 ports on the rear I/O, which might be insufficient for users with multiple high-speed USB peripherals.
Frequently Asked Questions
What is the form factor of the ASRock H81M-DGS R2.0 Motherboard?
The ASRock H81M-DGS R2.0 Motherboard features a MicroATX form factor, making it suitable for compact system builds.
What type of memory does this motherboard support?
This motherboard supports DDR3-1600/1333/1066 DIMM memory in dual channel configuration, with a maximum capacity of 16GB across two slots.
How many SATA ports are available on this motherboard?
The ASRock H81M-DGS R2.0 offers two SATA3 ports and two SATA2 ports for connecting storage devices.
Does this motherboard support dedicated graphics cards?
Yes, it includes one PCI-Express 2.0 x16 slot, allowing for the installation of a dedicated graphics card.
What are the available video output ports on the rear I/O panel?
The rear I/O panel includes one VGA Port and one DVI-D Port for display connectivity.
How many USB 3.0 ports are present on the rear of the motherboard?
There are two USB 3.0 ports located on the rear I/O panel of the ASRock H81M-DGS R2.0 Motherboard.
Can I connect older PS/2 devices to this motherboard?
Yes, the motherboard includes a combo PS/2 Keyboard/Mouse Port for connecting legacy peripherals.
