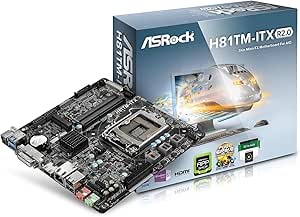

ASRock H81TM-ITX R2.0 Mini-ITX DDR3 Motherboard
★★★★★
Compact and Versatile: ASRock Mini-ITX Motherboard H81TM-ITX R2.0 Maximize space and performance with the ASRock H81TM-ITX R2.0 Mini-ITX Motherboard. Designed for compact chassis, this motherboard supports LGA 1150 processors and DDR3 memory, offering a unique DC-In jack design for efficient powe...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact and Versatile: ASRock Mini-ITX Motherboard H81TM-ITX R2.0
Maximize space and performance with the ASRock H81TM-ITX R2.0 Mini-ITX Motherboard. Designed for compact chassis, this motherboard supports LGA 1150 processors and DDR3 memory, offering a unique DC-In jack design for efficient power usage and seamless connectivity. Perfect for building a personal cloud with easy remote access.
Key Features:
- Form Factor: Mini-ITX
- Socket: LGA 1150
- Memory: DDR3 1066
- DC-In Jack: Supports 19V power adapter (DC Adapter not included)
- Personal Cloud: Orbweb Personal for media management
- Remote Wake Up: Over the internet
- App Shop: AS Rock APP Shop for easy system optimization
Key Features
LGA1150
Chipset: Intel H81
Memory: 2x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 16GB
Slots: 1x PCI-Express 2.0 x4 Slot, 1x Half Mini-PCI Express Slot
SATA: 2x SATA3 Ports
LAN: Giga PHY Intel I218V Gigabit Ethernet Controller
Specifications
Processor Socket
LGA1150
Chipset
Intel H81
Memory Type
DDR3
Memory Speed
1600/1333/1066 MHz
Memory Slots
2x DIMM
Max Memory Capacity
16GB
PCI-Express Slots
1x PCI-Express 2.0 x4
Mini-PCI Express Slots
1x Half Mini-PCI Express
SATA Ports
2x SATA3
LAN Controller
Giga PHY Intel I218V Gigabit Ethernet
Pros & Cons
👍 Pros
- Supports LGA1150 processors, providing a widely compatible platform for various Intel CPUs.
- Equipped with two DDR3 DIMM slots, allowing for a maximum of 16GB RAM for efficient multitasking.
- Features a Giga PHY Intel I218V Gigabit Ethernet Controller for reliable and fast network connectivity.
- Includes two SATA3 ports, offering modern storage connectivity options for SSDs and HDDs.
- Offers a PCI-Express 2.0 x4 slot for expanding functionality with compatible add-in cards.
👎 Cons
- Limited to a maximum of 16GB DDR3 RAM, which might be restrictive for very demanding applications.
- Only provides two DDR3 DIMM slots, offering less expandability compared to motherboards with four slots.
- Features only one PCI-Express 2.0 x4 slot, limiting options for multiple high-bandwidth expansion cards.
- Includes just two SATA3 ports, which could be insufficient for users requiring extensive internal storage.
- The Intel H81 chipset is an older generation, potentially lacking support for newer CPU features.
Frequently Asked Questions
What type of processor socket does the ASRock H81TM-ITX R2.0 motherboard use?
The ASRock H81TM-ITX R2.0 motherboard utilizes the LGA1150 socket, compatible with various Intel processors designed for this platform.
What is the maximum amount of RAM supported by this motherboard?
This motherboard supports a maximum capacity of 16GB of DDR3 RAM across its two DIMM slots, configured for dual-channel operation.
Are there multiple PCI-Express slots for expansion on this Mini-ITX motherboard?
The ASRock H81TM-ITX R2.0 includes one PCI-Express 2.0 x4 slot and one Half Mini-PCI Express slot for expansion purposes.
How many SATA ports are available on this ASRock H81TM-ITX R2.0 motherboard?
The motherboard features two SATA3 ports, providing options for connecting high-speed storage devices like SSDs and traditional hard drives.
What kind of network connectivity does the ASRock H81TM-ITX R2.0 offer?
It is equipped with a Giga PHY Intel I218V Gigabit Ethernet Controller, ensuring robust and fast wired network connections.
