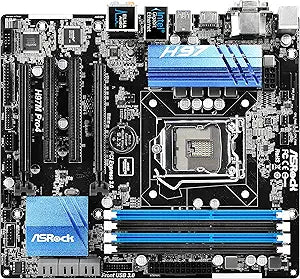

ASRock H97M PRO4 Micro ATX DDR3 LGA 1150 Motherboard
★★★★★
USB 3.0USB 2.0
Build Your High-Performance Micro ATX System The ASRock H97M PRO4 is a Micro ATX motherboard designed to support 5th, New 4th, and 4th Generation Intel Core processors. With its robust feature set, including multiple expansion slots, SATA ports, and USB connectivity, this motherboard provides a ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your High-Performance Micro ATX System
The ASRock H97M PRO4 is a Micro ATX motherboard designed to support 5th, New 4th, and 4th Generation Intel Core processors. With its robust feature set, including multiple expansion slots, SATA ports, and USB connectivity, this motherboard provides a solid foundation for building a versatile and powerful system.
Specifications:
- CPU Support: 5th/ New 4th/ 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Memory: 4x DDR3-1600/ 1333/ 1066 DIMM Slots, up to 32GB
- Expansion Slots: 1x PCI-Express 3.0 x16, 1x PCI-Express 2.0 x16 (x4 mode), 2x PCI
- SATA: 6x SATA3 Ports, RAID 0/1/5/10 support
- USB: 6x USB 3.0 (4 rear, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)
- Rear Panel: PS/2, VGA, DVI-D, HDMI, Optical SPDIF Out, RJ45 LAN, Audio I/O Jacks
Key Features
Supports 5th/ New 4th/ 4th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
Memory: 4x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (run at x4), 2x PCI Slots
SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Combo Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1 x Optical SPDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
Specifications
Form Factor
Micro ATX
Socket Type
LGA 1150
Supported Processors
5th/New 4th/4th Gen Intel Core i7/i5/i3/Pentium/Celeron
Memory Type
DDR3
Memory Slots
4x DIMM
Max Memory Capacity
32GB
PCI-Express 3.0 x16 Slots
1
PCI-Express 2.0 x16 Slots
1 (runs at x4)
PCI Slots
2
SATA3 Ports
6
RAID Support
Yes (0, 1, 5, 10)
USB 3.0 Ports
6 (4 rear, 2 via header)
USB 2.0 Ports
6 (2 rear, 4 via headers)
Video Outputs
VGA, DVI-D, HDMI
Audio Output
Optical SPDIF Out, Audio I/O Jacks
LAN Port
1x RJ45
PS/2 Port
1 (Keyboard/Mouse Combo)
Pros & Cons
👍 Pros
- Supports a wide range of Intel processors, including 5th, New 4th, and 4th Generation Core i7/i5/i3/Pentium/Celeron CPUs
- Offers four DDR3 DIMM slots, allowing for a substantial 32GB maximum memory capacity
- Includes multiple expansion slots, with one PCI-Express 3.0 x16 and one PCI-Express 2.0 x16 slot for graphics cards
- Features six SATA3 ports with RAID support, providing flexible and robust storage solutions
- Provides a comprehensive array of connectivity options, including USB 3.0, USB 2.0, VGA, DVI-D, HDMI, and LAN ports
👎 Cons
- Utilizes DDR3 memory, which is an older standard compared to newer DDR4 or DDR5 RAM
- Only supports older generation Intel processors, limiting upgrade paths to more current CPU architectures
- The second PCI-Express x16 slot operates at a slower x4 speed, potentially bottlenecking certain graphics cards
- Lack of built-in Wi-Fi and Bluetooth requires separate adapter purchases for wireless connectivity
- Micro ATX form factor might offer fewer expansion slots compared to a full ATX motherboard
Frequently Asked Questions
What types of processors are compatible with the ASRock H97M PRO4 motherboard?
The ASRock H97M PRO4 supports 5th, New 4th, and 4th Generation Intel Core i7, i5, i3, Pentium, and Celeron processors.
How much RAM can this motherboard support?
This motherboard has four DDR3 DIMM slots, allowing for a maximum memory capacity of 32GB, supporting speeds of 1600/1333/1066 MHz.
Does the ASRock H97M PRO4 support RAID configurations for storage?
Yes, the motherboard includes six SATA3 ports that support RAID 0, 1, 5, and 10 configurations for enhanced data storage and redundancy.
What kind of expansion slots are available on this motherboard?
The ASRock H97M PRO4 features one PCI-Express 3.0 x16 slot, one PCI-Express 2.0 x16 slot (running at x4), and two standard PCI slots for various expansion cards.
What video output options does this motherboard offer?
For video output, the ASRock H97M PRO4 provides a VGA port, a DVI-D port, and an HDMI port, allowing for connection to different display types.
