ASRock

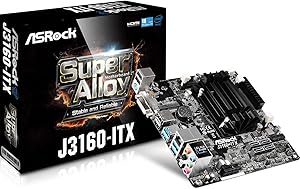

ASRock J3160-ITX 16GB RAM Motherboard CPU Combo
★★★★★
16GB RAMUSB 3.0USB 2.0DisplayPort
Build Your Compact and Efficient System Introducing the ASRock J3160-ITX Motherboard & CPU Combo. This Mini-ITX board features an integrated Intel Celeron J3160 processor and supports up to 16GB of RAM, making it ideal for compact, low-power systems. Specifications: Brand: ASRock ...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your Compact and Efficient System
Introducing the ASRock J3160-ITX Motherboard & CPU Combo. This Mini-ITX board features an integrated Intel Celeron J3160 processor and supports up to 16GB of RAM, making it ideal for compact, low-power systems.
Specifications:
- Brand: ASRock
- Model: J3160-ITX
- CPU: Intel Celeron J3160 (up to 2.24 GHz, Quad-Core)
- Memory: 2x DDR3/DDR3L SODIMM slots, Max 16GB
- Slots: 1x PCI-Express 2.0 x1, 1x Half-size Mini-PCI Express
- SATA: 4x SATA3 Ports
- Audio: Realtek ALC892 7.1 Channel HD Audio
- Video: Integrated Intel HD Graphics 400
- LAN: Realtek RTL8111GR Gigabit Ethernet
- Form Factor: Mini-ITX (6.7 x 6.7 inches / 17.0 x 17.0 cm)
Key Features
CPU (included): Intel Celeron J3160 Processor (up to 2.24 GHz, Quad-Core)
Memory: 2x DDR3/DDR3L-1600/1066 SODIMM slots, dual channel, NON-ECC, Unbuffered, max capacity of 16GB
Slots: 1x PCI-Express 2.0 x1 slot, 1x half-size mini-pci Express slot
LAN: Realtek rtl8111gr PCI-Express x1 Gigabit Ethernet controller
Ports: 6x USB 3.0 ports (4 rear, 2 via header), 6x USB 2.0 ports (2 rear, 4 via headers), 1x PSU/2 keyboard/mouse port, 1x DVI-D port, 1x HDMI port, 1x DisplayPort, 1x RJ45 LAN port, audio I/O jacks
Specifications
CPU Included
Intel Celeron J3160 Processor
CPU Cores
Quad-Core
CPU Max Frequency
Up to 2.24 GHz
Memory Type
DDR3/DDR3L-1600/1066 SODIMM
Memory Slots
2 (dual channel, NON-ECC, Unbuffered)
Max Memory Capacity
16GB
PCI-Express Slots
1x PCI-Express 2.0 x1
Mini-PCI Express Slots
1x half-size mini-pci Express
LAN Controller
Realtek rtl8111gr PCI-Express x1 Gigabit Ethernet
USB 3.0 Ports
6 (4 rear, 2 via header)
USB 2.0 Ports
6 (2 rear, 4 via headers)
Keyboard/Mouse Port
1x PSU/2
Video Outputs
1x DVI-D, 1x HDMI, 1x DisplayPort
LAN Port
1x RJ45
Audio Jacks
Audio I/O
Pros & Cons
👍 Pros
- Comes with an integrated Intel Celeron J3160 Quad-Core Processor, eliminating the need for a separate CPU purchase.
- Supports up to 16GB of DDR3/DDR3L SODIMM RAM, offering flexibility for memory upgrades.
- Features a Realtek RTL8111GR Gigabit Ethernet controller for stable and fast wired network connectivity.
- Provides a comprehensive selection of 6 USB 3.0 ports and 6 USB 2.0 ports for extensive peripheral support.
- Includes multiple video outputs: DVI-D, HDMI, and DisplayPort, allowing for flexible display configurations.
👎 Cons
- The Intel Celeron J3160 processor, while integrated, is a lower-power CPU which may not be suitable for demanding applications.
- Uses DDR3/DDR3L memory, which is an older standard and may limit access to newer, faster RAM options.
- Only features one PCI-Express 2.0 x1 slot, severely limiting options for expansion cards like dedicated graphics or specialized controllers.
- The half-size mini-PCI Express slot has limited applications, primarily suitable for Wi-Fi cards and similar compact modules.
- The max capacity of 16GB RAM, while adequate for many uses, is lower than what some modern systems might require for heavy multitasking.
Frequently Asked Questions
What processor is integrated into the ASRock J3160-ITX motherboard?
The ASRock J3160-ITX motherboard comes with an integrated Intel Celeron J3160 Quad-Core Processor, capable of reaching up to 2.24 GHz.
What type of RAM does this motherboard support and what is the maximum capacity?
This motherboard supports DDR3/DDR3L-1600/1066 SODIMM memory and has a maximum capacity of 16GB across two dual-channel slots.
How many USB ports are available on this motherboard?
The motherboard provides a total of 6 USB 3.0 ports (4 on the rear panel, 2 via an internal header) and 6 USB 2.0 ports (2 rear, 4 via internal headers).
Does the ASRock J3160-ITX have multiple display outputs?
Yes, it offers versatile video outputs including a DVI-D port, an HDMI port, and a DisplayPort for connecting various monitors.
What kind of network connectivity does this motherboard provide?
It features a Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet controller, ensuring fast and reliable wired network connections.
Can I add a dedicated graphics card to this motherboard?
The motherboard includes one PCI-Express 2.0 x1 slot, which is generally not suitable for dedicated graphics cards but can be used for other low-bandwidth expansion cards.
Is this motherboard designed for small form factor PCs?
Yes, indicated by "ITX" in its name, the ASRock J3160-ITX is designed for mini-ITX form factor systems, making it suitable for compact builds.
