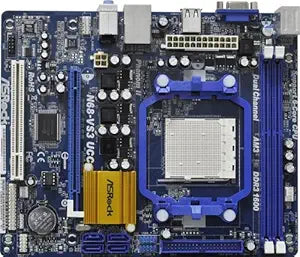

ASRock N68-VS3 UCC Micro ATX AM3 Motherboard
★★★★★
USB 2.0
Build a Reliable System with the ASRock N68-VS3 UCC Motherboard The ASRock N68-VS3 UCC is a Micro ATX motherboard designed to support AMD AM3 processors. Featuring the nVidia GeForce 7025 & nForce 630a chipsets, this motherboard offers a solid foundation for building a dependable and efficien...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build a Reliable System with the ASRock N68-VS3 UCC Motherboard
The ASRock N68-VS3 UCC is a Micro ATX motherboard designed to support AMD AM3 processors. Featuring the nVidia GeForce 7025 & nForce 630a chipsets, this motherboard offers a solid foundation for building a dependable and efficient computer system.
Specifications:
- Form Factor: Micro ATX
- Chipset: nVidia GeForce 7025 & nForce 630a
- Socket Type: AM3
- Memory Type: DDR3
- Memory Speed: 1600 MHz
Key Features
CPU: Socket AM3 Support AMD Phenom II X6/X4/X3/X2 (except 920 /940) /Athlon II X4 /X3 /X2 / Sempron processors; Supports Six-Core CPU; Supports AMD's Cool 'n' Quiet Technology; Supports Untied Overclocking
Technology; Supports Hyper-Transport Technology; FSB 2.0 GT/s; Chipset: nVidia GeForce 7025 & nForce 630a; Memory: 2x 240pin DDR3-1600/1333/1066/800 DIMMs, Dual Channel, Non-ECC/Un-buffered, Max Capacity Upto 8GB
Slots: 1x PCI-Express x16 Slot; 1x PCI Slot; IDE/SATA: 1x ATA-133 Channel; 4x SATA2 Ports, Support RAID 0/ 1/ 0+1/ 5/ JBOD; Audio: VIA VT1705 5.1 Channel High Definition Audio CODEC
Video: nVidia GeForce 7025 Graphic Controller, Max Shared Memory 256MB; Support DirectX 9.0 and Pixel Shader 3.0; LAN: Realtek PHY RTL8201EL 10/100 Fast Ethernet Controller, Supports Wake-On-LAN
Ports: 8x USB 2.0 Ports (4 rear, 4 by headers); 2x PS/2 Ports; 1x VGA Port; 1x RJ45 LAN Port; Audio I/O Jacks; Power Connector: 1x 24pin main power, 1x 4pin CPU power
Specifications
CPU Socket
AM3
Supported CPUs
AMD Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2, Sempron
Chipset
nVidia GeForce 7025 & nForce 630a
Memory Slots
2x 240pin DDR3 DIMMs
Max Memory Capacity
8GB
Memory Speeds Supported
1600/1333/1066/800 MHz
PCI-Express x16 Slots
1
PCI Slots
1
IDE Channels
1x ATA-133
SATA Ports
4x SATA2 (RAID 0/1/0+1/5/JBOD support)
Audio Codec
VIA VT1705 5.1 Channel HD Audio
Integrated Video
nVidia GeForce 7025 (Max 256MB shared)
LAN Controller
Realtek PHY RTL8201EL 10/100 Fast Ethernet
USB 2.0 Ports
8 (4 rear, 4 by headers)
PS/2 Ports
2
Video Output
1x VGA Port
Pros & Cons
👍 Pros
- Supports a wide range of AMD Phenom II and Athlon II processors for flexibility in CPU choice.
- Features AMD's Cool 'n' Quiet Technology, which helps manage system temperature and reduce noise.
- Equipped with Hyper-Transport Technology, enhancing communication speeds between components.
- Provides support for Untied Overclocking Technology, allowing advanced users to fine-tune performance.
- Offers a versatile storage configuration with 1x ATA-133 channel and 4x SATA2 ports supporting multiple RAID levels.
👎 Cons
- The nVidia GeForce 7025 integrated graphics are limited to a maximum shared memory of 256MB, restricting graphical performance.
- Memory capacity is capped at 8GB DDR3, which may be insufficient for modern demanding applications or extensive multitasking.
- Only two DIMM slots are available, limiting future memory expansion options for users.
- The 10/100 Fast Ethernet Controller is slower compared to modern Gigabit Ethernet standards, potentially bottlenecking network speeds.
- Lacks USB 3.0 ports, providing only USB 2.0 connectivity, which is slower for external device data transfer.
Frequently Asked Questions
What types of CPUs are compatible with the ASRock N68-VS3 UCC motherboard?
This motherboard supports Socket AM3 AMD Phenom II X6/X4/X3/X2 (excluding 920/940), Athlon II X4/X3/X2, and Sempron processors, including Six-Core CPUs.
What is the maximum amount of RAM this motherboard can support?
The ASRock N68-VS3 UCC motherboard can support a maximum of 8GB of DDR3 memory across its two DIMM slots.
Does this motherboard have integrated graphics?
Yes, it features an nVidia GeForce 7025 Graphic Controller with a maximum shared memory of 256MB, supporting DirectX 9.0 and Pixel Shader 3.0.
What kind of storage interfaces are available?
It includes one ATA-133 channel and four SATA2 ports, which support RAID 0, 1, 0+1, 5, and JBOD configurations.
What networking capabilities does this motherboard offer?
The motherboard is equipped with a Realtek PHY RTL8201EL 10/100 Fast Ethernet Controller, which supports Wake-On-LAN functionality.
How many USB 2.0 ports are on this motherboard?
There are eight USB 2.0 ports available, with four located on the rear panel and four accessible via internal headers.
Does it support overclocking features?
Yes, this motherboard supports Untied Overclocking Technology, allowing users to adjust CPU and memory settings beyond default specifications.
