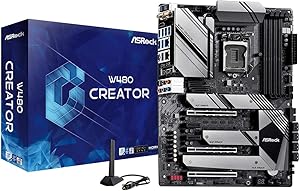

ASRock W480 CREATOR LGA1200 Intel ATX Motherboard
★★★★★
Thunderbolt 3PCIe Gen3
Empower Your Workstation with Uncompromising Performance The ASRock W480 Creator Motherboard is engineered to support the latest Intel Core and Xeon W processors, delivering exceptional performance and reliability for content creation and professional applications. With advanced features like 10G...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Empower Your Workstation with Uncompromising Performance
The ASRock W480 Creator Motherboard is engineered to support the latest Intel Core and Xeon W processors, delivering exceptional performance and reliability for content creation and professional applications. With advanced features like 10G LAN, WiFi 6, and support for high-speed memory, this motherboard empowers you to unleash your creative potential.Specifications
- CPU Support: 10th Gen and future generation Intel Core Processors and Xeon W Processors (Socket 1200), up to 10 Cores and 125W
- Chipset: Intel W480
- Memory: 4 x DDR4 DIMM Slots, Supports up to 128GB DDR4 4600+(OC)
- Expansion Slots:
- Graphics:
- Audio: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- LAN: 1 x 10 Gigabit LAN (AQUANTIA AQC107), 1 x 2.5 Gigabit LAN (Intel I225LM)
- Wireless: WiFi & Bluetooth
- Form Factor: ATX
Key Features
Supports 10th Gen and future generation Intel Core Processors / Xeon W Processors (WE3/WE2/WE1)(Socket 1200)
Supports DDR4 4600MHz+ (OC)
3 PCIe 3.0 x16, 2 PCIe 2.0 x1
8 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
2 Intel Thunderbolt 3 Type-C
Specifications
Socket Type
LGA1200
Processor Support
10th Gen & future Intel Core Processors / Xeon W Processors (WE3/WE2/WE1)
Memory Type
DDR4
Memory Speed (OC)
4600MHz+
PCIe 3.0 x16 Slots
3
PCIe 2.0 x1 Slots
2
SATA3 Ports
8
Ultra M.2 Slots
3 (1x PCIe Gen3 x4, 2x PCIe Gen3 x4 & SATA3)
Thunderbolt 3 Ports
2 (Type-C)
Form Factor
ATX
Pros & Cons
👍 Pros
- Supports a wide range of Intel processors, including 10th Gen Core and various Xeon W Processors (WE3/WE2/WE1) with Socket 1200.
- Offers robust memory support for DDR4 up to 4600MHz+ (OC), enabling high-speed RAM configurations for demanding tasks.
- Features multiple PCIe 3.0 slots (three x16) for extensive expansion with graphics cards, capture cards, or other high-bandwidth components.
- Provides diverse storage options with eight SATA3 ports and three Ultra M.2 slots (one PCIe Gen3 x4, two PCIe Gen3 x4 & SATA3), supporting fast NVMe SSDs.
- Includes two Intel Thunderbolt 3 Type-C ports, offering high-speed data transfer, display connectivity, and power delivery capabilities.
👎 Cons
- The motherboard supports only 10th Gen and future Intel processors, meaning older generation CPUs are not compatible.
- Advanced DDR4 4600MHz+ speeds are achieved through overclocking (OC), which may require careful configuration and compatible hardware.
- While offering three PCIe 3.0 x16 slots, the actual bandwidth distribution in multi-GPU setups might be limited by the CPU's PCIe lanes.
- The two PCIe 2.0 x1 slots are an older standard, which could limit the performance of modern peripherals connected to them.
- Specific details on networking capabilities, such as integrated Wi-Fi or Ethernet speed, are not provided in the features.
Frequently Asked Questions
Which processors are compatible with the ASRock W480 CREATOR motherboard?
This motherboard supports 10th Gen and future generation Intel Core Processors as well as Xeon W Processors (WE3/WE2/WE1) that utilize the LGA1200 socket.
What is the maximum memory speed supported by this motherboard?
The ASRock W480 CREATOR motherboard supports DDR4 memory speeds of 4600MHz+ when overclocked (OC).
How many PCIe 3.0 x16 slots are available on this motherboard?
There are three PCIe 3.0 x16 slots on this motherboard, providing ample expansion options for graphics cards or other high-bandwidth components.
What kind of storage options does the ASRock W480 CREATOR offer?
It provides extensive storage flexibility with eight SATA3 ports, one Ultra M.2 slot (PCIe Gen3 x4), and two additional Ultra M.2 slots (PCIe Gen3 x4 & SATA3).
Does this motherboard include Thunderbolt 3 connectivity?
Yes, the ASRock W480 CREATOR features two Intel Thunderbolt 3 Type-C ports for high-speed connectivity and versatile peripheral support.
