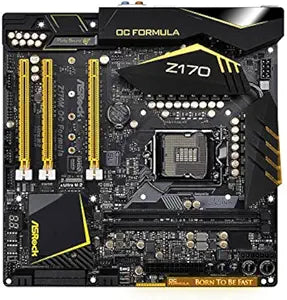

ASRock Z170M OC FORMULA DDR4 MicroATX Motherboard
★★★★★
Unlock Overclocking Potential with Advanced DesignThe ASRock Z170M OC Formula Motherboard is designed for overclocking enthusiasts seeking maximum performance. Featuring robust power delivery, DDR4 support, and multiple GPU configurations, this MicroATX motherboard is built for extreme performanc...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unlock Overclocking Potential with Advanced Design
The ASRock Z170M OC Formula Motherboard is designed for overclocking enthusiasts seeking maximum performance. Featuring robust power delivery, DDR4 support, and multiple GPU configurations, this MicroATX motherboard is built for extreme performance and stability.
Specifications:
- Brand: ASRock
- Model: Z170M OC FORMULA
- Socket Type: LGA1151
- Chipset: Intel Z170
- Memory Type: DDR4
- Multi-GPU Support: Quad CrossFireX & Quad SLI
- Form Factor: MicroATX
Key Features
Socket LGA1151
Chipset: Intel Z170
Slots: 3x PCI-Express 3.0 x16 Slots (run at x16,or x8/x8 or x8/x8/x4 modes)
Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology
SATA: 8x SATA3 Ports, Six Support RAID 0, 1, 5, 10; 2x SATA Express Ports
Specifications
Socket Type
LGA1151
Chipset
Intel Z170
PCI-Express Slots
3x PCI-Express 3.0 x16
Multi-Graphics Support
AMD Quad CrossFireX, CrossFireX, NVIDIA Quad SLI, SLI
SATA Ports
8x SATA3 (6 support RAID 0, 1, 5, 10)
SATA Express Ports
2x SATA Express
Form Factor
MicroATX
Memory Type
DDR4
Pros & Cons
👍 Pros
- Features an Intel Z170 Chipset, providing a reliable foundation for performance and compatibility.
- Supports Socket LGA1151, allowing for a range of compatible Intel processors.
- Equipped with three PCI-Express 3.0 x16 slots, enabling flexible multi-graphics card configurations.
- Supports both AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology for enhanced graphics performance.
- Includes eight SATA3 ports, with six supporting RAID 0, 1, 5, 10 for advanced storage configurations and data redundancy.
- Features two SATA Express ports, offering high-speed storage connectivity for compatible devices.
- Designed in a MicroATX form factor, which is suitable for building compact yet powerful systems.
- The "OC FORMULA" designation implies design considerations for overclocking enthusiasts, potentially offering enhanced stability and control.
👎 Cons
- The Socket LGA1151 is compatible with older generations of Intel processors, specifically 6th and 7th Gen, which may be a limitation for users seeking the latest CPU architectures.
- The MicroATX form factor, while compact, may offer fewer expansion slots or features compared to larger ATX motherboards.
- While it supports multi-graphics, the PCI-Express 3.0 x16 slots operate in x16, x8/x8 or x8/x8/x4 modes, with the latter configuration potentially limiting bandwidth for triple GPU setups.
- The Z170 chipset, being an older generation, may lack support for newer technologies such as NVMe PCIe 4.0 or USB 3.2 Gen 2x2.
- Specific RAM speed support for DDR4 is not detailed, which could be a factor for users looking to optimize memory performance.
Frequently Asked Questions
Which CPU socket does the ASRock Z170M OC FORMULA motherboard support?
The ASRock Z170M OC FORMULA motherboard is designed to support CPUs with Socket LGA1151.
Does this motherboard support multiple graphics cards?
Yes, it supports both AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology, allowing for multi-GPU setups.
How many SATA3 ports are available on this motherboard?
The motherboard features eight SATA3 ports, with six of them supporting RAID 0, 1, 5, and 10 configurations.
What form factor is this motherboard?
This motherboard comes in a MicroATX form factor, which is suitable for building more compact PC systems.
What type of memory does this motherboard use?
The ASRock Z170M OC FORMULA is designed to work with DDR4 memory.
Are there any high-speed storage options beyond standard SATA?
Yes, in addition to SATA3, it includes two SATA Express ports for enhanced storage connectivity.
