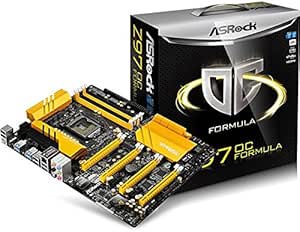

ASRock Z97 OC FORMULA LGA 1150 ATX Motherboard
★★★★★
USB 3.0USB 2.0
Unleash Overclocking Potential with the ASRock Z97 OC FORMULA Motherboard The ASRock Z97 OC FORMULA is engineered for enthusiasts seeking unparalleled performance and overclocking capabilities. Designed with premium components and advanced features, this ATX motherboard provides a solid foundatio...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash Overclocking Potential with the ASRock Z97 OC FORMULA Motherboard
The ASRock Z97 OC FORMULA is engineered for enthusiasts seeking unparalleled performance and overclocking capabilities. Designed with premium components and advanced features, this ATX motherboard provides a solid foundation for building a high-performance gaming or workstation PC.
Specifications:
- Form Factor: ATX
- Memory Type: DDR3
- Memory Speed: 1066
- Socket Type: LGA 1150
- Chipset: Intel Z97
- Multi-GPU Support: Quad CrossFireX & Quad SLI
- Storage: SATA3
- USB: USB3.0
- Networking: A&GbE
Key Features
Socket 1150
Chipset: Intel Z97
Memory: 4x DDR3-3400+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
Slots: 3x PCI-Express 3.0 x16 Slots (run at x16 or x8/x8, or x8/x4/x4), 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots
Multi-Graphics: Supports AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, SLI Technology
Ports: 8x USB 3.0 Ports (6 rear, 2 via header), 6x USB 2.0 Ports (4 rear, 2 via header), 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
Power Connector: 1x 24pin ATX Power Connector, 2x 8pin 12V Power Connectors, 1x PCI-Express Power Connector
Chipset: Intel Z97
Specifications
Brand
ASRock
Model Name
Z97 OC FORMULA
Socket
LGA 1150
Chipset
Intel Z97
Form Factor
ATX
Memory Slots
4x DDR3 DIMM
Max Memory Capacity
32GB
Memory Type
DDR3-3400+(OC)/ 2933(OC)/ 2800(OC)/ 2400(OC)/ 2133(OC)/ 1866(OC)/ 1600/ 1333/ 1066
PCI-Express 3.0 x16 Slots
3
PCI-Express 2.0 x16 Slots
1
PCI-Express 2.0 x1 Slots
2
USB 3.0 Ports
8 (6 rear, 2 via header)
USB 2.0 Ports
6 (4 rear, 2 via header)
PS/2 Port
1 (Mouse/Keyboard)
HDMI Port
1
Optical S/PDIF Out
1
RJ45 LAN Port
1
Audio Jacks
Yes
ATX Power Connector
1x 24pin
12V Power Connectors
2x 8pin
PCI-Express Power Connector
1
Multi-Graphics Support
AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX, CrossFireX, NVIDIA Quad SLI, SLI Technology
Pros & Cons
👍 Pros
- Supports multiple graphics configurations including AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX, CrossFireX, and NVIDIA Quad SLI, SLI Technology.
- Equipped with four DDR3 DIMM slots, supporting up to 32GB of Non-ECC, Unbuffered memory with speeds up to 3400+(OC) MHz.
- Features a robust array of connectivity with 8 USB 3.0 ports (6 rear, 2 via header) and 6 USB 2.0 ports (4 rear, 2 via header).
- Includes diverse expansion slots: three PCI-Express 3.0 x16 slots, one PCI-Express 2.0 x16 slot, and two PCI-Express 2.0 x1 slots.
- Offers high-definition audio connectivity with an Optical S/PDIF Out and standard Audio I/O Jacks.
- Provides dedicated power connectors including 24pin ATX, two 8pin 12V, and a PCI-Express power connector for stable power delivery.
👎 Cons
- Utilizes the LGA 1150 socket, which supports older generation Intel processors (Haswell/Broadwell) and is not compatible with newer CPU architectures.
- The memory support is limited to DDR3, making it incompatible with more modern and faster DDR4 or DDR5 RAM modules.
- The PCI-Express 2.0 slots are an older standard, which may bottleneck the performance of newer generation expansion cards if used.
- The maximum memory capacity of 32GB, while substantial for DDR3, may be a limitation for extreme workstation or server applications that require more.
- Only one HDMI port is mentioned for video output, which might be restrictive for users requiring multiple integrated display connections.
- The board is ATX form factor, meaning it will only fit in mid-tower or full-tower cases and not smaller form factor builds.
Frequently Asked Questions
What CPU sockets does this ASRock Z97 OC FORMULA motherboard support?
The ASRock Z97 OC FORMULA motherboard is designed to support CPUs with an LGA 1150 socket.
What type of memory is compatible with this motherboard?
This motherboard supports 4x DDR3 DIMM slots, configured for dual-channel operation, with a maximum capacity of 32GB.
Can this ASRock Z97 OC FORMULA motherboard support multiple graphics cards?
Yes, it supports various multi-graphics configurations including AMD Quad CrossFireX, 4-Way CrossFireX, 3-Way CrossFireX, CrossFireX, and NVIDIA Quad SLI, SLI Technology.
How many USB 3.0 ports are available on this motherboard?
The ASRock Z97 OC FORMULA motherboard features eight USB 3.0 ports in total, with six located on the rear panel and two accessible via an internal header.
What are the video output options on this motherboard?
This motherboard includes one HDMI port for video output connectivity.
What power connectors does this motherboard require?
The motherboard requires one 24-pin ATX power connector, two 8-pin 12V power connectors, and one PCI-Express power connector for operation.
