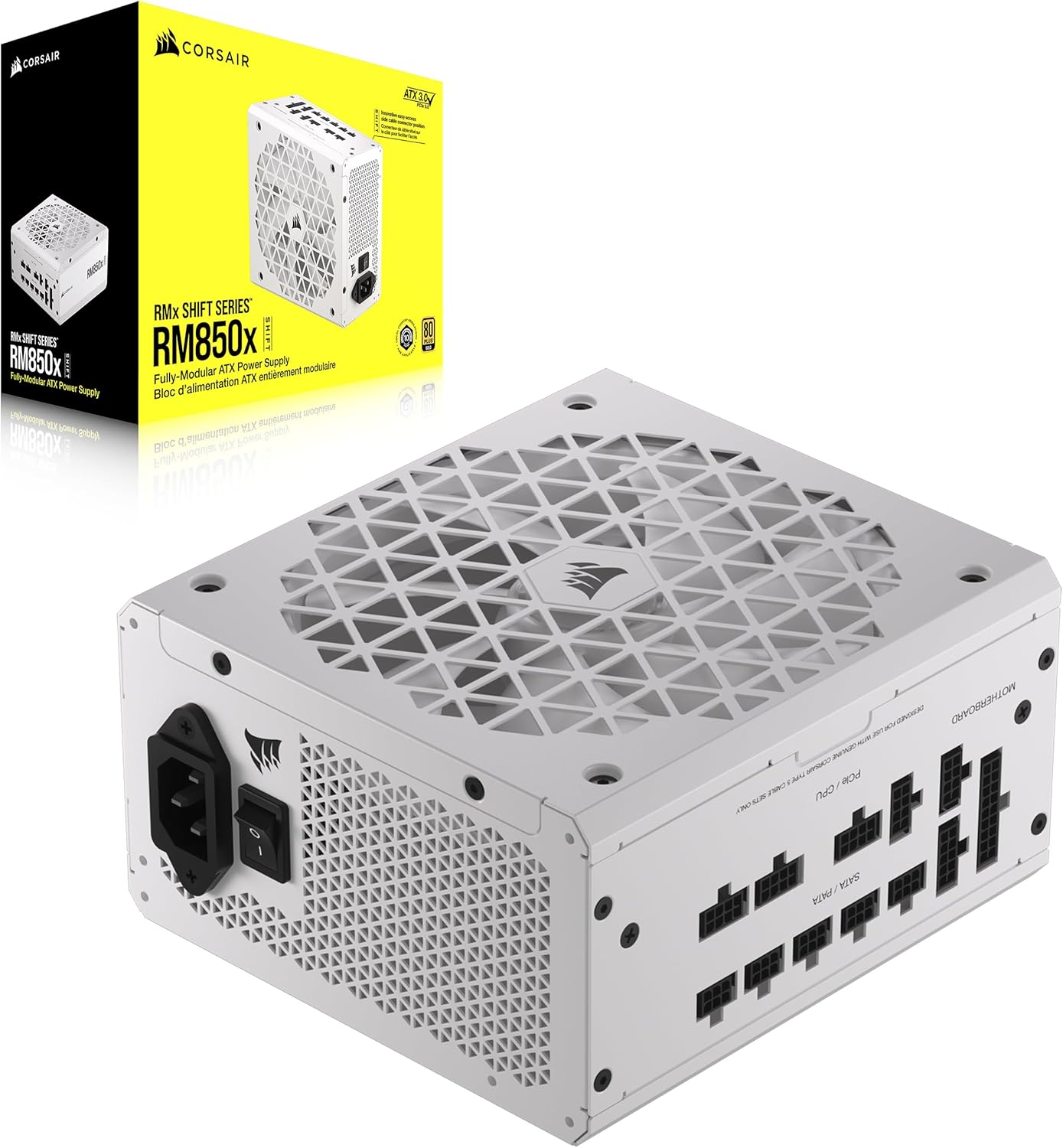

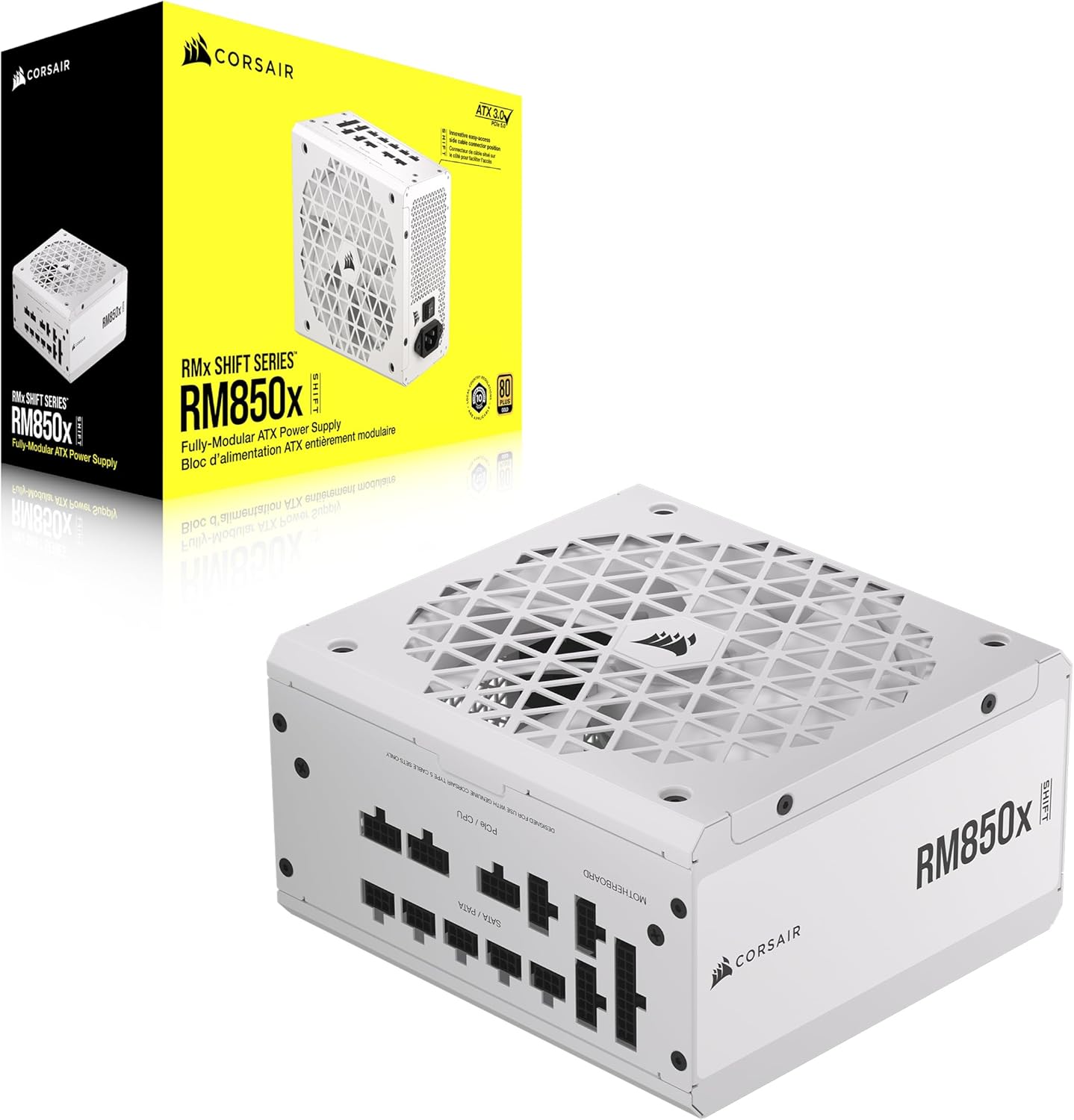

Corsair CP-9020274-NA RM850x Shift 850W White PSU

Name: Corsair CP-9020274-NA RM850x Shift 850W White PSU
Brand: Corsair
SKU: CP-9020274-NA

Overview

The Corsair RM850x SHIFT reimagines modular PSU cable management by relocating all modular connectors from the traditional rear position to the side of the unit. This design change means that once the PSU is installed in a case, the cable ports face an accessible direction rather than being pressed against the case wall or shroud. The result is noticeably easier cable installation and routing, particularly beneficial in mid-tower and full-tower builds where cable management space behind the motherboard tray is limited.

Beyond the SHIFT interface, the RM850x delivers 850 watts of continuous power at 80 PLUS Gold efficiency, using 100% Japanese 105°C-rated electrolytic capacitors for consistent voltage regulation and long-term durability. The unit is ATX 3.1 certified with PCIe Gen 5.1 support, meaning it is prepared for current-generation graphics cards and their transient power spike behavior. Cooling is handled by a 140mm fluid dynamic bearing fan with a carefully tuned fan curve that includes a zero-RPM mode at low loads, keeping the PSU virtually silent during everyday use. The fully modular Corsair Type 5 Gen 1 micro-fit cables are slimmer than traditional PSU cables, further aiding clean builds.

Key Features

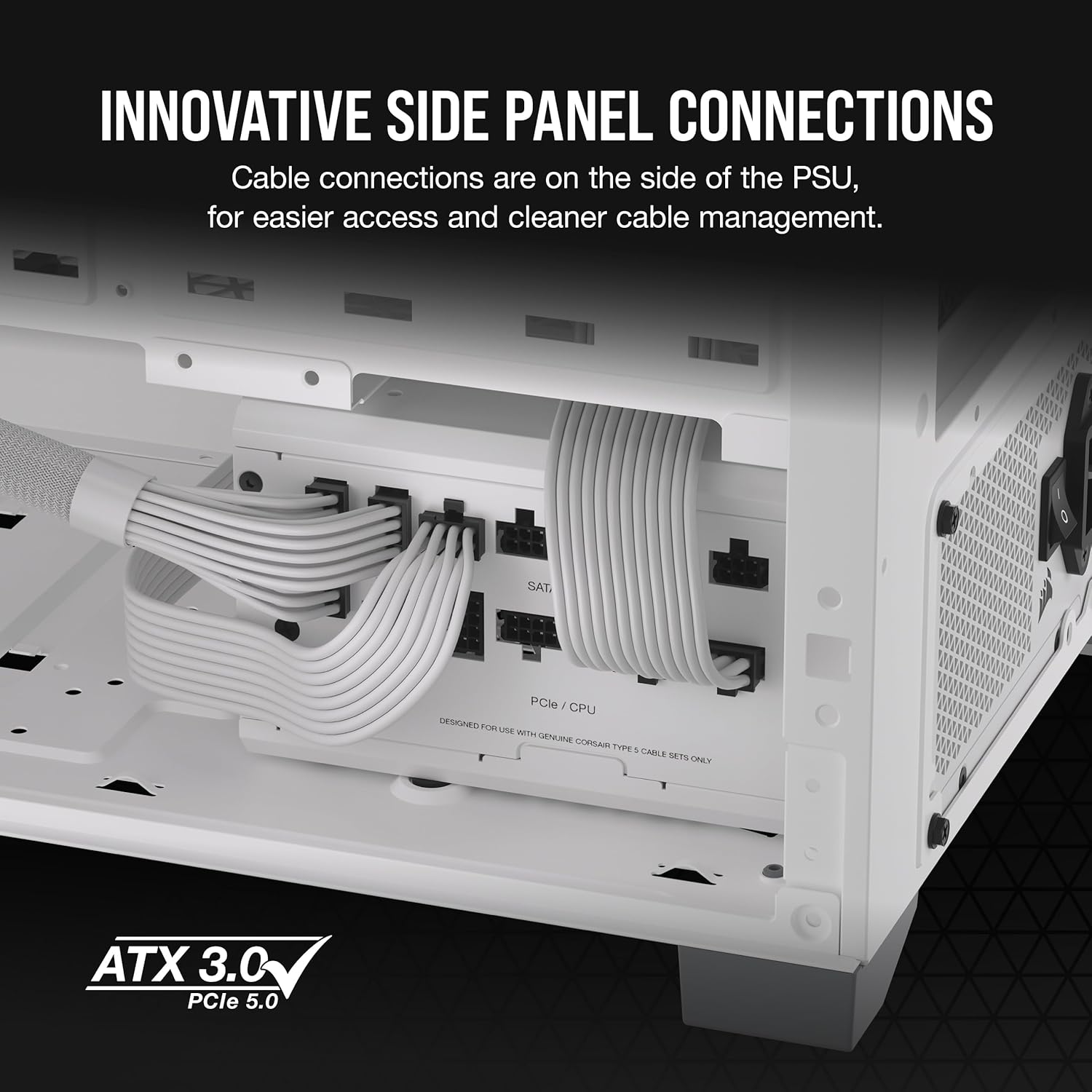

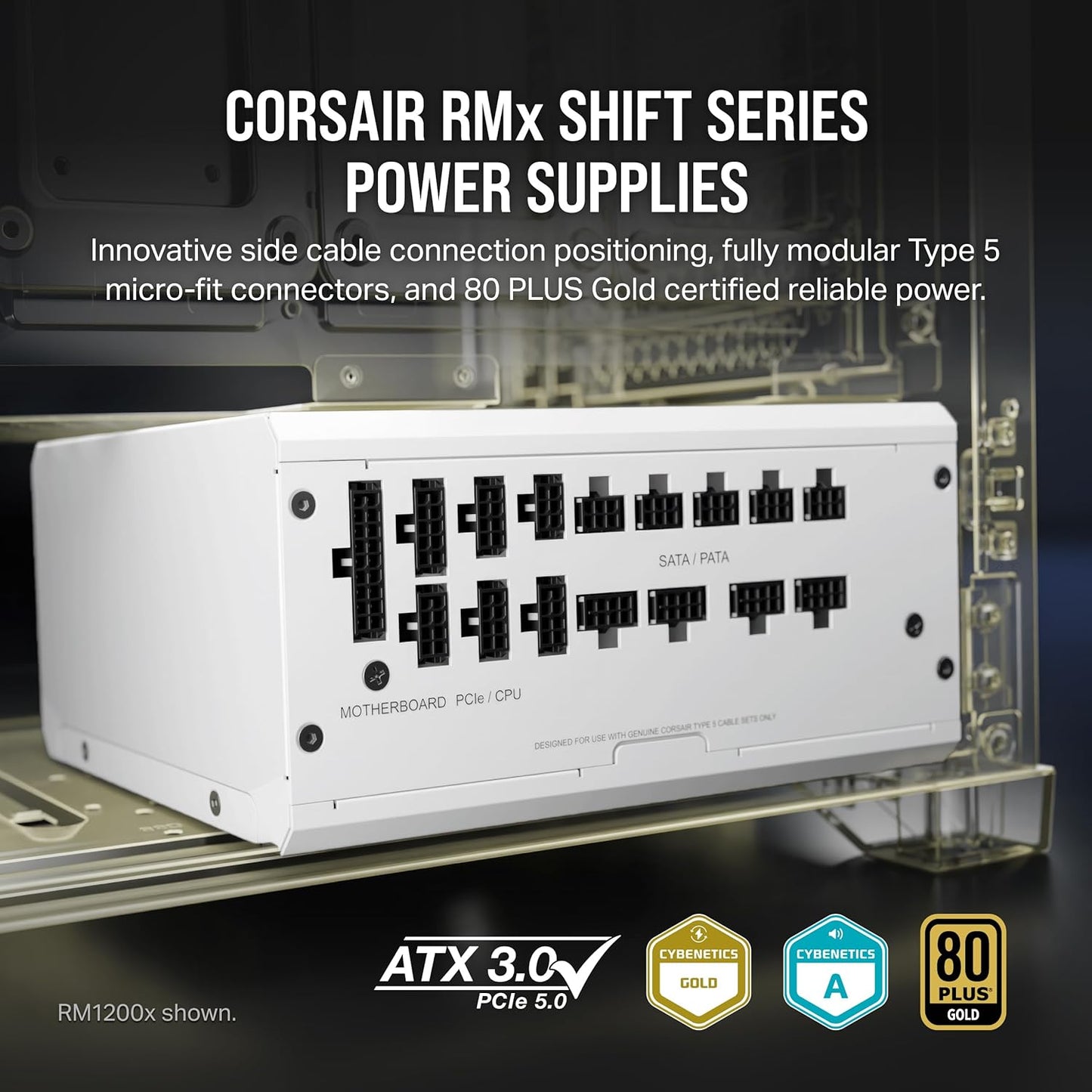

Innovative Easy-Access Connection Position: Modular connections on the side of the PSU mean easier access for your cables and simpler, cleaner cable management.

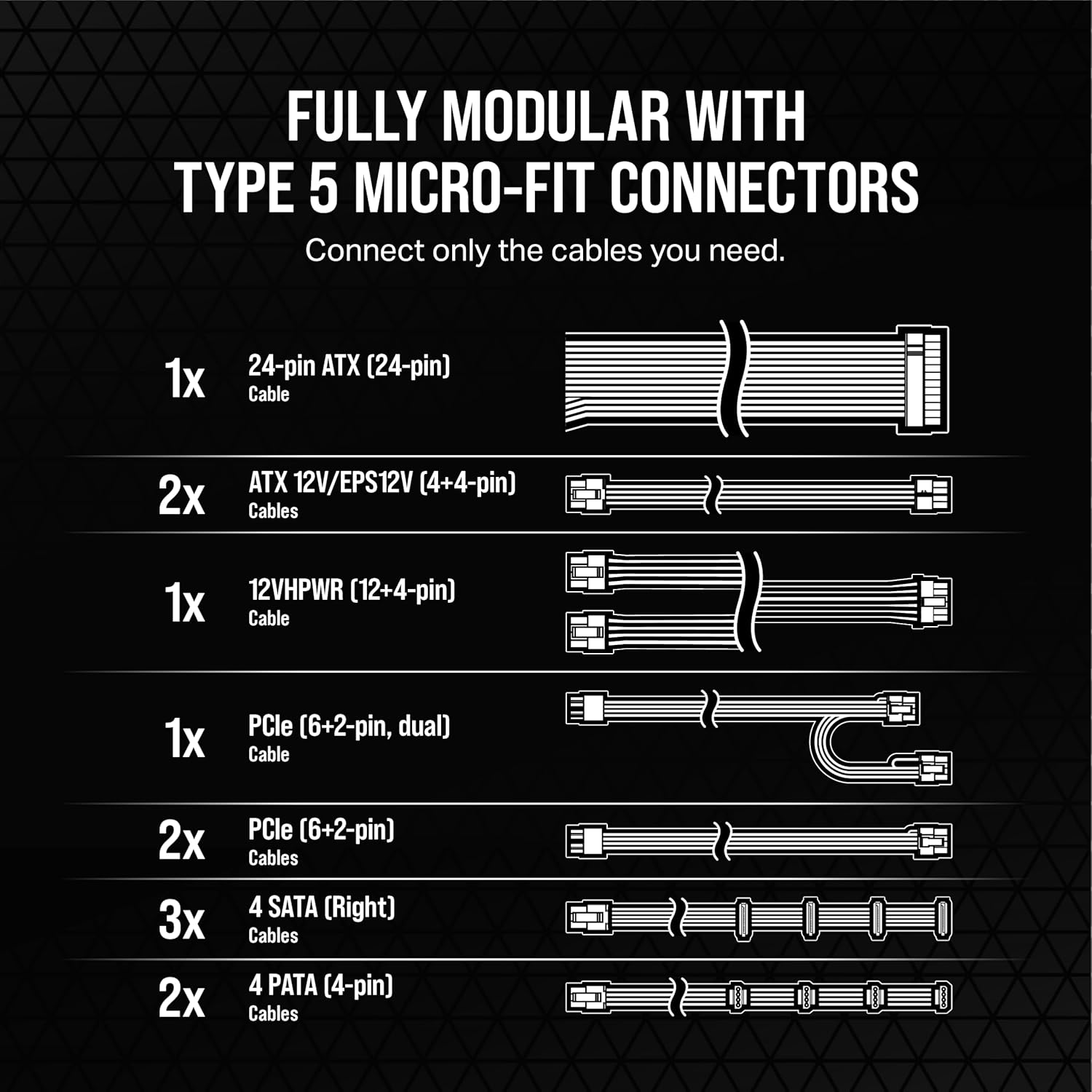

Fully Modular Micro-Fit PSU Connectors: CORSAIR Type 5 Gen 1 micro-fit PSU cables mean you only connect the cables your system needs while taking up less space.

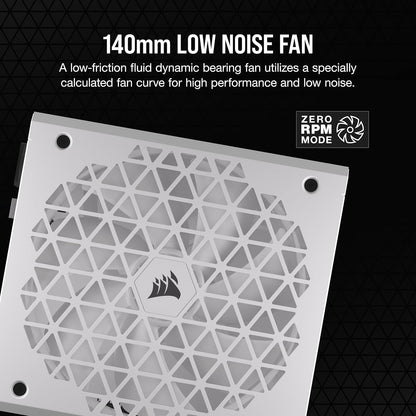

140mm Fluid Dynamic Bearing Fan: Utilises a specially calculated fan curve for high performance, low noise, and superior reliability.

Intel ATX 3.1 Certified: Compliant with the ATX 3.1 power standard, supporting the PCIe Gen 5.1 platform and resisting transient power spikes.

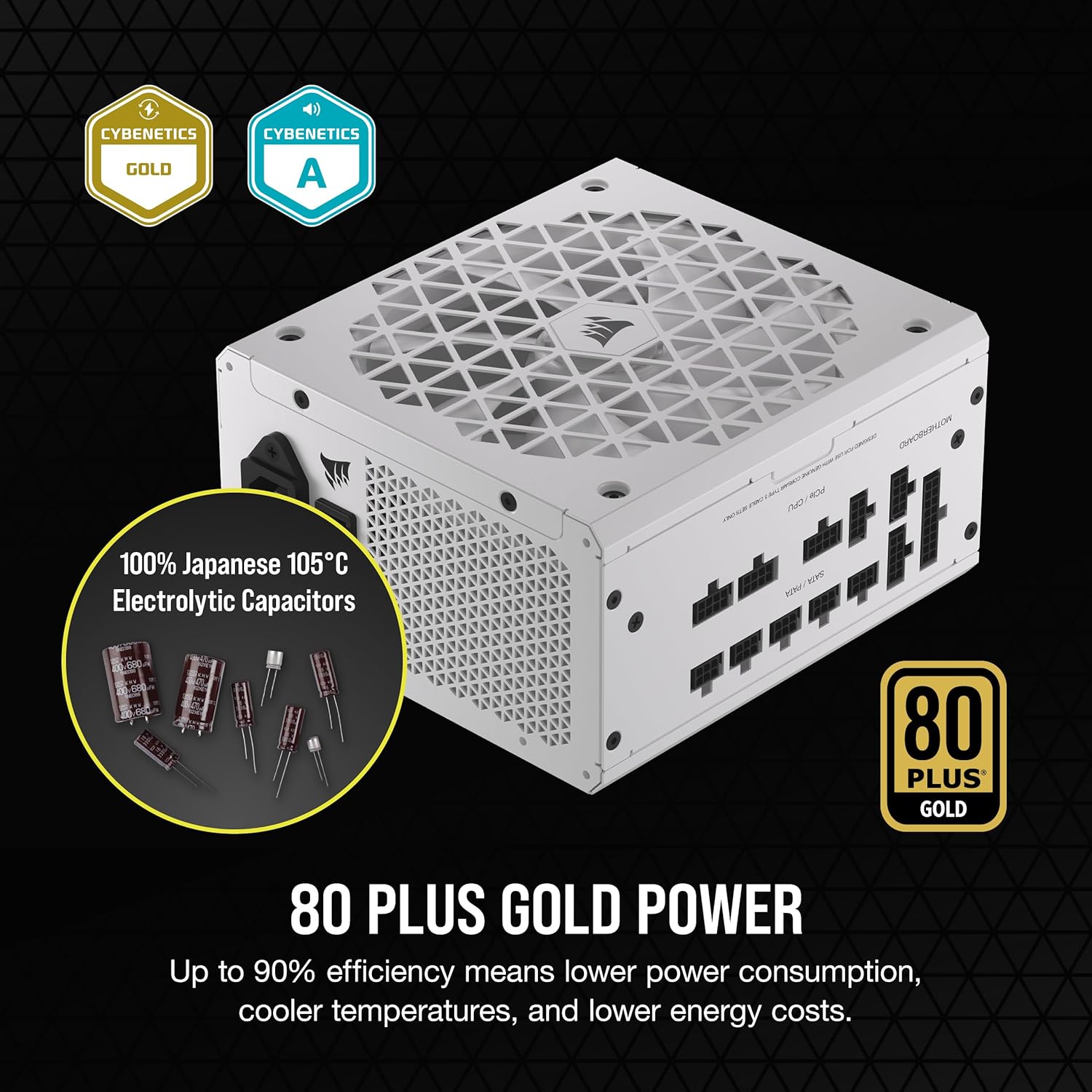

100% 105°C-Rated Japanese Electrolytic Capacitors: Premium internal components deliver unwavering power delivery and long-term reliability.

Specifications

Brand

Corsair

Model

CP-9020274-NA

Series

RMx SHIFT

Wattage

850W

Efficiency

80 PLUS Gold

Form Factor

ATX

Modularity

Fully Modular (side-mounted interface)

ATX Standard

ATX 3.1, PCIe Gen 5.1

Fan

140mm Fluid Dynamic Bearing

Capacitors

100% Japanese, 105°C-rated

Cable Type

Corsair Type 5 Gen 1 Micro-Fit

Color

White

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

Side-mounted cable interface provides easier access than rear-mounted designs, especially in tight cases
ATX 3.1 certification with PCIe Gen 5.1 support future-proofs the unit for current GPU standards
140mm fluid dynamic bearing fan with zero-RPM mode keeps operation quiet at low to moderate loads
Fully modular design with micro-fit connectors reduces cable clutter and frees internal space
100% Japanese 105°C-rated electrolytic capacitors support long-term reliability

👎 Cons

Side cable interface may not suit all case layouts, particularly compact or SFX-style enclosures
850W may be undersized for high-end dual-GPU configurations or extreme overclocking scenarios
White color option limits visual pairing with non-white build themes
Corsair Type 5 Gen 1 cables are not interchangeable with other PSU brands or older Corsair models

Frequently Asked Questions

What makes the "SHIFT" design different from a standard modular PSU?

The modular cable connections are positioned on the side of the PSU rather than the rear, giving easier access to connectors once the unit is installed and simplifying cable routing.

Is this PSU compatible with the latest GPUs that use the 12VHPWR connector?

Yes. The RM850x SHIFT is ATX 3.1 certified and supports the PCIe Gen 5.1 platform, so it is designed to handle modern GPU power requirements including transient power spikes.

How loud is the fan under typical loads?

The 140mm fluid dynamic bearing fan uses a tuned fan curve to maintain low noise under normal loads. Under light loads, the fan can stop entirely in its zero-RPM mode.

Do I need to use only Corsair cables with this PSU?

Yes. The RM850x SHIFT uses Corsair Type 5 Gen 1 micro-fit connectors. Using cables from other manufacturers or even older Corsair generations can damage components.

What is the warranty coverage?

Corsair typically backs the RMx SHIFT series with a multi-year warranty. Check Corsair's current warranty terms for the specific coverage period in your region.
