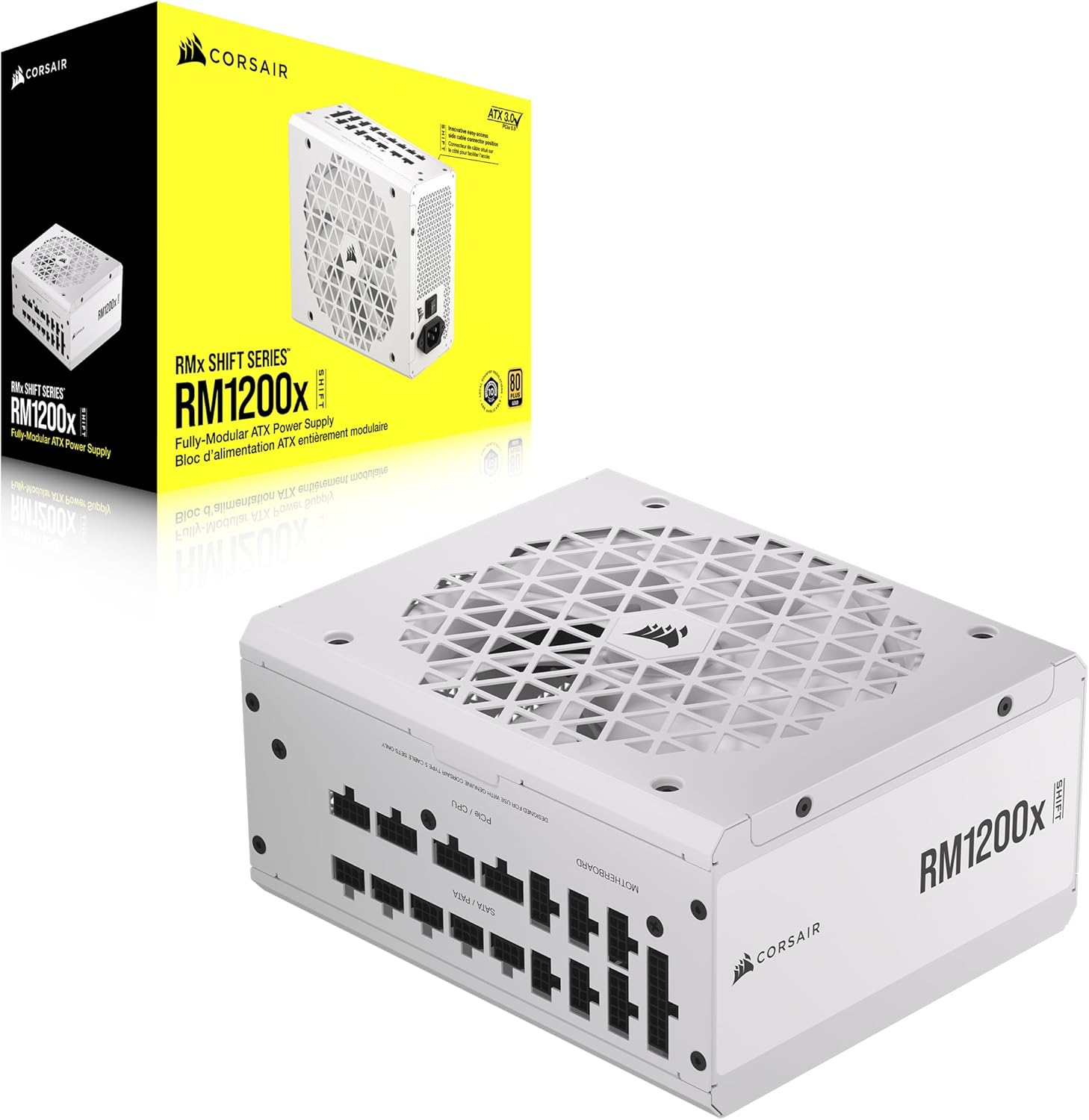

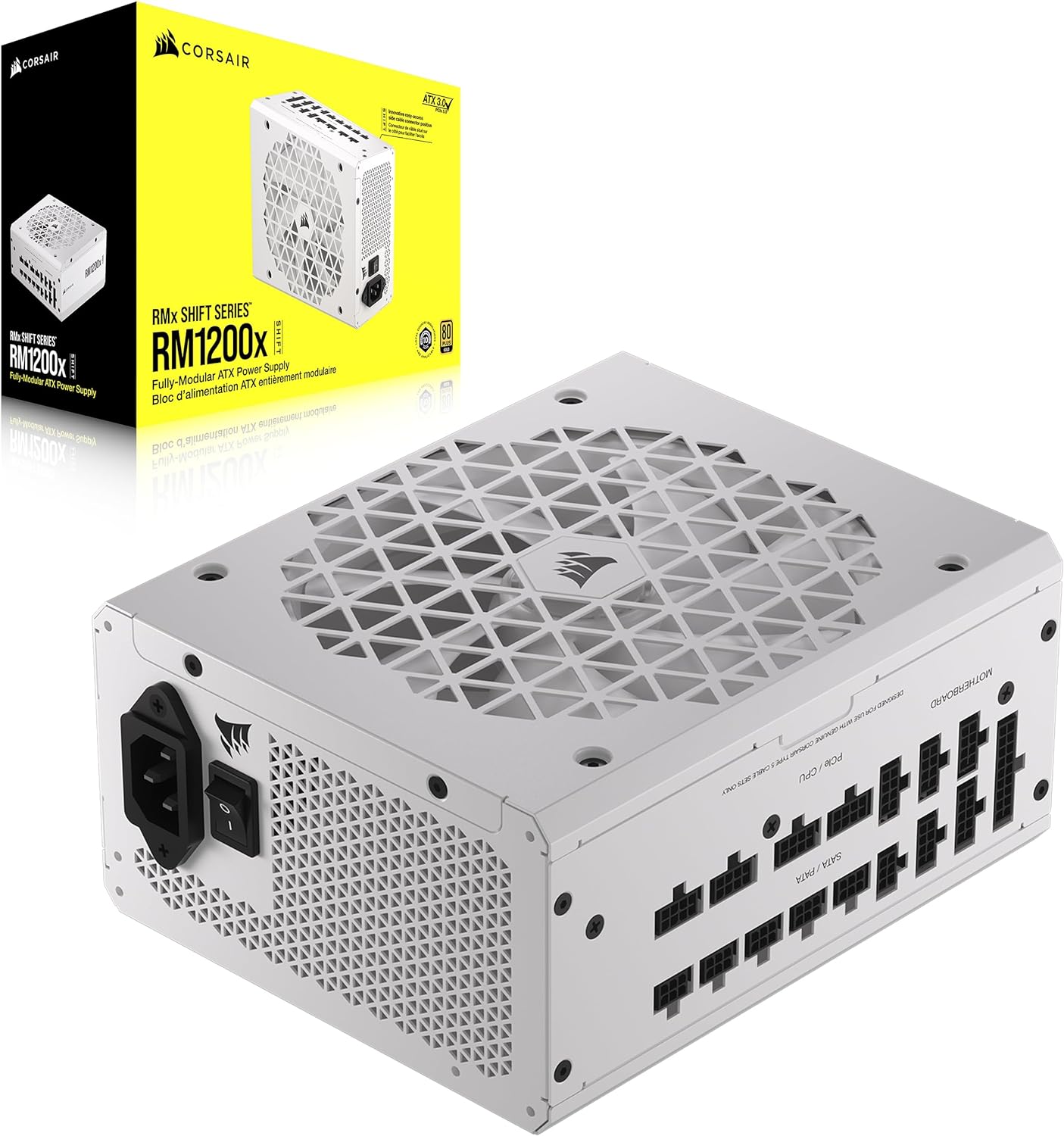

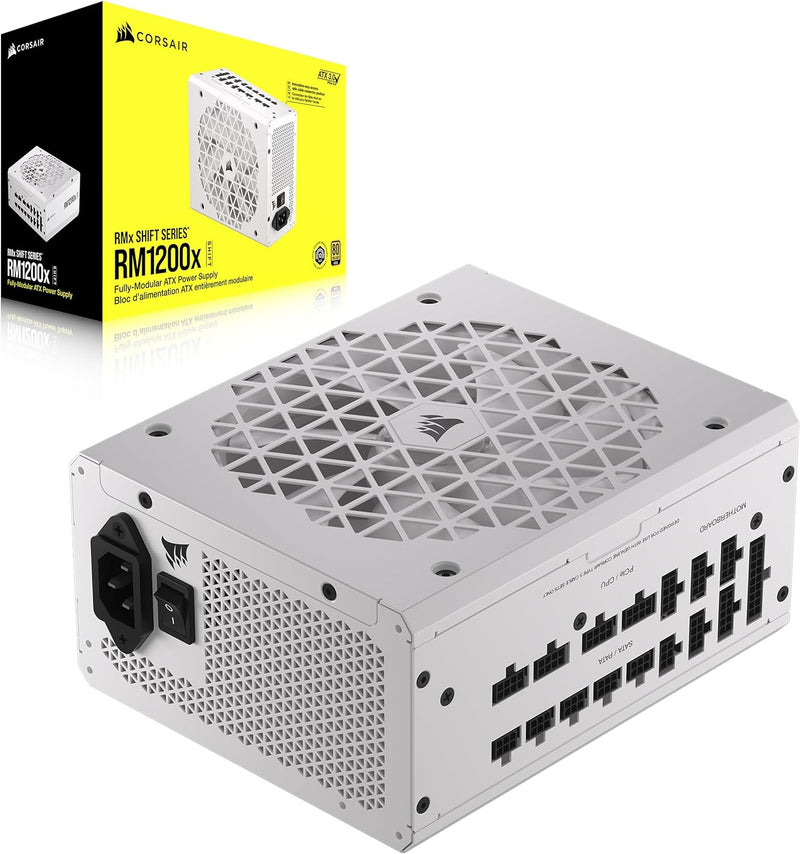

Corsair CP-9020276-NA RM1200x Shift 1200W ATX 3.0 PSU

Name: Corsair CP-9020276-NA RM1200x Shift 1200W ATX 3.0 PSU
Brand: Corsair
SKU: CP-9020276-NA

Overview

The Corsair RM1200x Shift delivers 1200W of continuous ATX 3.0-compliant power through a fully modular platform that reorients the cable interface to the PSU's side panel rather than its face. That engineering decision has a concrete payoff: cables exit laterally, reducing routing complexity inside the case and eliminating the sharp bends that stress connectors on standard units. Efficiency is rated 80 PLUS Gold — 90% at 50% load — and internal components are built around 100% Japanese 105°C electrolytic capacitors, which is the specification tier that separates PSUs with five-year warranties from those with three. The 140mm fluid dynamic bearing fan uses a zero-RPM mode at idle and moderate loads, engaging only when thermal conditions require it, which keeps noise floors low during everyday desktop use.

This unit is engineered for power users running high-end discrete GPUs — specifically those using PCIe 5.0 connectors — where ATX 3.0 headroom for transient current spikes is not a checkbox but a functional requirement. The native PCIe 5.0 12VHPWR connector eliminates the adapter chains that have been implicated in connector failures on earlier GPU installations. For system builders assembling high-TDP workstations, enthusiast gaming rigs, or content creation machines that pull 800W+ under sustained load, the RM1200x Shift provides margin without compromise. The Micro-Fit modular interface keeps unused cables out of the chassis entirely, which matters for airflow in builds where thermal management is already tightly tuned.

Key Features

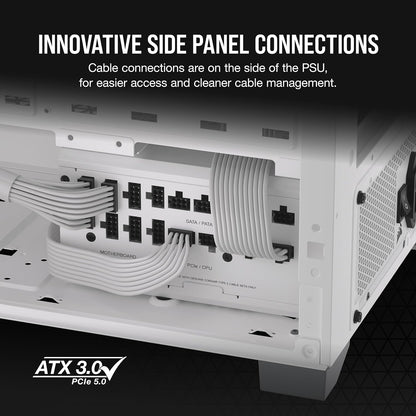

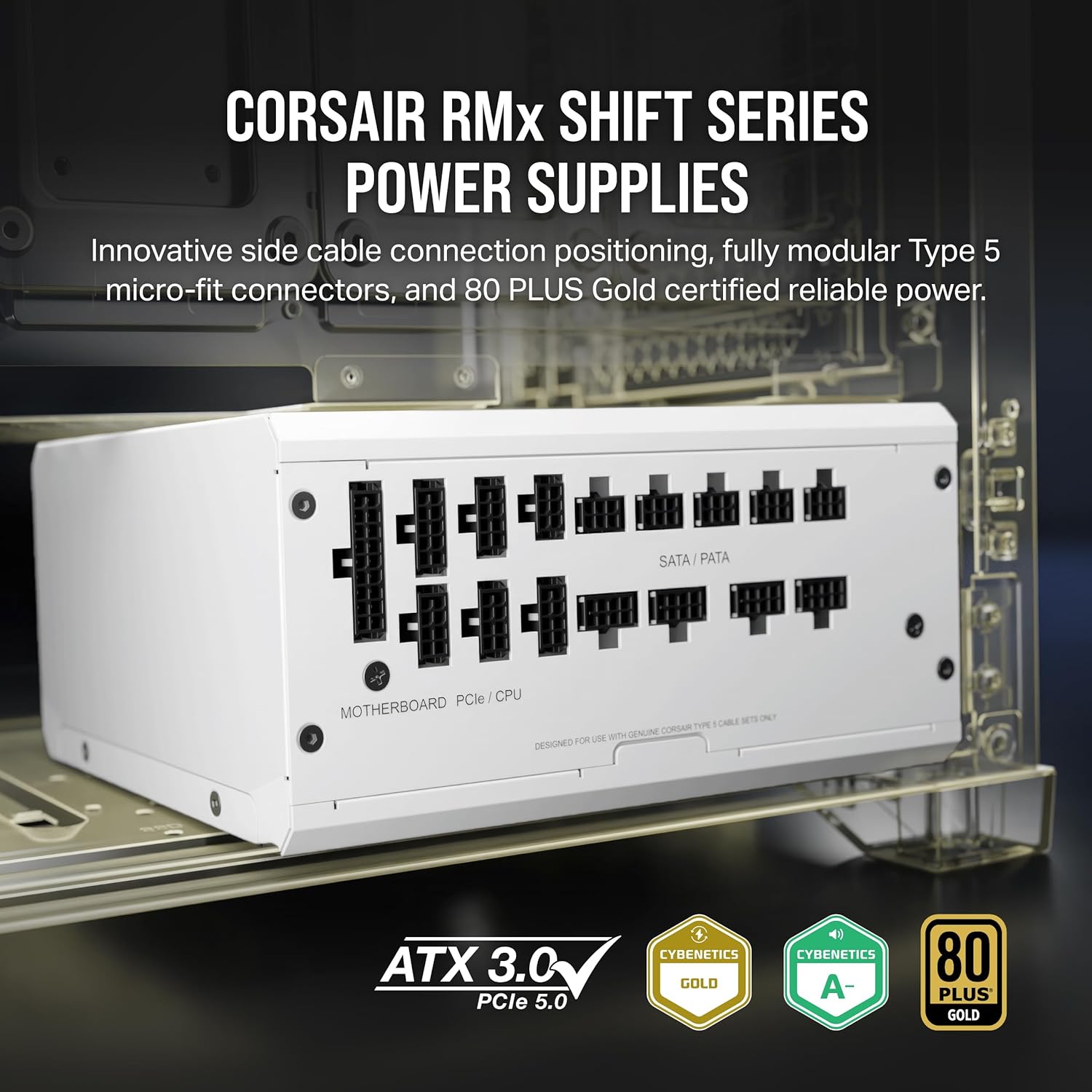

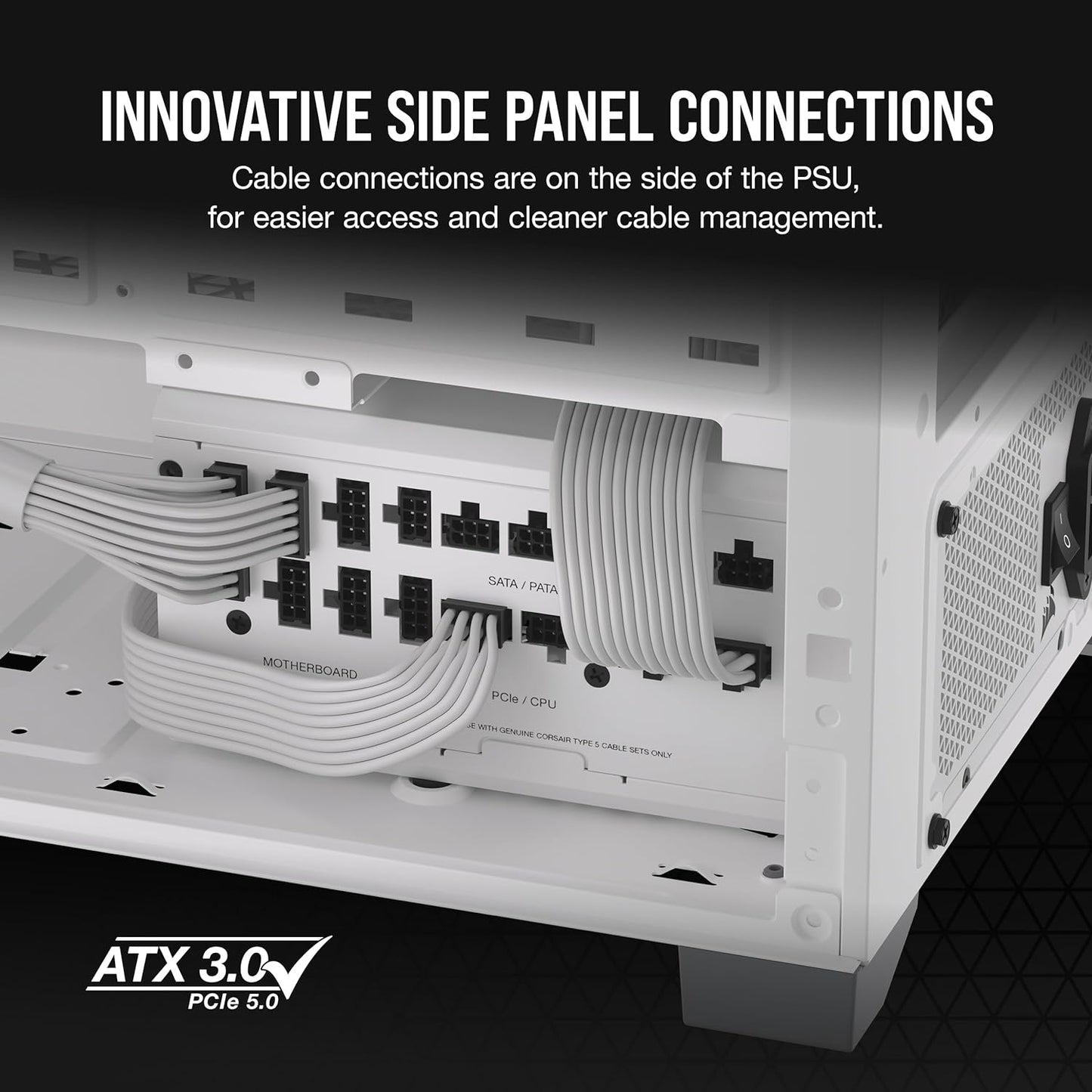

Innovative Easy-Access Connection Position: Modular connections on the side of the PSU mean easier access for your cables and simpler, cleaner cable management.

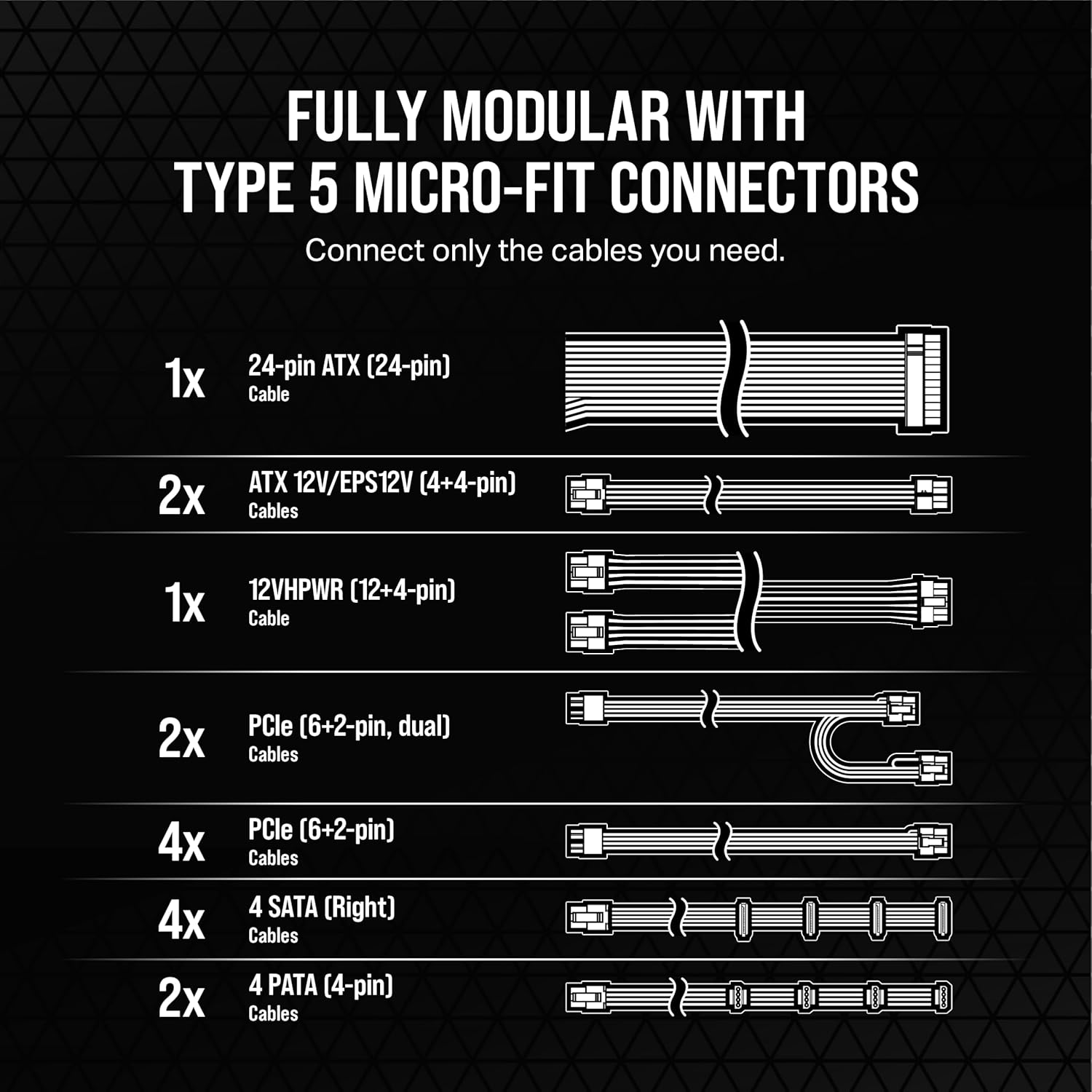

Fully Modular Micro-Fit PSU Connectors: CORSAIR Type 5 Gen 1 micro-fit PSU cables mean you only connect the cables your system needs while taking up less space.

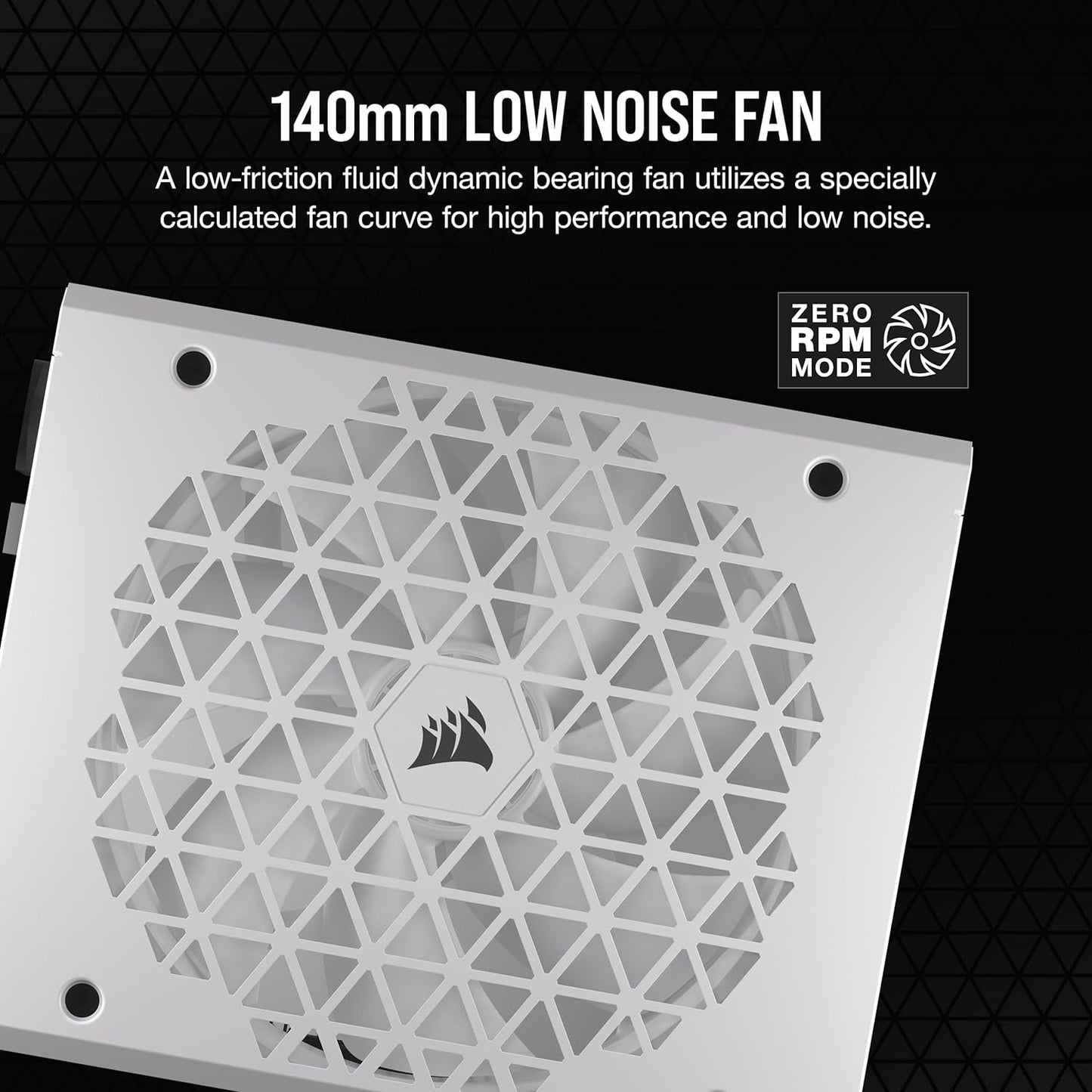

140mm Fluid Dynamic Bearing Fan: Utilises a specially calculated fan curve for high performance, low noise, and superior reliability.

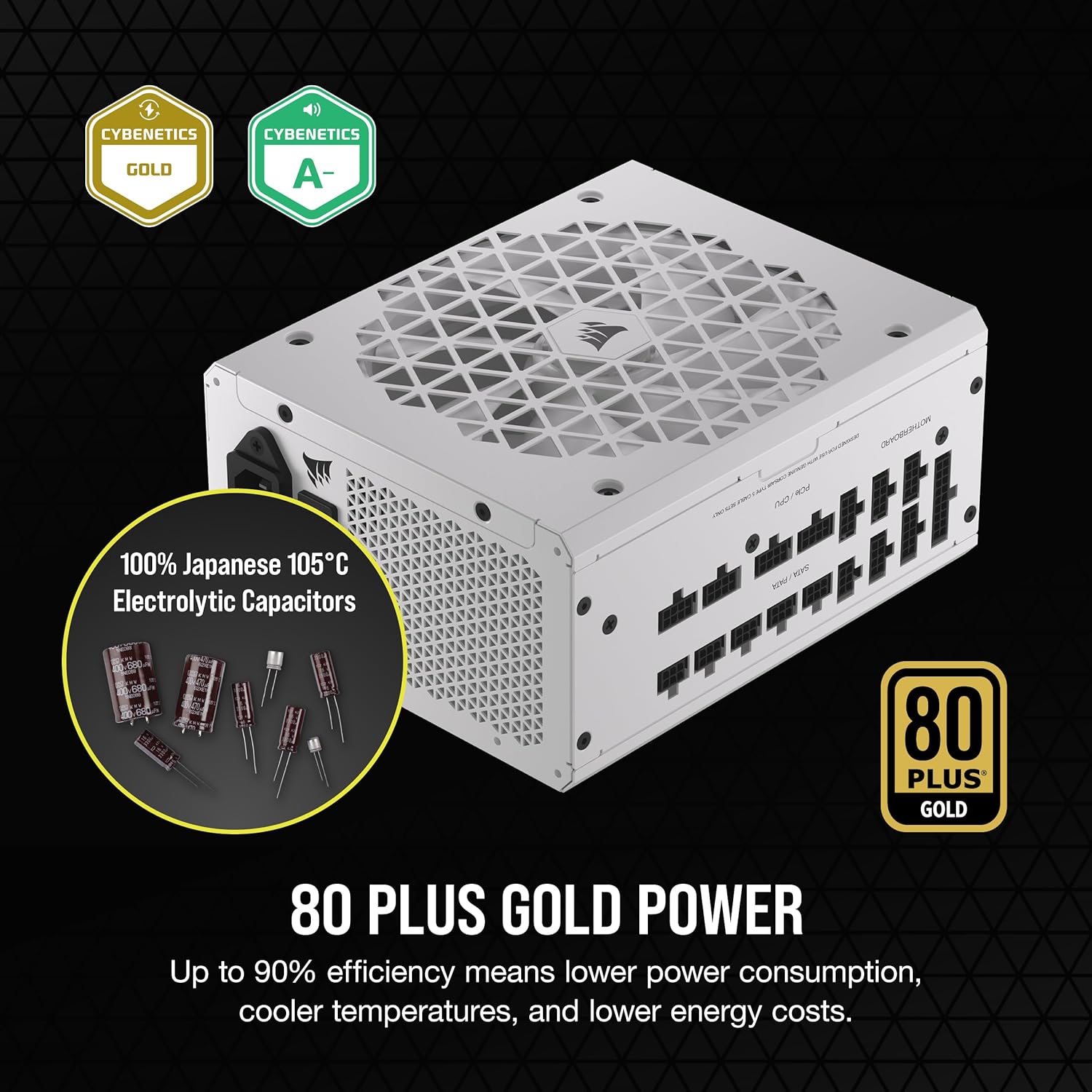

100% 105°C-Rated Japanese Electrolytic Capacitors: Premium internal components deliver unwavering power delivery and long-term reliability.

Specifications

Model

CP-9020276-NA

Series

RMx SHIFT

Form Factor

ATX

Wattage

1200W

Efficiency Rating

80 PLUS Gold

Modularity

Fully Modular

Connector Type

Micro-Fit (Type 5 Gen 1)

Fan Size

140mm Fluid Dynamic Bearing

Compliance

ATX 3.0, PCIe Gen 5

Capacitors

100% Japanese 105°C-rated electrolytic

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

1200W continuous output provides substantial headroom for dual-GPU workstation builds or heavily overclocked single-GPU systems without load-induced voltage sag.
Side-mounted modular interface eliminates 90-degree cable bends at the PSU, resulting in measurably cleaner routing in mid- and full-tower cases.
ATX 3.0 and PCIe 5.0 native connector support handles GPU transient spikes without requiring third-party 12VHPWR adapters.
100% Japanese 105°C-rated electrolytic capacitors contribute to measured hold-up time and voltage regulation stability across the full load range.
140mm FDB fan operates silently at zero RPM under light loads and maintains low noise even at peak draw.

👎 Cons

Type 5 Gen 1 Micro-Fit cables are not interchangeable with older Corsair PSU cable sets, making cable upgrades or color swaps more constrained.
The side-exit cable layout requires case compatibility — some smaller mid-towers lack the clearance between the PSU shroud and side panel to fully benefit.
1200W occupies the top tier of mainstream PSU capacity, carrying a price premium over 850W–1000W units that are sufficient for most single-GPU builds.
80 PLUS Gold, while efficient, does not achieve the Platinum or Titanium efficiency of competing units at similar price points.

Frequently Asked Questions

What does ATX 3.0 compliance actually mean for GPU power delivery?

ATX 3.0 raises the excursion power headroom spec, meaning the PSU can handle transient spikes up to 200% of rated wattage for up to 100 microseconds — directly relevant to high-end GPUs like the RTX 4090 that draw sharp current spikes during load. The RM1200x Shift handles these without triggering OCP.

How does the side-mounted cable interface differ from a standard PSU layout?

On a conventional PSU, connectors face into the case interior, requiring cables to bend 90 degrees immediately and often fighting the shroud or bottom intake fan. The Shift's lateral connector placement means cables route parallel to the side panel, shortening runs and reducing bend stress on connectors — particularly useful in mid-tower builds.

What efficiency can I expect under typical workloads?

80 PLUS Gold certifies at least 87% efficiency at 20% load, 90% at 50% load, and 87% at full load at 115V. In practice, a system drawing 600W from the wall with this unit running at half load will convert roughly 540W to usable DC — a meaningful reduction in heat vs. Bronze-rated alternatives.

Are the included cables compatible with previous Corsair PSUs?

No. The RM1200x Shift uses Corsair Type 5 Gen 1 Micro-Fit connectors on the PSU side, which are not backward compatible with Type 4 or earlier cable sets. Only use cables included with this unit or Corsair-designated Type 5 replacements.

Does the fan run continuously or only under load?

The RM1200x Shift uses a zero-RPM mode at low-to-moderate loads — the 140mm FDB fan remains off until thermal or load conditions require active cooling. Threshold varies by ambient temperature but typically the fan stays idle below 40-50% load in a cool environment.
