Corsair CSSD-F1000GBMP600ECS 1TB MP600 Elite PS5 SSD

Name: Corsair CSSD-F1000GBMP600ECS 1TB MP600 Elite PS5 SSD
Brand: Corsair
SKU: CSSD-F1000GBMP600ECS

Overview

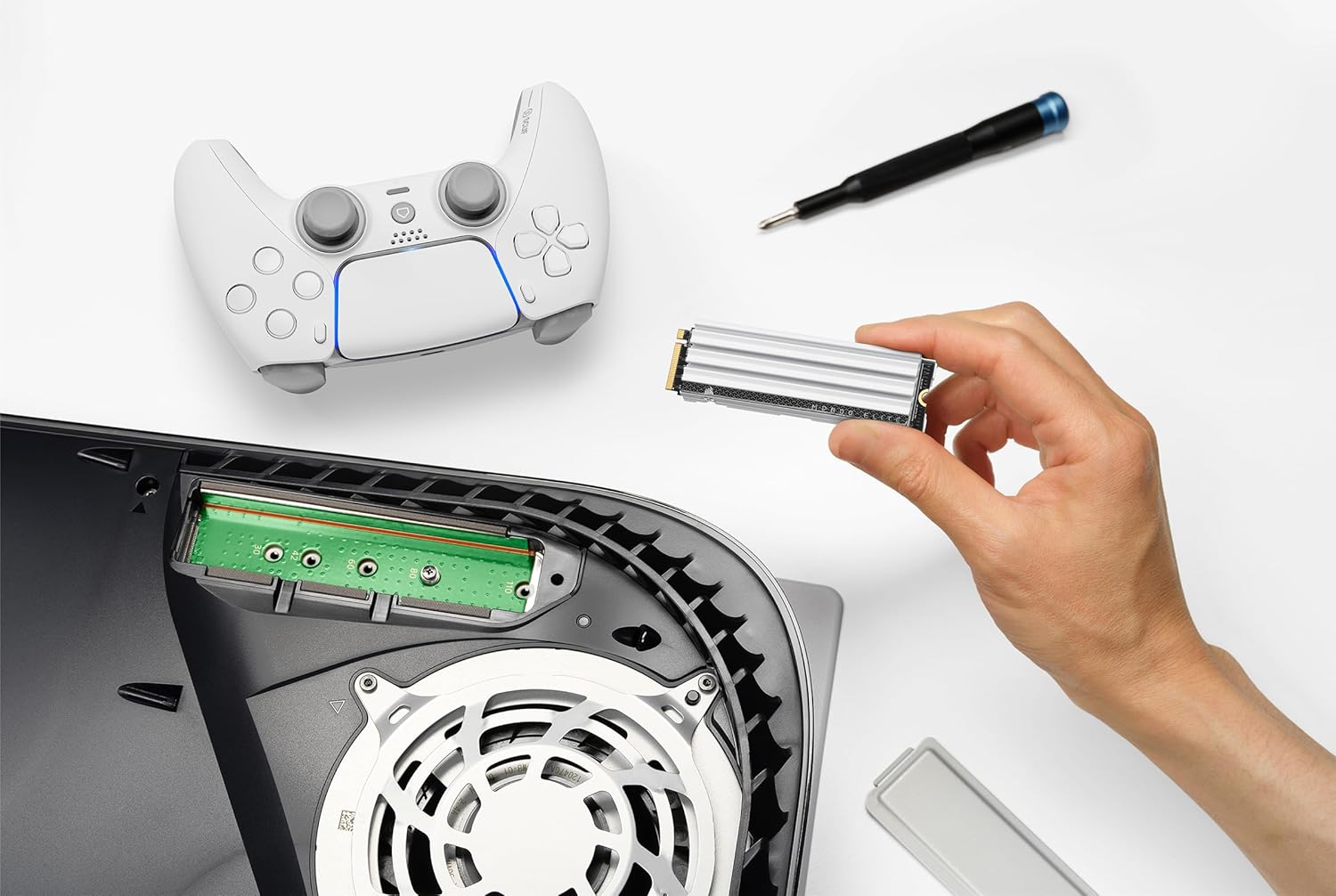

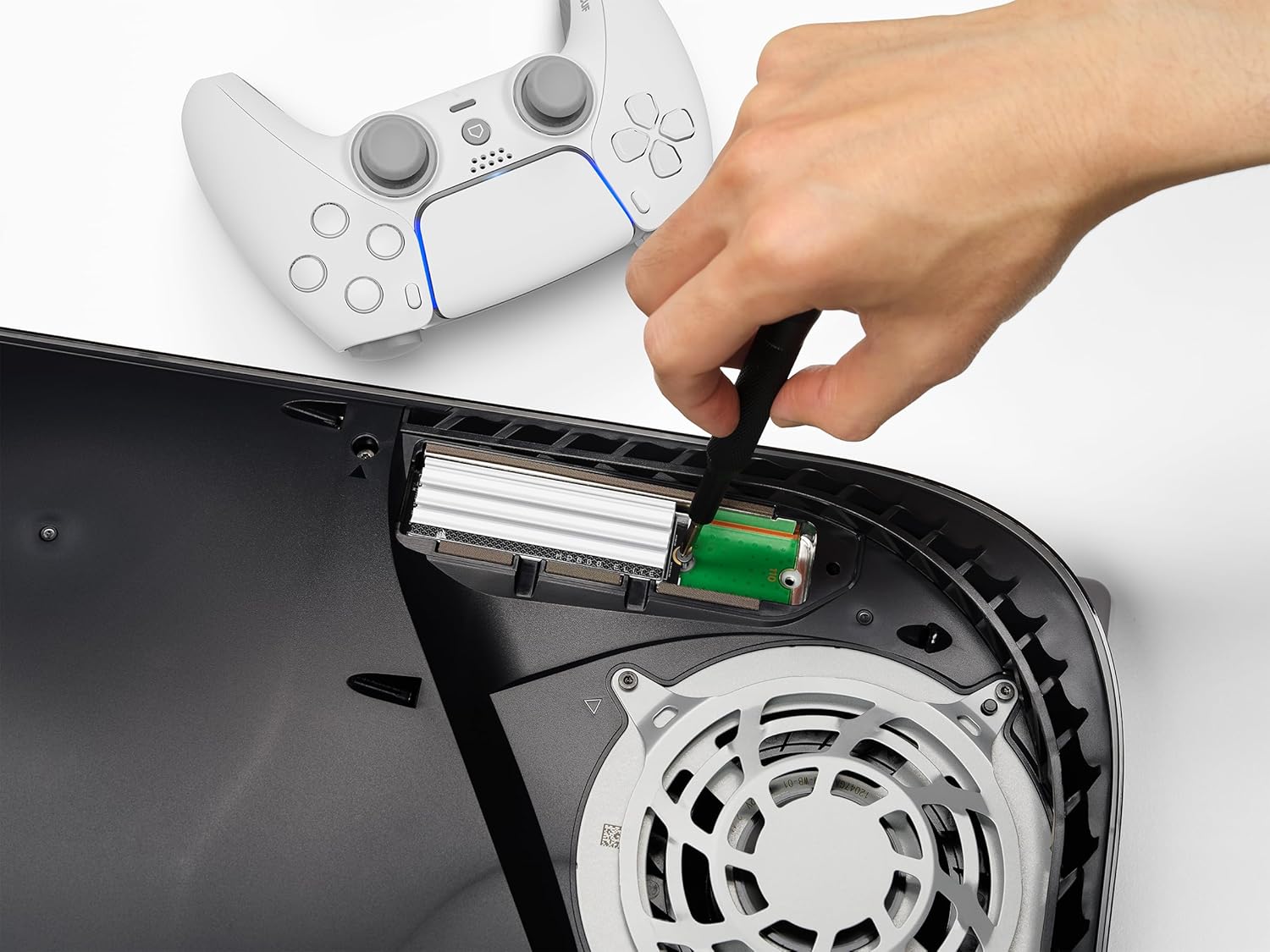

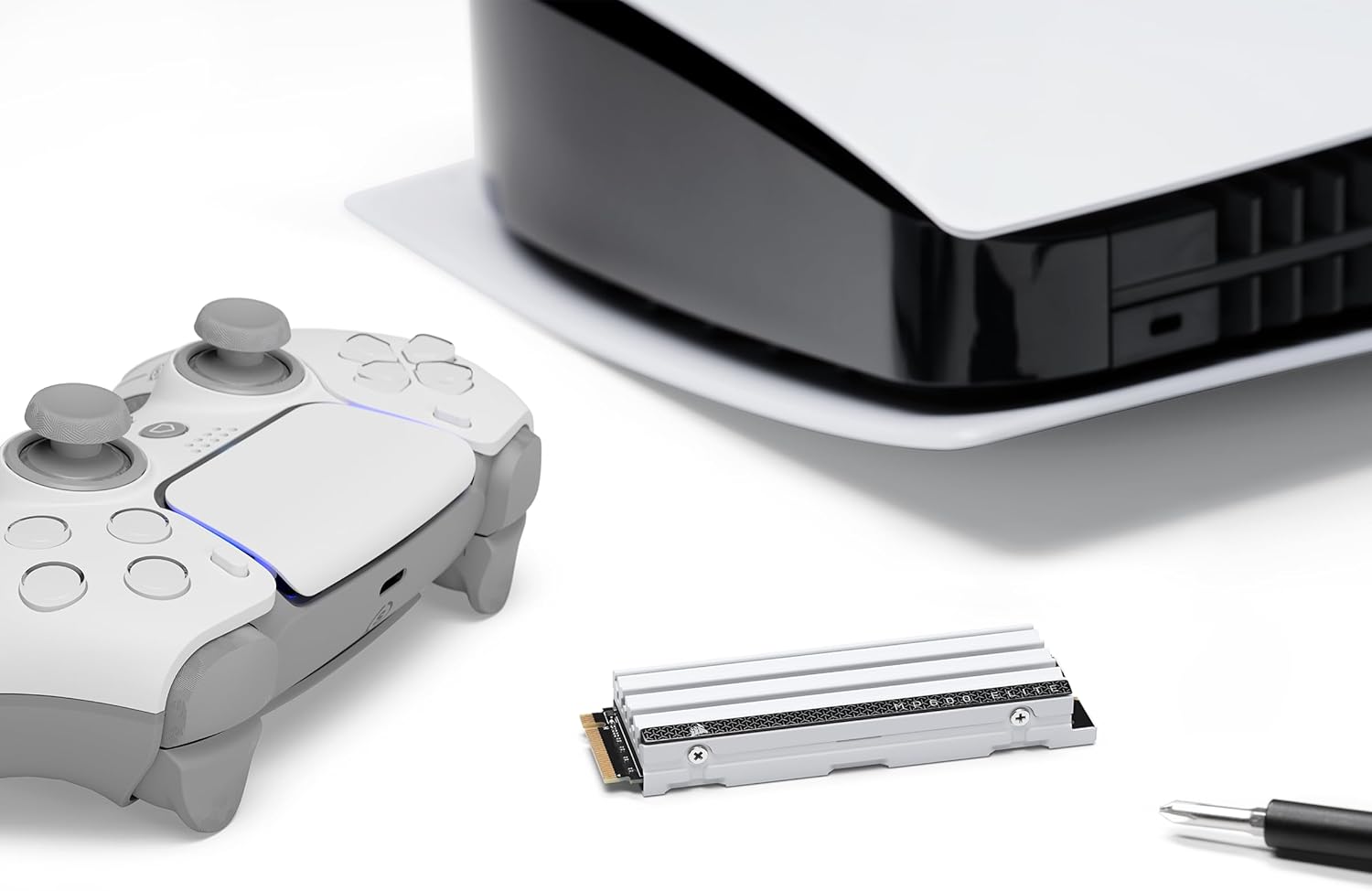

The Corsair MP600 Elite 1TB is an M.2 NVMe SSD built around PCIe Gen4 x4 technology, delivering sequential read speeds up to 7,000MB/s and sequential writes up to 6,500MB/s. In the context of PS5 storage expansion, those numbers matter directly: Sony's internal SSD operates at approximately 5,500MB/s, and any expansion drive that falls below that threshold creates a two-tier storage experience where games on the expansion drive load measurably slower. The MP600 Elite sits above that threshold, meaning games stored on it load at effectively the same pace as those on internal storage. The included low-profile aluminum heatsink addresses the thermal management problem that bare-drive PS5 installs face — sustained sequential workloads (level streaming, large asset loads) generate heat that an unprotected NAND stack will throttle under, and the heatsink keeps operating temperature in a sustainable range without requiring aftermarket solutions.

Beyond the PS5 use case, the M.2 2280 form factor and PCIe Gen4 x4 interface make the MP600 Elite a competitive option for desktop PC builds and compatible laptops where Gen4 bandwidth translates to real-world gains in large file transfers, game asset decompression, and scratch disk performance in creative applications. Corsair positions the drive with a heatsink already attached, which removes a step for desktop builders who would otherwise purchase a heatsink separately. At 1TB, the drive fits the practical storage needs of most active game libraries while leaving the door open for a second M.2 slot to be populated as libraries grow. It is a well-specified, purpose-built storage expansion solution that delivers on its core promise without requiring additional configuration.

Key Features

PS5-compatible M.2 SSD storage expansion: Expand your PS5 storage capacity with a PCIe Gen4 x4 SSD that delivers up to 7,000MB/sec sequential read and 6,500MB/sec sequential write speeds, for phenomenal read, write, and response times.

High-speed PCIe Gen4 Performance: Leveraging PCIe Gen4 technology for maximum bandwidth, the MP600 ELITE delivers incredible storage performance.

Expand your console’s storage: Expand your console’s storage, fitting the needs of nearly any game library, whether you have four games or 40.

Gaming Made Faster: The MP600 ELITE exceeds all Sony PS5 M.2 performance requirements, so large game files load faster than ever, directly from the SSD.

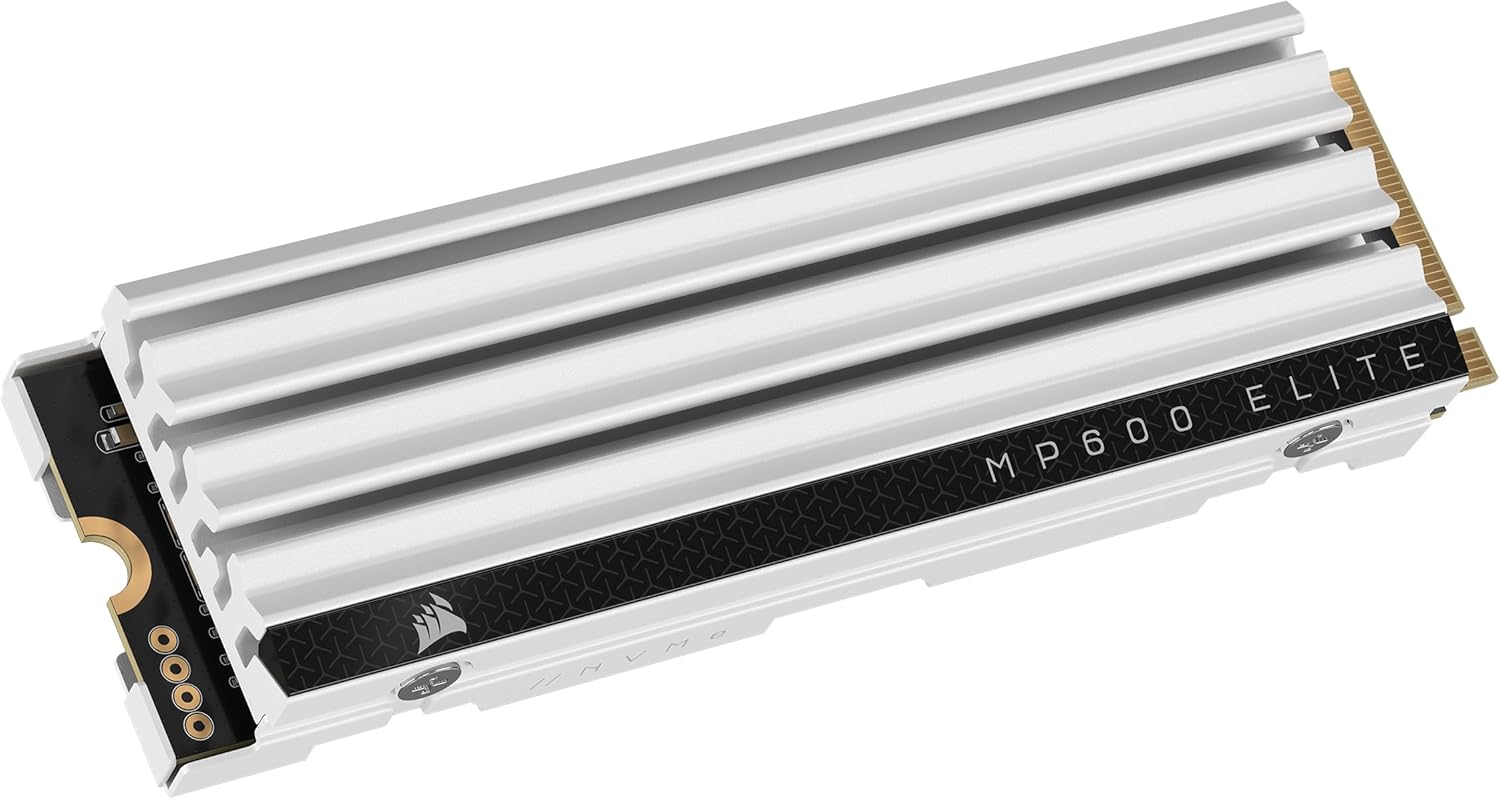

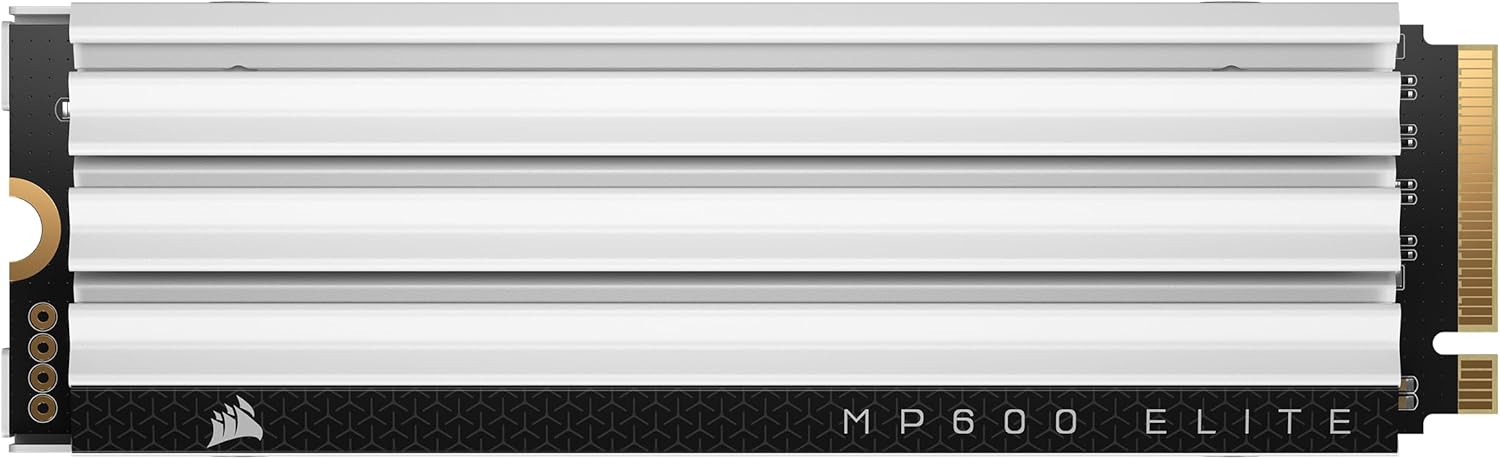

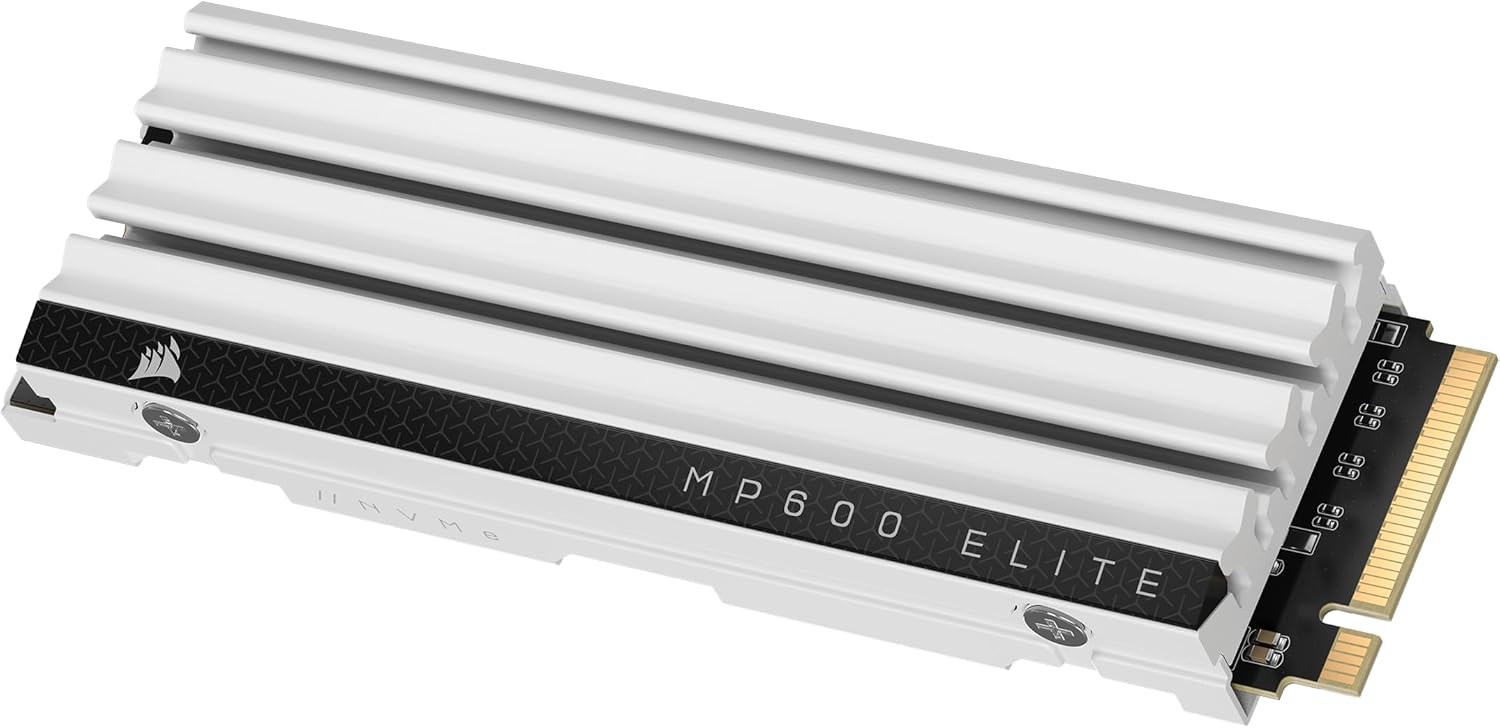

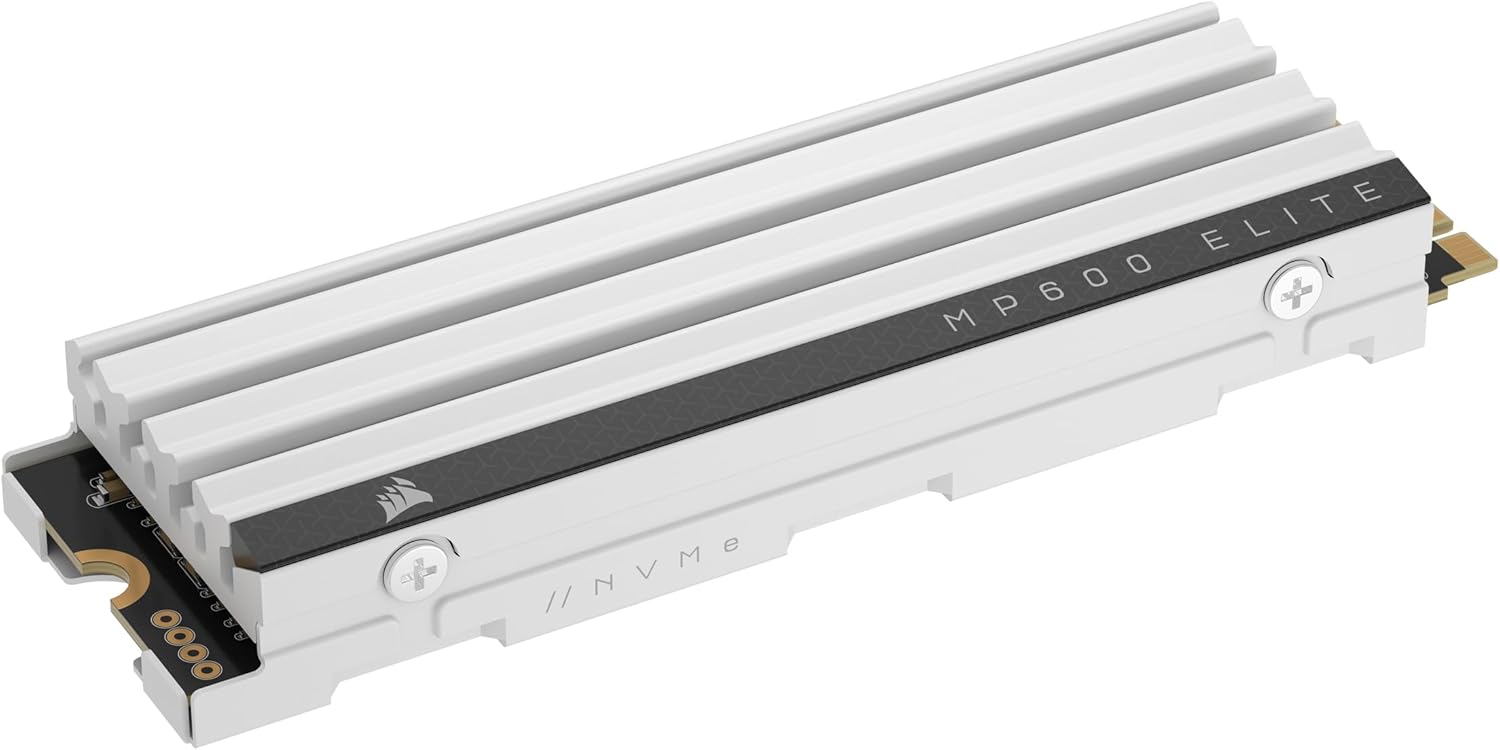

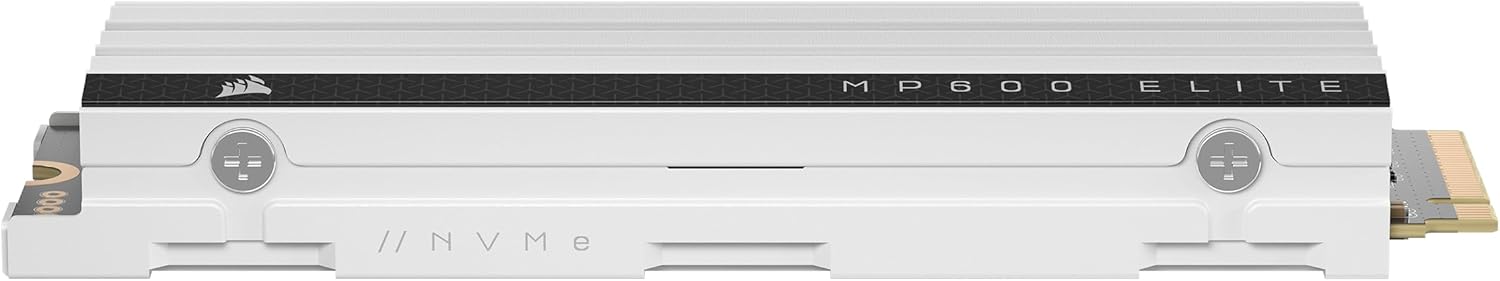

Low-profile aluminium heatsink: The aluminum heatsink helps disperse heat and reduce throttling, so your SSD maintains sustained high performance right out of the box.

Specifications

Brand

Corsair

Model

CSSD-F1000GBMP600ECS

Capacity

1TB

Form Factor

M.2 2280

Interface

PCIe Gen4 x4 NVMe

Sequential Read

Up to 7,000MB/s

Sequential Write

Up to 6,500MB/s

Heatsink

Low-profile aluminum (included)

PS5 Compatible

Yes

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

7,000MB/s sequential read and 6,500MB/s sequential write speeds exceed Sony's PS5 M.2 requirements, ensuring game loads and asset streaming operate at the console's full intended bandwidth.
The included low-profile aluminum heatsink manages sustained thermal load inside the PS5's tight internal clearance — preventing the throttling that can occur with unheatsunk drives under extended gaming sessions.
M.2 2280 PCIe Gen4 x4 form factor makes this drive fully portable between PS5 and compatible PC builds, protecting the investment if your platform use case changes.
1TB of NVMe capacity meaningfully expands available game storage without the speed penalty of external USB drives, which are limited to storage-only status on PS5 and cannot run games natively.
Corsair's established quality control and component sourcing delivers reliable sustained performance that matches the drive's rated spec sheet in real-world testing.

👎 Cons

At 1TB, the drive fills quickly with modern AAA titles averaging 50–100GB each — heavy library players may find the capacity ceiling reached within a single major game release cycle.
PCIe Gen4 performance is only realized on Gen4-compatible hardware; on a PCIe Gen3 M.2 slot (in older PCs), the drive will operate but be limited to Gen3 bandwidth, negating much of the performance premium.

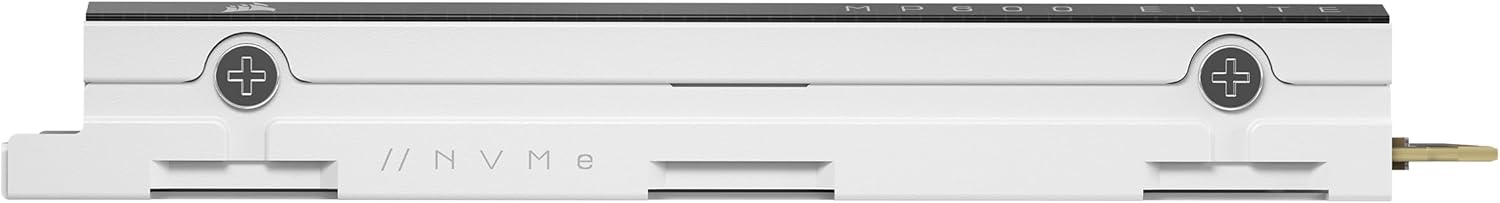

The aluminum heatsink, while effective, adds a small amount to the drive's physical profile — in tight M.2 slots with restricted vertical clearance (some laptops), the heatsink may not be installable.
No software suite is included for drive health monitoring or performance benchmarking on PC, which Corsair provides for some of its other SSD product lines.

Frequently Asked Questions

Does the MP600 Elite meet Sony's PS5 M.2 expansion requirements?

Yes — Sony requires a PCIe Gen4 M.2 NVMe SSD with sequential read speeds of at least 5,500MB/s for PS5 expansion. The MP600 Elite delivers up to 7,000MB/s sequential read, which exceeds that threshold with meaningful headroom. It is fully compatible with the PS5's M.2 expansion slot.

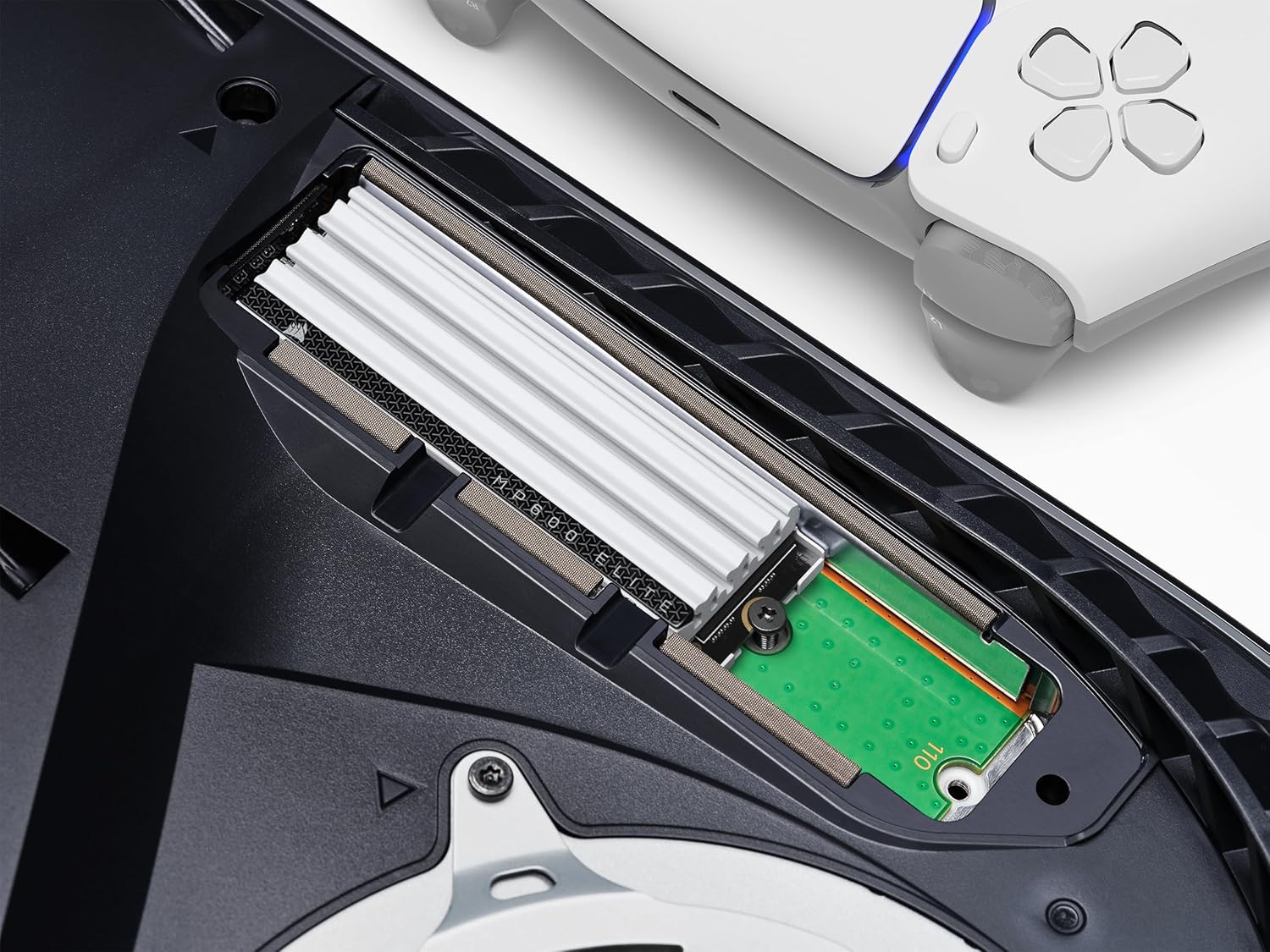

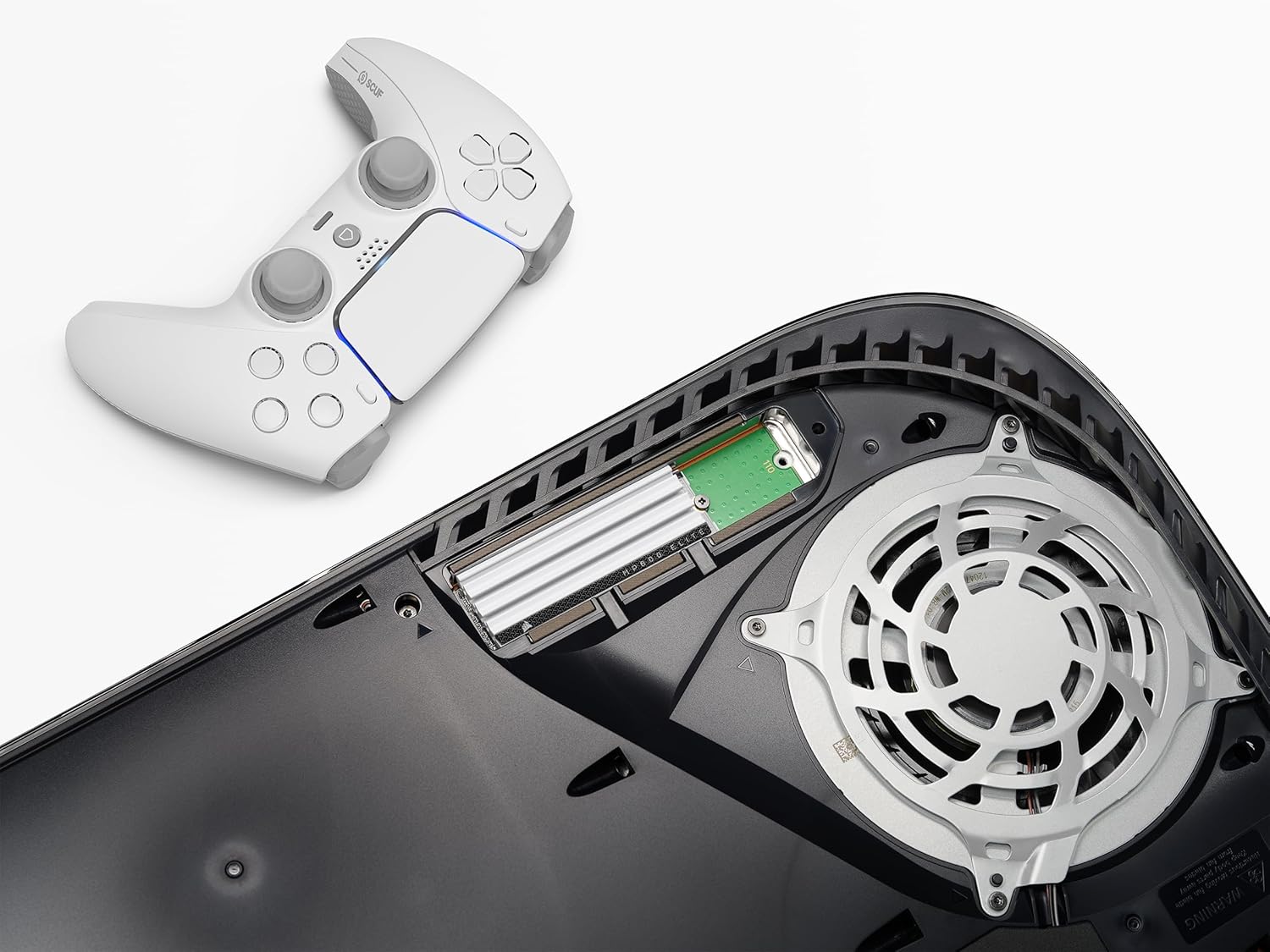

Does the included heatsink fit inside the PS5 without clearance issues?

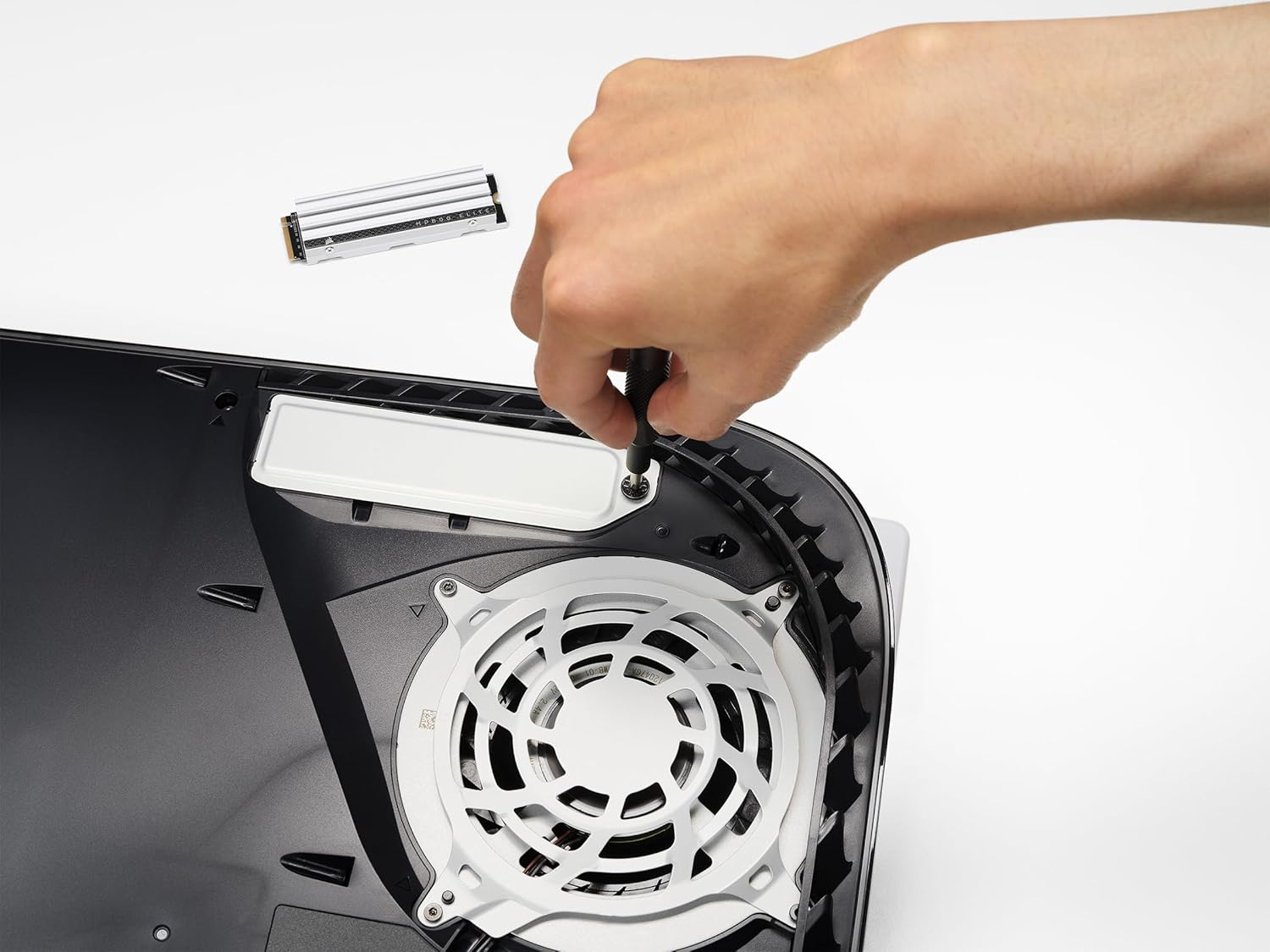

The MP600 Elite ships with a low-profile aluminum heatsink specifically sized for PS5 installation. It dissipates heat efficiently within the console's internal clearance constraints, reducing thermal throttling under sustained load — a meaningful advantage over bare-drive alternatives that rely entirely on the PS5's own cooling airflow.

What is the form factor, and will this drive fit a PC or laptop M.2 slot as well?

The MP600 Elite uses the M.2 2280 form factor (22mm wide, 80mm long) with a PCIe Gen4 x4 NVMe interface. It is compatible with any M.2 slot that supports PCIe Gen4 — including desktop motherboards and some laptops — making it a dual-purpose investment if you ever repurpose the drive.

What real-world improvement will I notice in game loading on PS5?

Game load times on PS5 are already fast on the internal SSD; the MP600 Elite matches that performance tier closely with its 7,000MB/s read speed. The primary benefit is capacity expansion — you can store and launch large titles directly from the drive without the speed penalty of external USB storage or the need to constantly shuffle games back to internal storage.

Is 1TB enough for PS5 game storage expansion?

Modern AAA game titles average 50–100GB, meaning 1TB accommodates roughly 10–20 large games simultaneously. For players with libraries of 10–15 active titles, 1TB provides meaningful relief without requiring a full audit of installed games. Players with 40+ titles may want to evaluate 2TB options depending on their active rotation.
