Corsair CSSD-F2000GBMP700PNH MP700 PRO 2TB Gen5 NVMe SSD

Name: Corsair CSSD-F2000GBMP700PNH MP700 PRO 2TB Gen5 NVMe SSD
Brand: Corsair
SKU: CSSD-F2000GBMP700PNH

Overview

Sequential read speeds of 12,400MB/sec and writes of 11,800MB/sec aren't incremental upgrades over Gen4 — they represent a near-doubling of the bandwidth ceiling that has defined high-end NVMe storage for the past several years. The Corsair MP700 PRO 2TB achieves this via a PCIe Gen5 x4 interface combined with the NVMe 2.0 command set, which reduces protocol overhead on each I/O operation. In practice, that means Windows boot sequences measured in seconds, large video project file opens that don't stall the timeline, and game load screens that compress to near-instant. The 2TB 3D TLC NAND array provides the storage density to house a substantial game library or professional project archive without filling the drive — which matters because TLC performance can degrade when capacity exceeds 80–85%.

This drive is built for the current generation of Intel and AMD enthusiast platforms — Z790, X670, and their successors — where the PCIe 5.0 M.2 slot is standard. Installed in a Gen4 system, it functions but saturates at Gen4 bandwidth limits, making the premium hard to justify. The NH (No Heatsink) designation is important to understand before purchasing: Gen5 controllers generate enough heat under sustained load to trigger thermal throttling without active cooling, so budget for a motherboard M.2 cover or third-party heatsink. Microsoft DirectStorage adds a forward-looking capability: in compatible titles, the GPU pulls asset data directly from the NVMe device, bypassing CPU decompression entirely — a workflow that Gen5 bandwidth enables more completely than any prior storage tier.

Key Features

Gen5 Performance Powered by NVMe 2.0: PCIe Gen5 x4 combines with the massively high-bandwidth NVMe 2.0 interface to unleash higher-speed data transfers and greater M.2 SSD performance than ever before. *SSD cooling required.

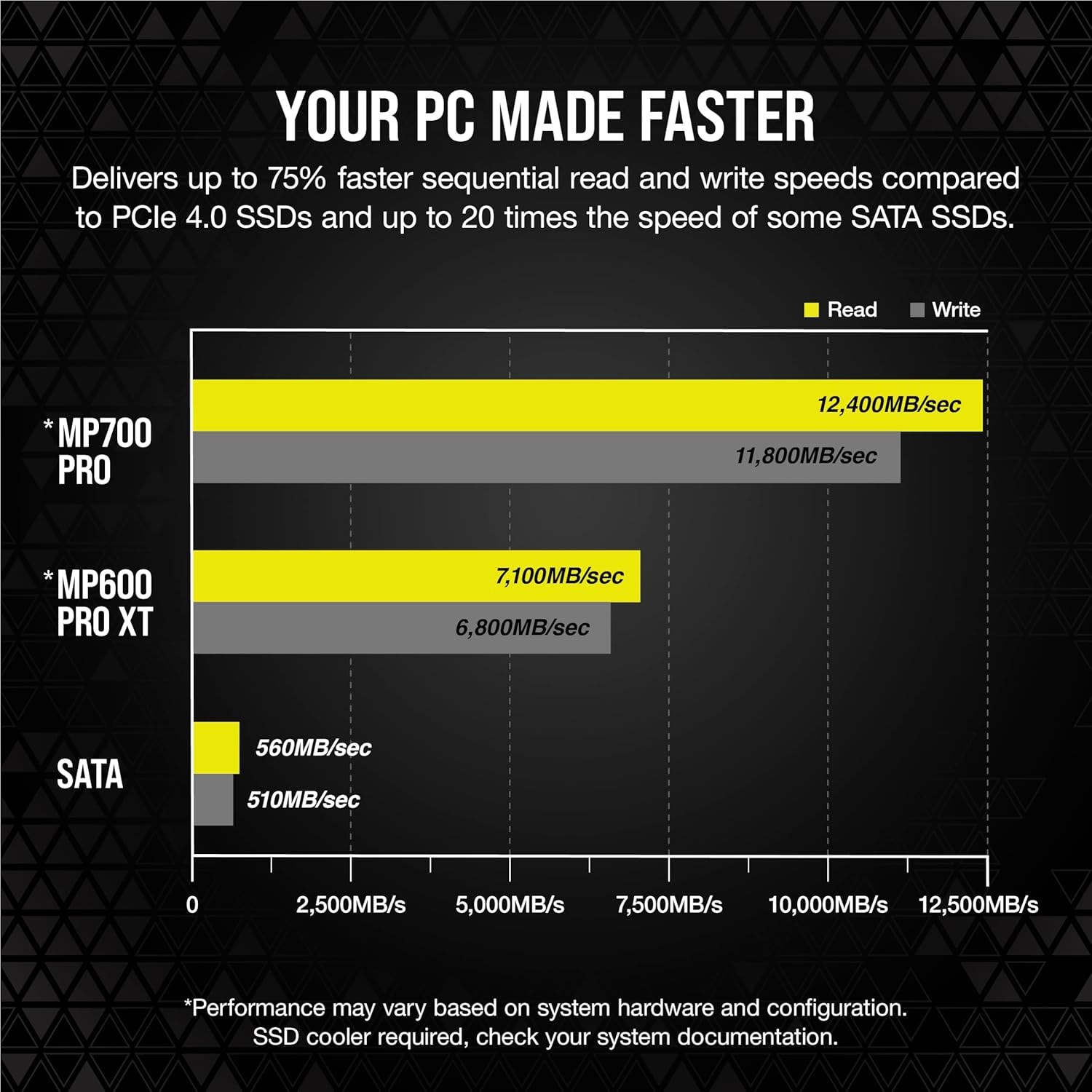

Your PC Made Faster: Load games, boot Windows, and manage large files with unprecedented speed, reaching up to 12,400MB/sec sequential read and 11,800MB/sec sequential write speeds. **Performance and endurance vary by capacity

Wide Compatibility: Supports the latest PCIe 5.0 architecture of Intel Z790 and AMD X670 platforms and beyond.

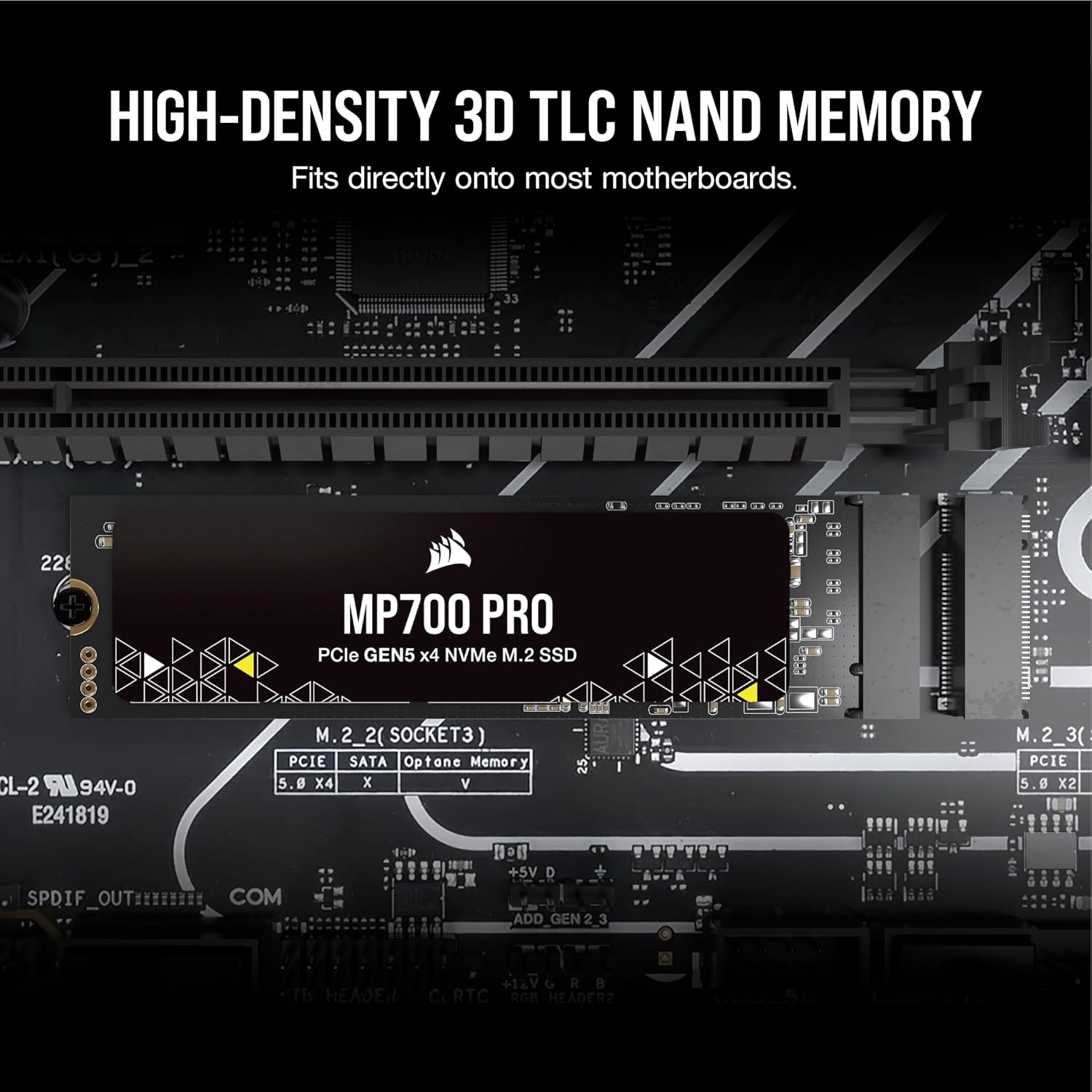

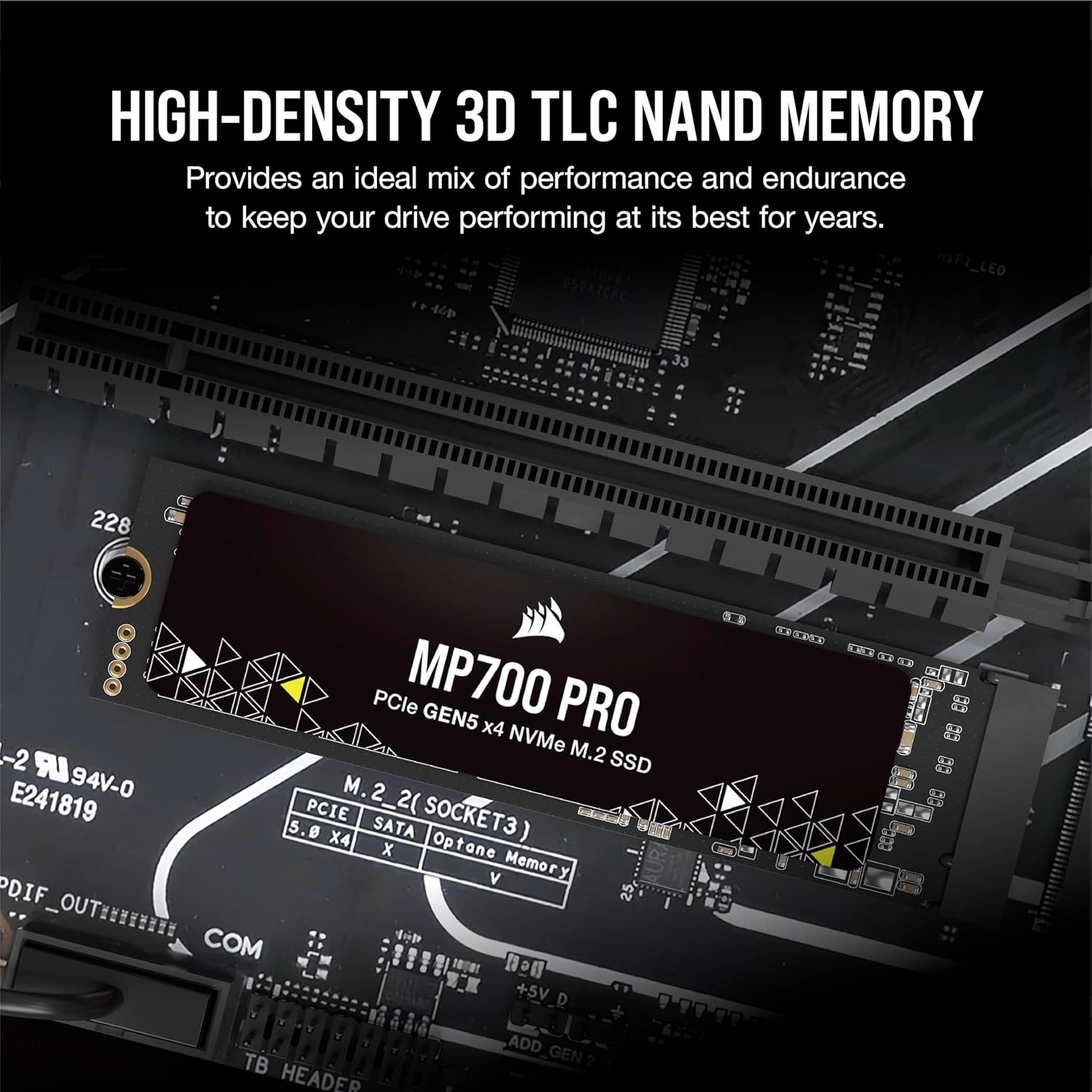

High-Density 3D TLC NAND: Provides the ideal mix of performance and endurance to keep your drive performing at its best for years.

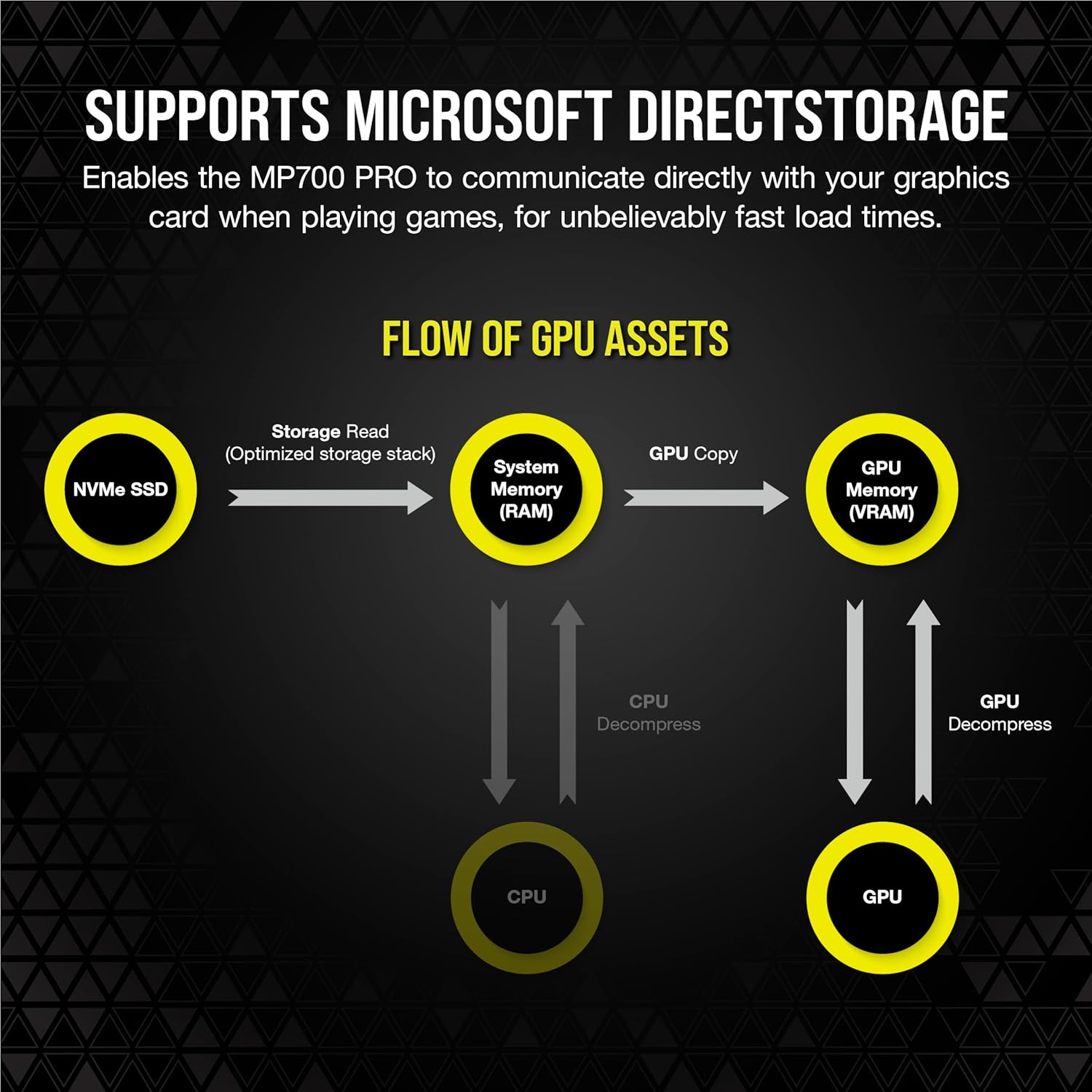

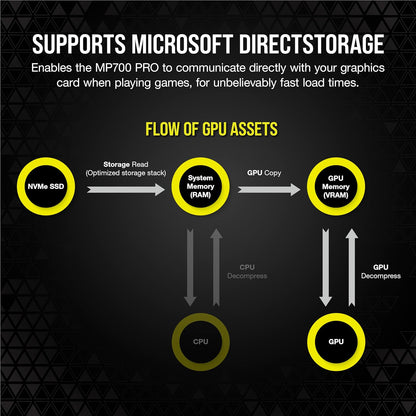

Microsoft DirectStorage: Enables the MP700 PRO to communicate directly with your graphics card when playing compatible games, for unbelievably fast load times. ***DirectStorage requires a DirectX12 GPU with Shader Model 6.0 support.

Specifications

Capacity

2TB

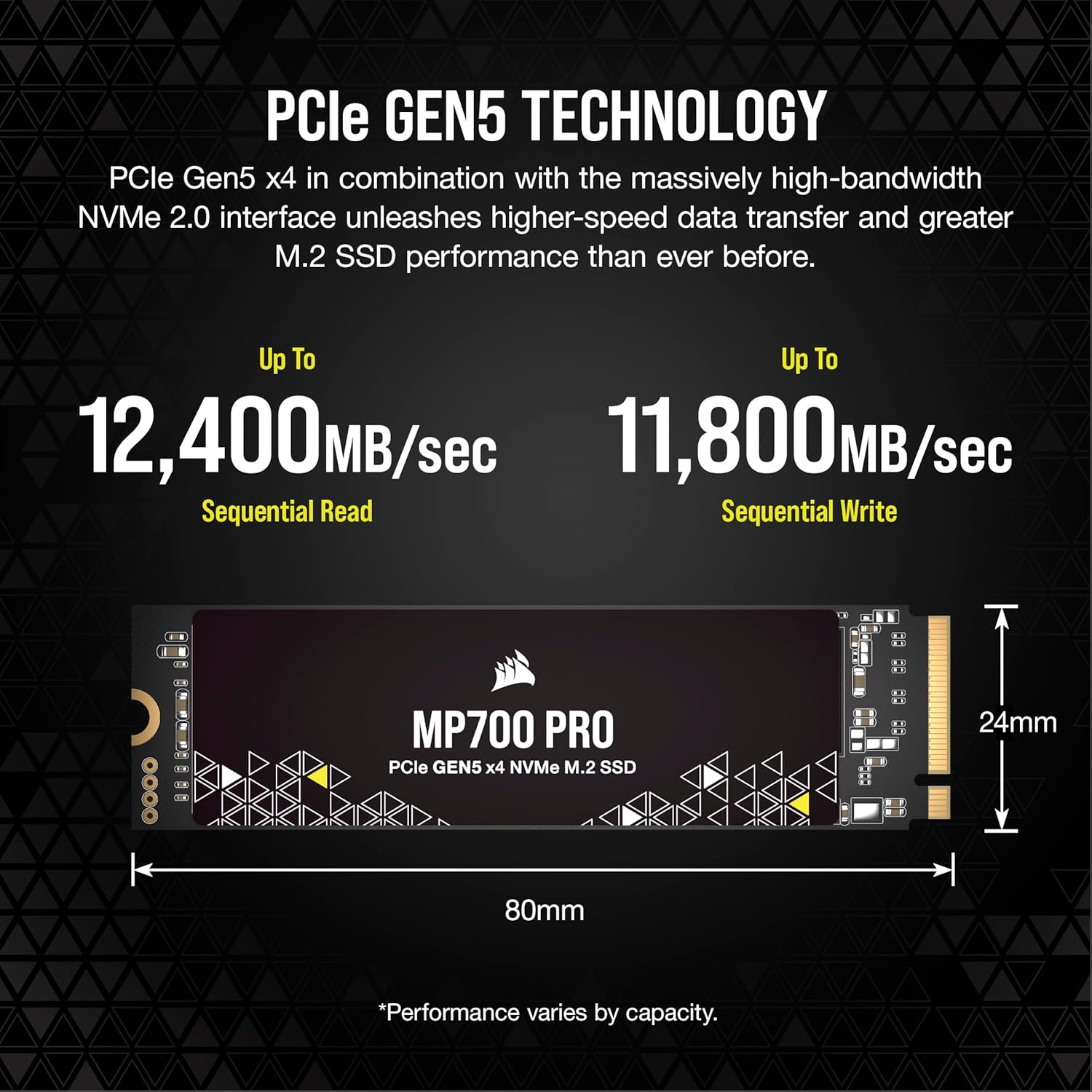

Form Factor

M.2 2280

Interface

PCIe Gen5 x4, NVMe 2.0

Sequential Read Speed

Up to 12,400MB/sec

Sequential Write Speed

Up to 11,800MB/sec

NAND Type

High-Density 3D TLC

Platform Compatibility

Intel Z790, AMD X670 and newer PCIe 5.0 platforms

Heatsink Included

No (NH variant — cooling required)

DirectStorage

Yes (requires DirectX12 GPU, Shader Model 6.0)

Model

CSSD-F2000GBMP700PNH

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

12,400MB/sec sequential read is a generational ceiling — no current SATA or Gen4 NVMe drive approaches this bandwidth
NVMe 2.0 interface reduces command overhead compared to NVMe 1.x, improving latency per I/O operation at a protocol level
Microsoft DirectStorage compatibility delivers GPU-direct asset loading in supported titles, reducing in-game load stall times
High-density 3D TLC NAND provides a strong endurance-to-cost ratio for enthusiast desktop workloads
2TB capacity eliminates the drive-juggling required when a game library outgrows a 1TB primary SSD

👎 Cons

No heatsink included on the NH variant — a Gen5 M.2 heatsink or motherboard cover is mandatory, not optional, for sustained performance
PCIe Gen5 M.2 slots remain limited to Z790, X670, and newer platforms — users on Gen4 motherboards get half the rated speed
Gen5 controller idle power draw is higher than Gen4, contributing measurably to system power consumption in always-on workstation environments
Price per gigabyte is premium over Gen4 equivalents — the performance gap only justifies the cost delta in bandwidth-intensive workloads
Thermal throttling under sustained sequential write is still a real behavior even with a heatsink, depending on ambient temperature and airflow

Frequently Asked Questions

What motherboard is required to get full Gen5 performance from this SSD?

PCIe 5.0 M.2 slots are required — currently found on Intel Z790/Z890 and AMD X670/X870 platforms. Installed in a PCIe 4.0 slot, the drive functions normally but performance caps at Gen4 speeds (approximately 7,000MB/sec read), cutting the rated throughput roughly in half.

Why does this SSD require active cooling, and what happens without it?

Gen5 controllers run significantly hotter than Gen4 under sustained load — the Phison E26 and similar controllers can exceed 70°C without a heatsink, triggering thermal throttling that reduces speeds substantially. Corsair does not include a heatsink on this NH (No Heatsink) variant; use your motherboard's M.2 heatsink cover or a third-party thermal solution.

What does Microsoft DirectStorage actually change for gaming versus a Gen4 SSD?

DirectStorage allows the GPU to decompress game assets directly from NVMe storage, bypassing the CPU bottleneck in the I/O pipeline. At Gen5 speeds, this compounds: asset streaming in compatible titles is noticeably faster at load screens and open-world traversal. Gen4 drives can use DirectStorage too, but the bandwidth ceiling limits how much of the latency improvement is realized.

Is 3D TLC NAND a durability concern for heavy write workloads?

At 2TB capacity, the drive's TBW (terabytes written) rating is substantial — well suited for enthusiast gaming, video editing, and general workstation use. TLC's endurance is meaningfully lower than SLC or MLC under sustained write-heavy server workloads, but for desktop use cases the drive will outlast typical ownership cycles without reaching TBW limits.

Does this SSD work in a PS5?

No. The PS5's M.2 slot supports PCIe Gen4 NVMe drives only. Inserting a Gen5 drive will not damage the console, but the drive will not function — the PS5 does not support PCIe 5.0.
