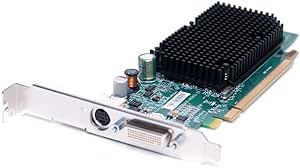

Dell ATI-102-A924 B Radeon X1300 256MB PCI-E Graphics Card

The Dell ATI Radeon X1300 is a first-generation PCIe graphics card built on ATI's X1000 architecture, equipped with 256MB of DDR3 memory over a 64-bit memory bus. In raw numbers, that bus width is the card's defining constraint — 64 bits limits memory bandwidth to roughly 12.8 GB/s at DDR3 speeds, which was acceptable for single-monitor 1280×1024 desktop use in its era but becomes the binding bottleneck in any demanding scenario. The PCIe x16 interface is technically capable of much higher bandwidth, but the GPU itself is the limiting factor long before the bus saturates. This is a DirectX 9.0c-class card, meaning it supports Shader Model 3.0 but nothing from the DirectX 10 era forward.

The practical use case for this card in 2024 is narrow but clear: it is a direct replacement part for Dell desktops — OptiPlex, Dimension, or Precision systems — that shipped with an X1300 and need a functional GPU to drive a single display. IT departments maintaining legacy Windows XP or Windows 7 workstations, point-of-sale systems, or industrial control computers running older software will find this card fills that role without requiring system-level changes. It is not a gaming card, not a media card, and not suitable for any workload that references GPU compute. For basic office applications, web browsing on older browsers, and standard-definition video playback via CPU decode, it performs its intended function without issue.
