Dell

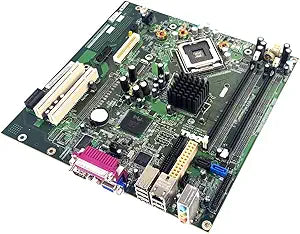

Dell PJ479 Intel 945G Motherboard - Optiplex GX520
USB 2.0
Upgrade Your System with a Reliable Genuine Dell MotherboardThe Genuine Dell Intel 945G Express Motherboard is designed for Optiplex GX520 Desktop Systems. This motherboard provides a reliable foundation for your system, supporting Intel Pentium and Celeron processors, DDR2 memory, and integrated...
View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Upgrade Your System with a Reliable Genuine Dell Motherboard
The Genuine Dell Intel 945G Express Motherboard is designed for Optiplex GX520 Desktop Systems. This motherboard provides a reliable foundation for your system, supporting Intel Pentium and Celeron processors, DDR2 memory, and integrated audio and video capabilities. It's an ideal replacement or upgrade for your Dell Optiplex GX520.
Specifications:
- Chipset: Intel 945G Express
- Processor Socket: Socket 775 (Intel Pentium D, Intel Pentium 4, Intel Celeron)
- Memory: 2x DDR2 SDRAM (400/533 MHz), 4GB Max Total
- Audio: Integrated 2.1 AC'97 Sound
- Video: Integrated Intel GMA 950
- Expansion Slots: 1x PCI 32bit, 1x PCI 32/64bit
-
Peripheral Interfaces:
- 1x SATA Connector
- 1x VGA Monitor Connector
- 1x Serial Connector
- 1x Parallel Connector
- 1x RJ45 Ethernet/LAN Port
- 6x USB 2.0 (Back Panel)
- 3x Audio Connectors (Back Panel)
Key Features
Genuine Dell Motherboard For Optiplex GX520 Desktop Systems
Chipset: Intel 945G Express; Processor: Socket 775, Intel Smithfield Pentium D, Intel Prescott Pentium 4, Intel Celeron; Memory: 2x 400/533 MHz DDR2 SDRAM, 4 GB Max Total
Audio: Integrated 2.1 AC'97 Sound; Video: Integrated Intel GMA 950
Expansion Capabilities: 1x PCI 32bit, 1x PCI 32/64bit
Peripheral Interfaces: 1x SATA Connector, 1x VGA Monitor Connector, 1x Serial Connector, 1x Parallel Connector, 1x RJ45 Ethernet/LAN Port, 6x back-panel USB 2.0–compliant connectors, 3x back panel audio connectors
Specifications
Brand
Dell
Model
PJ479
Chipset
Intel 945G Express
Compatible Systems
Dell Optiplex GX520 Desktop
Processor Socket
Socket 775
Supported Processors
Intel Smithfield Pentium D, Intel Prescott Pentium 4, Intel Celeron
Memory Slots
2x DDR2 SDRAM
Maximum Memory
4 GB Total
Memory Speed
400/533 MHz
Integrated Audio
2.1 AC'97 Sound
Integrated Video
Intel GMA 950
PCI Slots
1x PCI 32bit, 1x PCI 32/64bit
SATA Connectors
1x
VGA Connector
1x
Serial Connector
1x
Parallel Connector
1x
Ethernet Port
1x RJ45
USB 2.0 Ports
6x (back-panel)
Audio Connectors
3x (back panel)
Frequently Asked Questions
Which Dell desktop systems is this motherboard compatible with?
This Dell PJ479 Intel 945G Motherboard is specifically designed for Dell Optiplex GX520 Desktop Systems, ensuring genuine compatibility.
What types of processors does this motherboard support?
This motherboard supports Intel Socket 775 processors, including the Intel Smithfield Pentium D, Intel Prescott Pentium 4, and Intel Celeron CPU families.
What is the maximum amount of RAM this motherboard can handle?
The motherboard features two DDR2 SDRAM slots and can support a maximum total memory of 4 GB, running at 400/533 MHz.
Does this motherboard have integrated graphics and audio?
Yes, it includes integrated Intel GMA 950 for video and integrated 2.1 AC'97 Sound for audio, providing essential multimedia functionalities.
How many USB 2.0 ports are available on the back panel of this motherboard?
The Dell PJ479 motherboard provides six back-panel USB 2.0-compliant connectors for various peripheral connections.
