DJI 6941565969644 Power Solar Panel Adapter MPPT
★★★★★
Harness the Power of the Sun with Efficient Solar ChargingIntroducing the DJI Power Solar Panel Adapter Module (MPPT), designed to seamlessly integrate with DJI Power series stations, enabling eco-friendly solar recharging. This adapter optimizes energy conversion, allowing you to efficiently cha...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Harness the Power of the Sun with Efficient Solar Charging
Introducing the DJI Power Solar Panel Adapter Module (MPPT), designed to seamlessly integrate with DJI Power series stations, enabling eco-friendly solar recharging. This adapter optimizes energy conversion, allowing you to efficiently charge your power stations using solar panels. Recommended for use with DJI-certified Zignes solar panels, it ensures compatibility and reliable performance.
- Compatibility: DJI Power 1000, DJI Power 500, Zignes solar panels
- Input Voltage: 12-30 V, DC
- Max Input Current (Single Channel): 10 A
- Max Input Current (Triple Channels): 16 A
- Max Output Power (Single Channel): 200 W
- Max Output Power (Triple Channels): 400 W (with DJI Power 1000), 300 W (with DJI Power 500)
Key Features
One MPPT module can connect to up to three solar panels.
To use solar panels not officially recommended by DJI, and to prevent damage to the MPPT module and the power station, ensure the open-circuit voltage of the solar panel is less than 30 V. The power output of each solar panel should not exceed 200 W, with the total output power of solar panels connected to the entire MPPT module capped at 400 W.
While using solar panels with the MPPT module, install the included metal heat dissipation bracket.
When used with the DJI Power 500, the max output power of the solar panels connected to the entire adapter module should be exceed 300W.

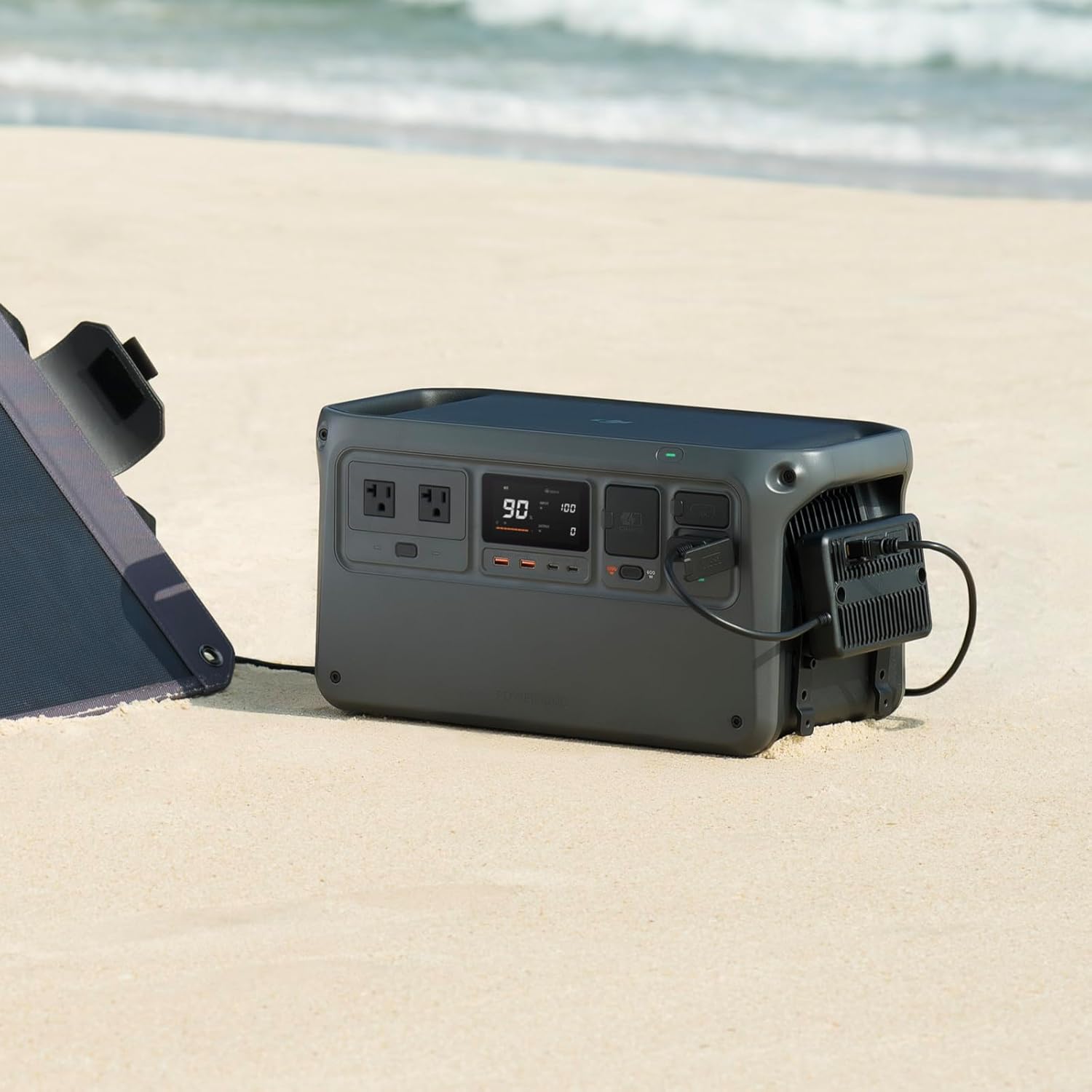

Can connect to the DJI Power series and DJI-certified Zignes solar panels, facilitating eco-friendly solar recharging for the DJI Power series.

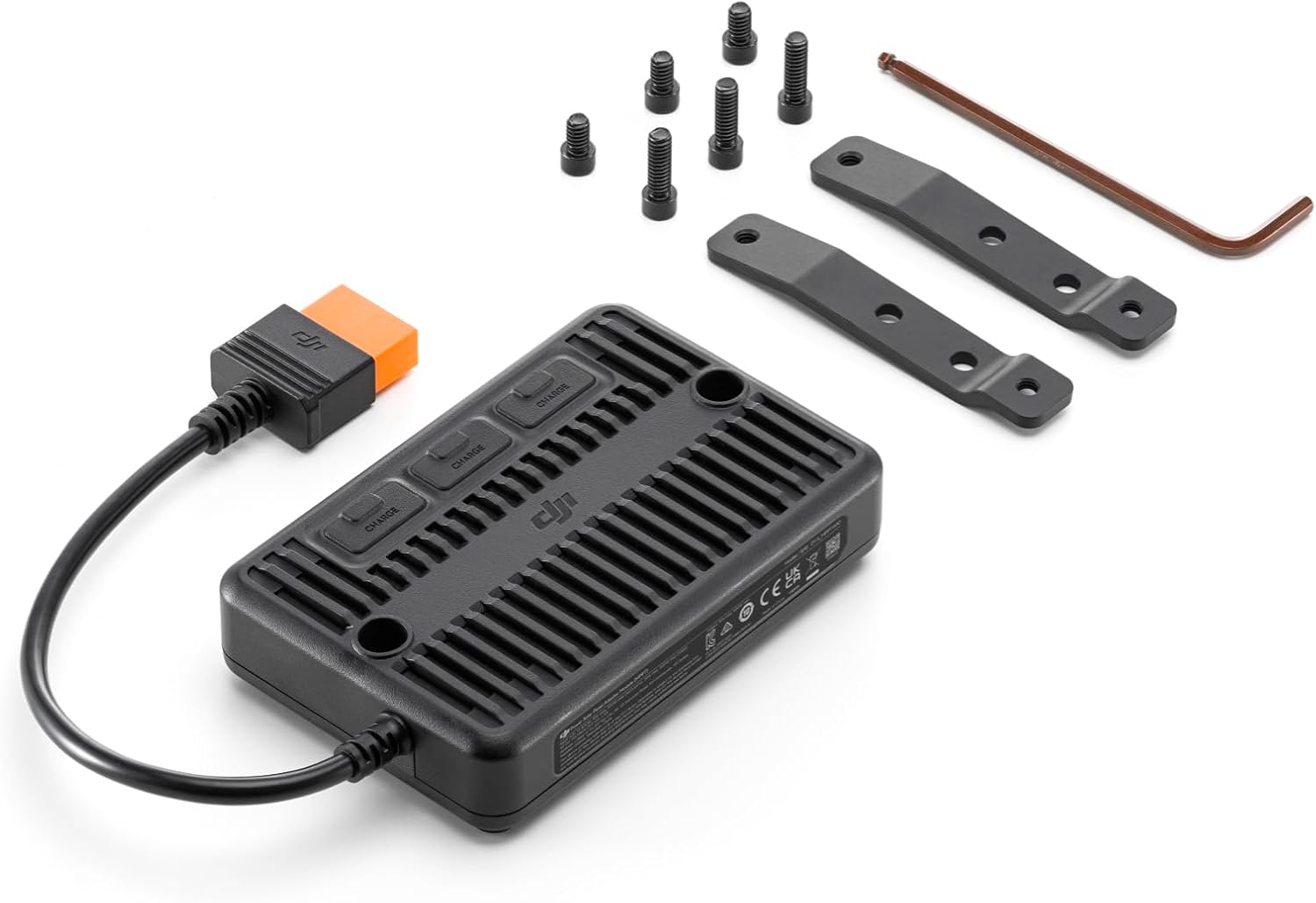

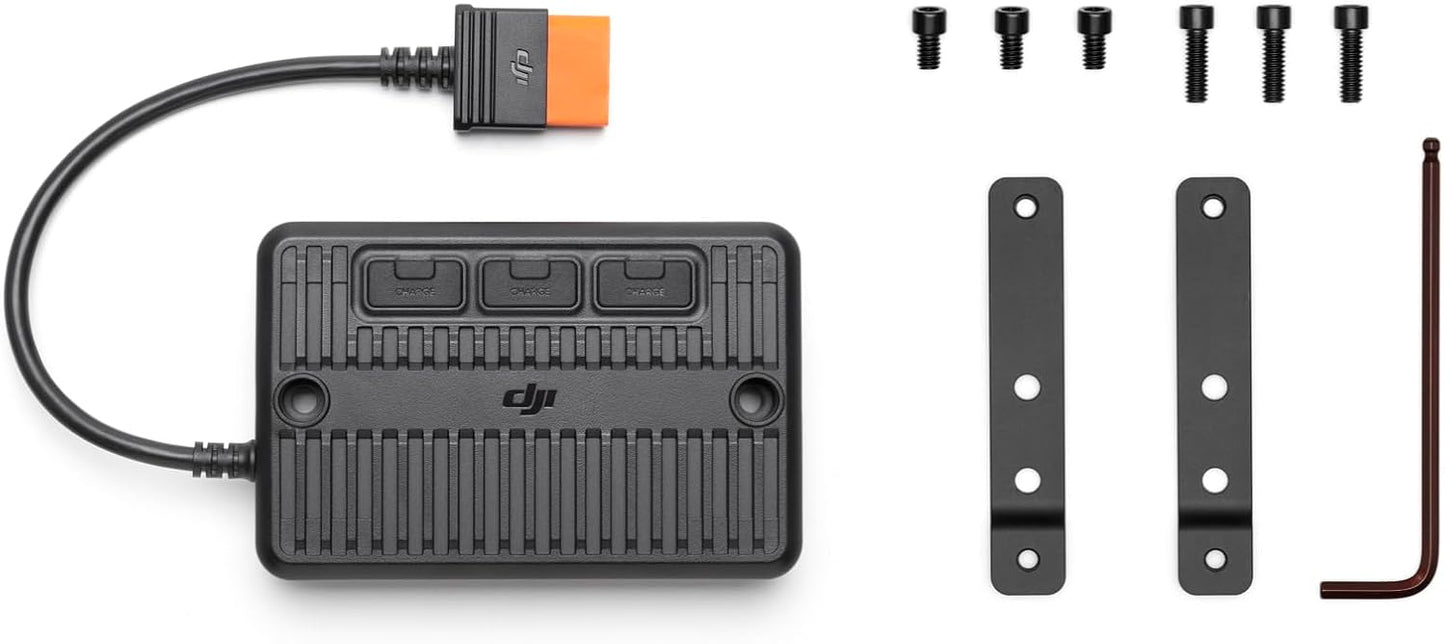

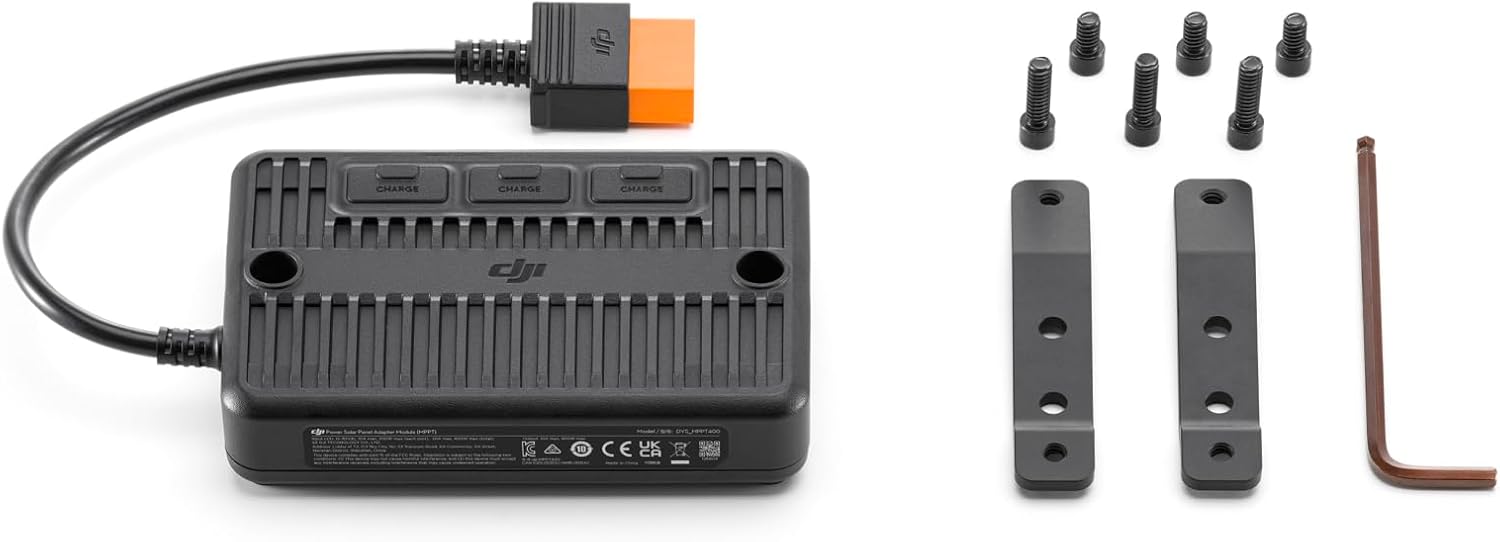

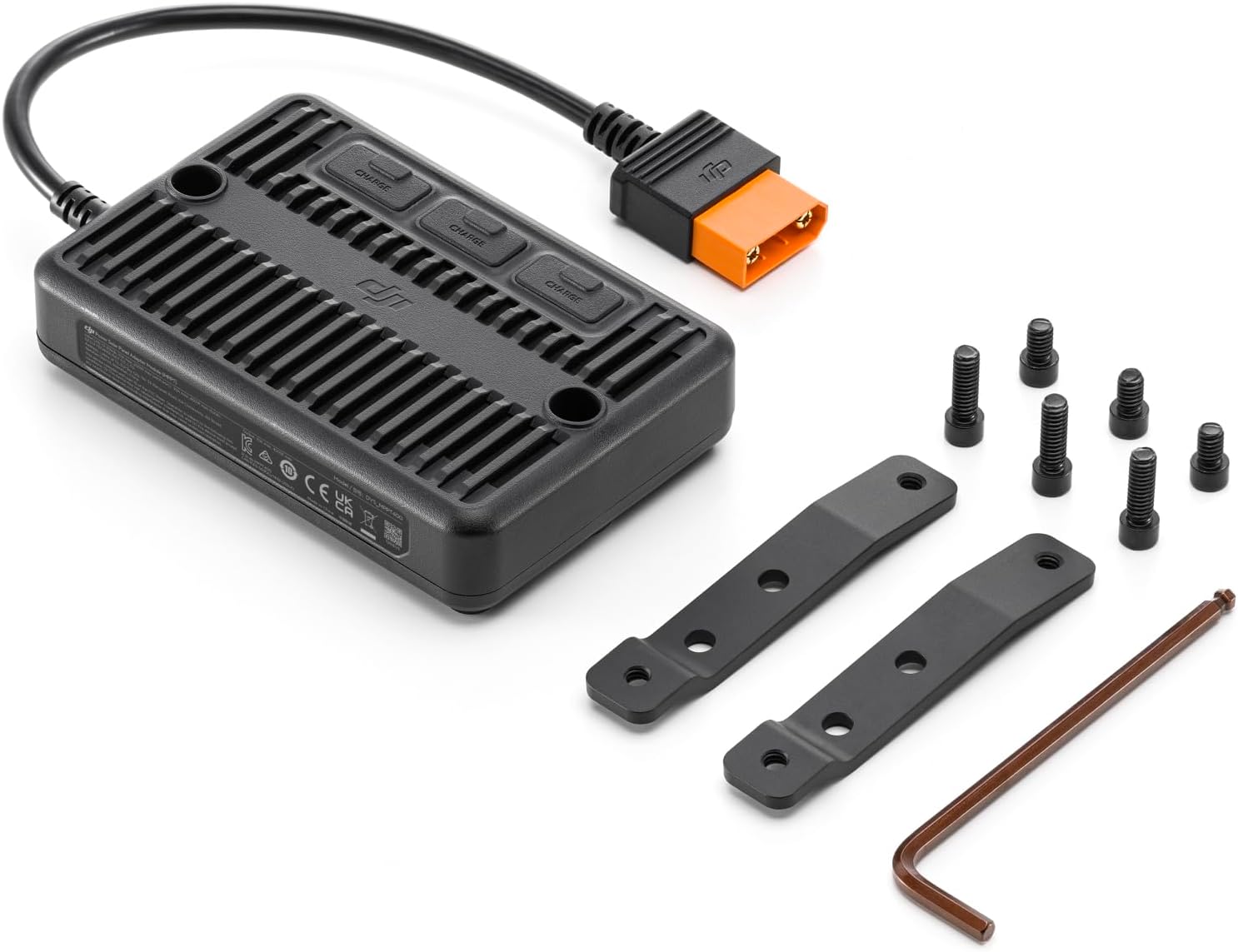

DJI Power Solar Panel Adapter Module (MPPT) × 1 Metal Heat Dissipation Bracket × 2 Ball-End Hey Key × 1 10mm Screw × 3 20mm Screw × 3
Total Output: Single Channel: Max 200 W Triple Channels: Max 400 W (with DJI Power 1000) Max 300 W (with DJI Power 500) Input Voltage: 12-30 V, DC Max Input Current: Single Channel: 10 A Triple Channels: 20 A Operating Temperature: -10° to 45° C (41° to 113° F)
Compatible with DJI Power 1000 V2, DJI Power 2000, DJI Power 1000, DJI Power 500
Specifications
Module Type
MPPT Solar Panel Adapter
Max Solar Panels per Module
3
Recommended Open-Circuit Voltage (Non-DJI Panels)
< 30 V
Max Power Output per Solar Panel
200 W
Max Total Output Power (with DJI Power 1000)
400 W
Max Total Output Power (with DJI Power 500)
300 W
Input Voltage Range
12-30 V DC
Max Input Current (Single Channel)
10 A
Max Input Current (Triple Channels)
20 A
Operating Temperature
-10° to 45° C (41° to 113° F)
Compatibility
DJI Power 1000 V2, DJI Power 2000, DJI Power 1000, DJI Power 500
Pros & Cons
👍 Pros
- One MPPT module allows connection of up to three solar panels, enhancing solar input flexibility.
- Designed to connect with DJI Power series and DJI-certified Zignes solar panels for integrated eco-friendly recharging.
- Includes necessary accessories such as a metal heat dissipation bracket and screws for installation.
- Features broad compatibility with multiple DJI Power station models, including the Power 1000 V2 and 2000.
- Supports a maximum total output of 400 W when used with DJI Power 1000, offering substantial charging power.
👎 Cons
- Requires the included metal heat dissipation bracket to be installed when using solar panels to prevent damage.
- Total output power is capped at 300W when connected to the DJI Power 500, which is less than its full potential with other models.
- To prevent damage, solar panels not officially recommended by DJI must have an open-circuit voltage less than 30V.
- Individual solar panel power output must not exceed 200W, limiting the size and type of panels that can be used per channel.
- Maximum input current for triple channels is 20A, which could be a limiting factor for very high-power solar setups.
Frequently Asked Questions
How many solar panels can be connected to a single DJI Power Solar Panel Adapter module?
A single MPPT module can connect to up to three solar panels, offering flexibility for your solar charging setup.
What are the voltage restrictions for using third-party solar panels with this adapter?
For third-party solar panels not officially recommended by DJI, ensure their open-circuit voltage is less than 30V to prevent damage to the MPPT module and power station.
Is there a maximum power output limit for individual solar panels connected to this adapter?
Yes, the power output of each individual solar panel connected should not exceed 200W to maintain proper operation and prevent damage.
Do I need to install any additional components when using solar panels with this MPPT module?
Yes, it is necessary to install the included metal heat dissipation bracket when using solar panels with the MPPT module to ensure optimal performance and prevent overheating.
What is the maximum total output power this adapter supports with different DJI Power station models?
The maximum total output is 400W with DJI Power 1000/2000 models, and 300W with the DJI Power 500.
Which DJI Power series stations are compatible with this solar panel adapter?
This adapter is compatible with the DJI Power 1000 V2, DJI Power 2000, DJI Power 1000, and DJI Power 500.
What is the operating temperature range for the DJI Power Solar Panel Adapter Module?
The operating temperature range for this module is -10° to 45° C (41° to 113° F), allowing for use in various environmental conditions.
