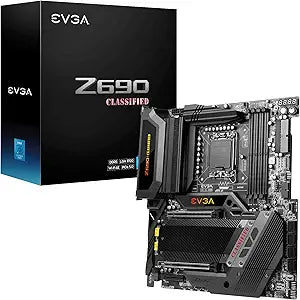

EVGA 121-AL-E698-KR Z690 Classified Intel Motherboard
★★★★★
USB 3.2WiFi 6EPCIe Gen5
Unleash the Power of 12th Gen Intel with the EVGA Z690 Classified Motherboard The EVGA Z690 Classified is a high-end motherboard designed for gaming enthusiasts and power users. Supporting 12th Gen Intel Core processors, PCIe Gen5, and fast M.2 storage, this motherboard delivers exceptional perf...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash the Power of 12th Gen Intel with the EVGA Z690 Classified Motherboard
The EVGA Z690 Classified is a high-end motherboard designed for gaming enthusiasts and power users. Supporting 12th Gen Intel Core processors, PCIe Gen5, and fast M.2 storage, this motherboard delivers exceptional performance and connectivity. Built with premium components and customizable ARGB lighting.
Specifications:
- Brand: EVGA
- Model: Z690 Classified (121-AL-E698-KR)
- Chipset: Intel Z690
- Socket: LGA 1700
- Form Factor: EATX
- Memory: 4 DIMM Dual-Channel DDR5 (up to 128GB 6400MHz+(OC))
- Expansion Slots: PCIe Gen5
- Storage: 8 SATA 6Gb/s, 3x M.2 Key-M 110mm, 1x M.2 Key-E 32mm (with WiFi 6E/BT 5.2)
- USB Ports: 9 USB 3.2 Gen2 (6x Type A, 2x Type-C Gen2x2, 1x Type-C Header)
- LAN: 2x Intel 2.5 Gb/s NICs
- Video Output: HDMI 2.0a, DP 1.4
- Lighting: Onboard ARGB lighting + 2x ARGB / 2x RGB Headers
Key Features
Intel Z690 Chipset, Supports 12th Gen Intel Core processors for LGA1700 socket
PCIe Gen5, M.2 Gen4, EATX Form Factor, 10 Layer PCB, 19 Phase PWM, Metal Reinforced PCIe Slots, NVIDIA SLI Ready, Preinstalled rear I/O cover
4 DIMM Dual-Channel supports up to 128GB 6400MHz+(OC), 9 USB 3.2 Gen2 Ports (6x Type A, 2x Type-C Gen2x2, 1x Type-C Header)
8 SATA 6Gb/s, 3x M.2 Key-M 110mm, 1x M.2 Key-E 32mm with installed WiFi 6E/BT 5.2, HDMI 2.0a+DP 1.4 outputs, 2x Intel 2.5 Gb/s NICs
Onboard ARGB lighting + 2x ARGB / 2x RGB Headers fully customizable through EVGA ELEET X1
Specifications
Chipset
Intel Z690
CPU Socket
LGA1700
Supported Processors
12th Gen Intel Core
PCIe Standard
PCIe Gen5
M.2 Standard
M.2 Gen4
Form Factor
EATX
PCB Layers
10 Layer
PWM Phases
19 Phase
Memory Slots
4 DIMM Dual-Channel
Max Memory Capacity
128GB
Max Memory Speed (OC)
6400MHz+
USB 3.2 Gen2 Ports
9 (6x Type A, 2x Type-C Gen2x2, 1x Type-C Header)
SATA 6Gb/s Ports
8
M.2 Key-M Slots
3x 110mm
M.2 Key-E Slot
1x 32mm (with WiFi 6E/BT 5.2)
Video Outputs
HDMI 2.0a, DP 1.4
Ethernet NICs
2x Intel 2.5 Gb/s
Wireless Connectivity
WiFi 6E, BT 5.2
RGB Headers
Onboard ARGB lighting + 2x ARGB / 2x RGB Headers
Pros & Cons
👍 Pros
- Supports 12th Gen Intel Core processors for the LGA1700 socket, offering compatibility with current high-performance CPUs.
- Features PCIe Gen5 and M.2 Gen4, providing cutting-edge speeds for graphics cards and NVMe SSDs.
- Equipped with 4 DIMM Dual-Channel slots supporting up to 128GB of 6400MHz+(OC) DDR4 RAM, allowing for extensive memory configurations.
- Includes 9 USB 3.2 Gen2 ports (6x Type A, 2x Type-C Gen2x2, 1x Type-C Header) for broad peripheral connectivity.
- Comes with 8 SATA 6Gb/s ports and 3x M.2 Key-M 110mm slots, offering diverse storage options.
- Integrated with WiFi 6E/BT 5.2 and dual Intel 2.5 Gb/s NICs for high-speed wireless and wired networking.
- Features onboard ARGB lighting and 2x ARGB / 2x RGB Headers, customizable through EVGA ELEET X1 for aesthetic personalization.
👎 Cons
- The EATX Form Factor is larger than standard ATX, which may limit compatibility with smaller PC cases.
- Requires 12th Gen Intel Core processors, making it unsuitable for users with older CPU generations.
- Utilizing 6400MHz+(OC) RAM requires careful selection of memory modules and proper configuration to achieve advertised speeds.
- While robust, the 19 Phase PWM design may generate more heat than simpler power solutions under heavy load without adequate cooling.
- The motherboard's advanced features and high-end specifications might be overkill for a casual PC user, potentially incurring unnecessary cost.
- Specific details on power consumption and overall thermal design are not provided.
Frequently Asked Questions
Which Intel processors are compatible with the EVGA Z690 Classified motherboard?
The EVGA Z690 Classified motherboard supports 12th Gen Intel Core processors designed for the LGA1700 socket.
What are the maximum RAM capacity and speed supported by this motherboard?
This motherboard features 4 DIMM Dual-Channel slots and supports up to 128GB of DDR4 RAM at speeds of 6400MHz+(OC).
What high-speed storage interfaces are available on this motherboard?
It includes PCIe Gen5 and M.2 Gen4 slots, along with 3x M.2 Key-M 110mm slots for high-speed NVMe SSDs.
Does this motherboard come with built-in Wi-Fi and Bluetooth?
Yes, it includes an M.2 Key-E 32mm slot with installed WiFi 6E and Bluetooth 5.2 for wireless connectivity.
How many USB 3.2 Gen2 ports are available on this motherboard?
The motherboard provides a total of 9 USB 3.2 Gen2 ports, including 6x Type A, 2x Type-C Gen2x2, and 1x Type-C Header.
What form factor is the EVGA Z690 Classified motherboard?
This motherboard features an EATX Form Factor, which is larger than standard ATX motherboards.
Can the onboard lighting be customized?
Yes, it has onboard ARGB lighting along with 2x ARGB and 2x RGB Headers, all fully customizable through EVGA ELEET X1 software.
