FEELWORLD T51-H Triple 5" 2RU Rack Mount Broadcast Monitor

Name: FEELWORLD T51-H Triple 5" 2RU Rack Mount Broadcast Monitor
Brand: FEELWORLD
SKU: T51

★★★★★2.5 (2 reviews)

Three independent 5" broadcast monitors in a single 2RU rack — tally lights, peaking assist, and loop-through outputs built in.

$478.00*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

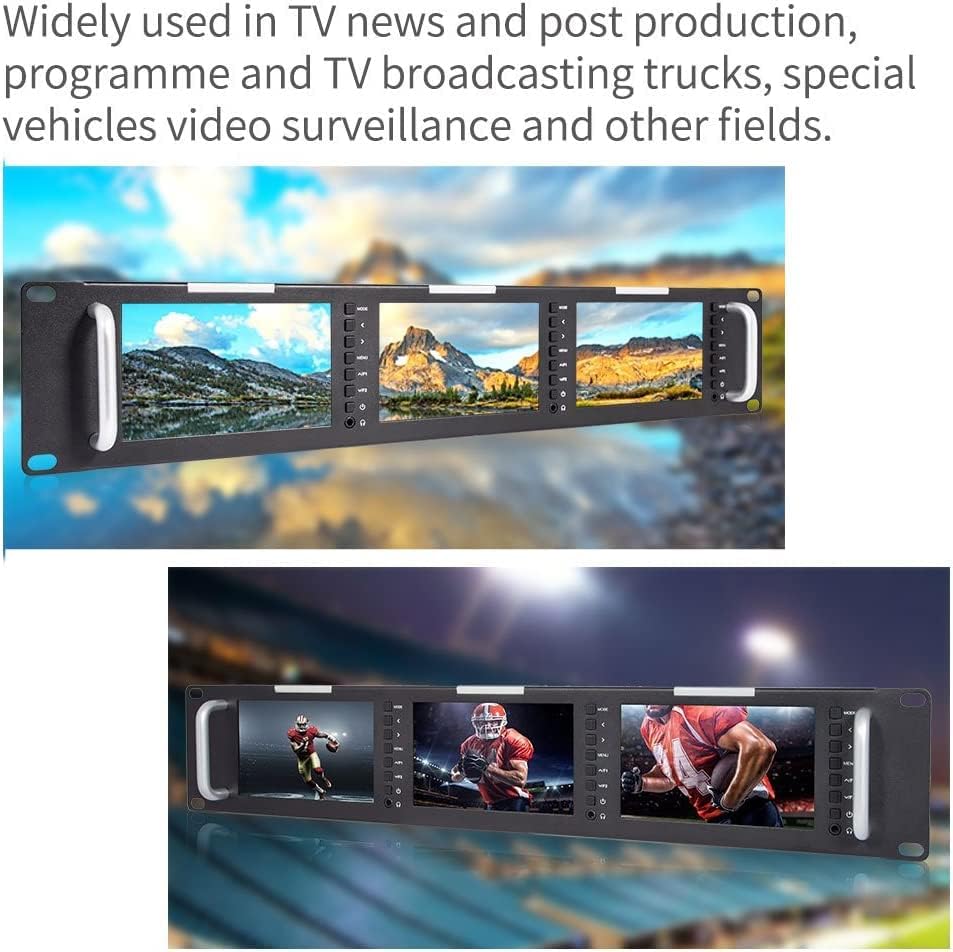

The FEELWORLD T51-H puts three independent 5-inch TFT LCD panels into a 2RU all-metal chassis, giving production teams a compact monitoring solution for multi-camera broadcast, streaming, or studio recording environments. Each panel operates at 800×480 resolution with 500 cd/m² brightness and a 140°/120° horizontal/vertical viewing angle — specifications that suit operator-level monitoring at typical rack-viewing distances. The triple-screen layout means a director or technical operator can simultaneously watch program, preview, and a dedicated ISO feed, or any three-source combination, without stacking individual monitors or sprawling across a wider rack shelf. Critically, each screen maintains full input independence: switching, tally assignment, and monitoring tools operate per-panel.

Built for live production workflows, the T51-H includes a three-color tally system (Red, Green, Yellow) per screen, controlled via rear DB-15 ports — a standard integration point for production switchers on theatrical, broadcast, and house-of-worship installs. Monitoring tools include peaking focus assist, check field modes, pixel-to-pixel mapping, image flip and freeze, and customizable color temperature, covering the core toolset a camera operator or technical director needs during a shoot. HDMI and CVBS loop-through on each screen supports downstream signal distribution. The included power adapter, tally kit, and cast-iron carry handles make this a travel-friendly unit for mobile production racks. It is not a color-accurate reference monitor and should not replace a calibrated display in a grading suite — but as a purpose-built multi-screen confidence monitor for live environments, it consolidates three monitoring positions into a single, tidy 2RU slot.

Key Features

【Triple 5" 2RU Rack Monitors】Three 5" displays in a slim, all-metal 2 RU rackmount with cast-iron handgrips.

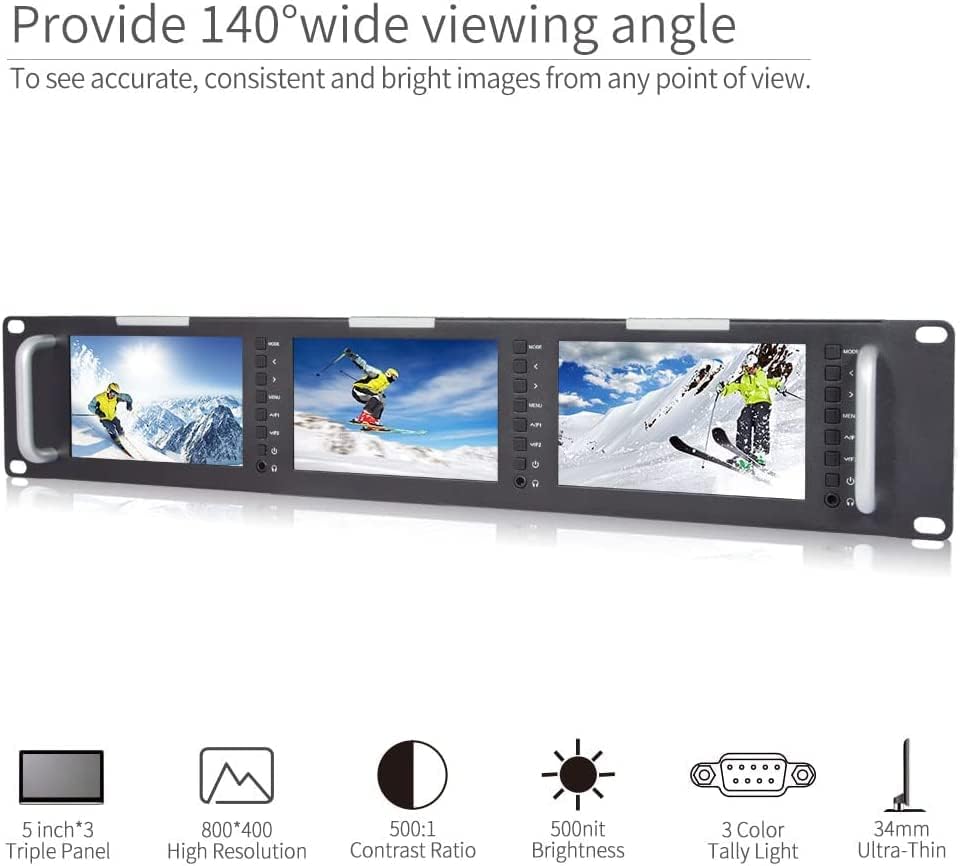

【TFT Panel with LED backlight】The T51-H is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The viewing angle is Horizontal: 140°/ Vertical: 120°.

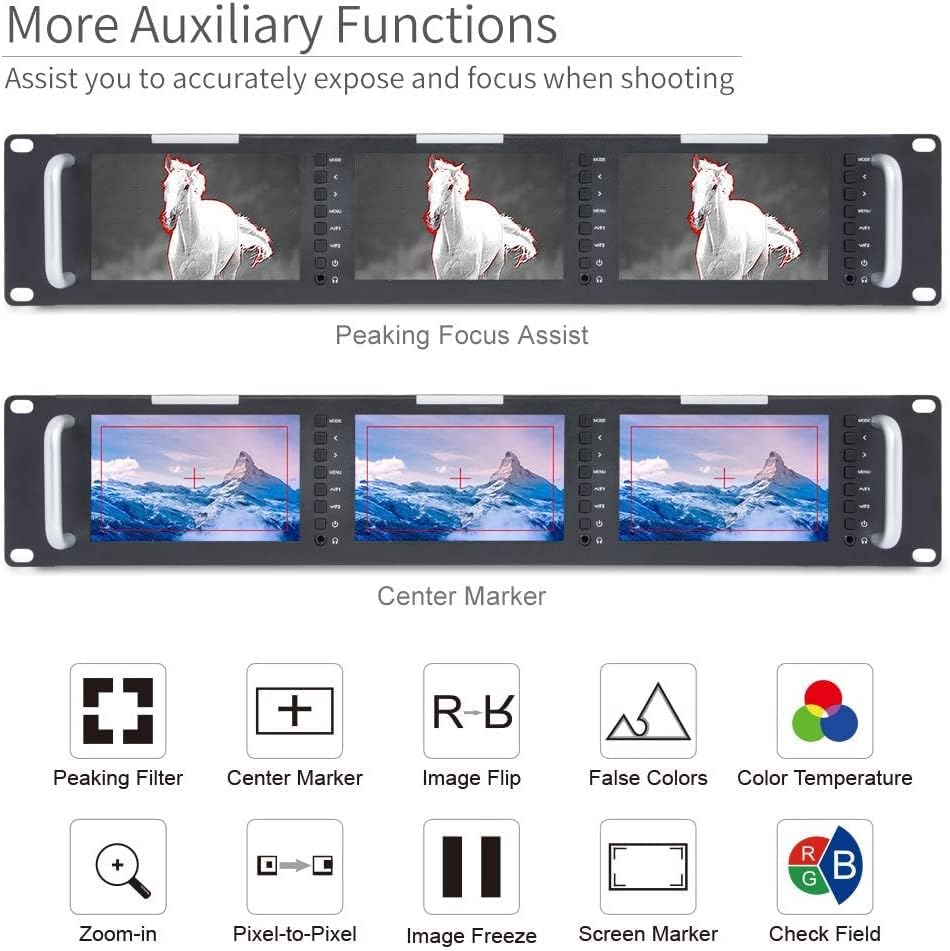

【Special Features】Peaking Focus Assist, Check Field (Red, Green, Blue, Mono), Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Image Freeze, Zoom All, U/D & L/R Zoom, Custom Color Temperature.

【3-color Tally Light】There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the rear panel.

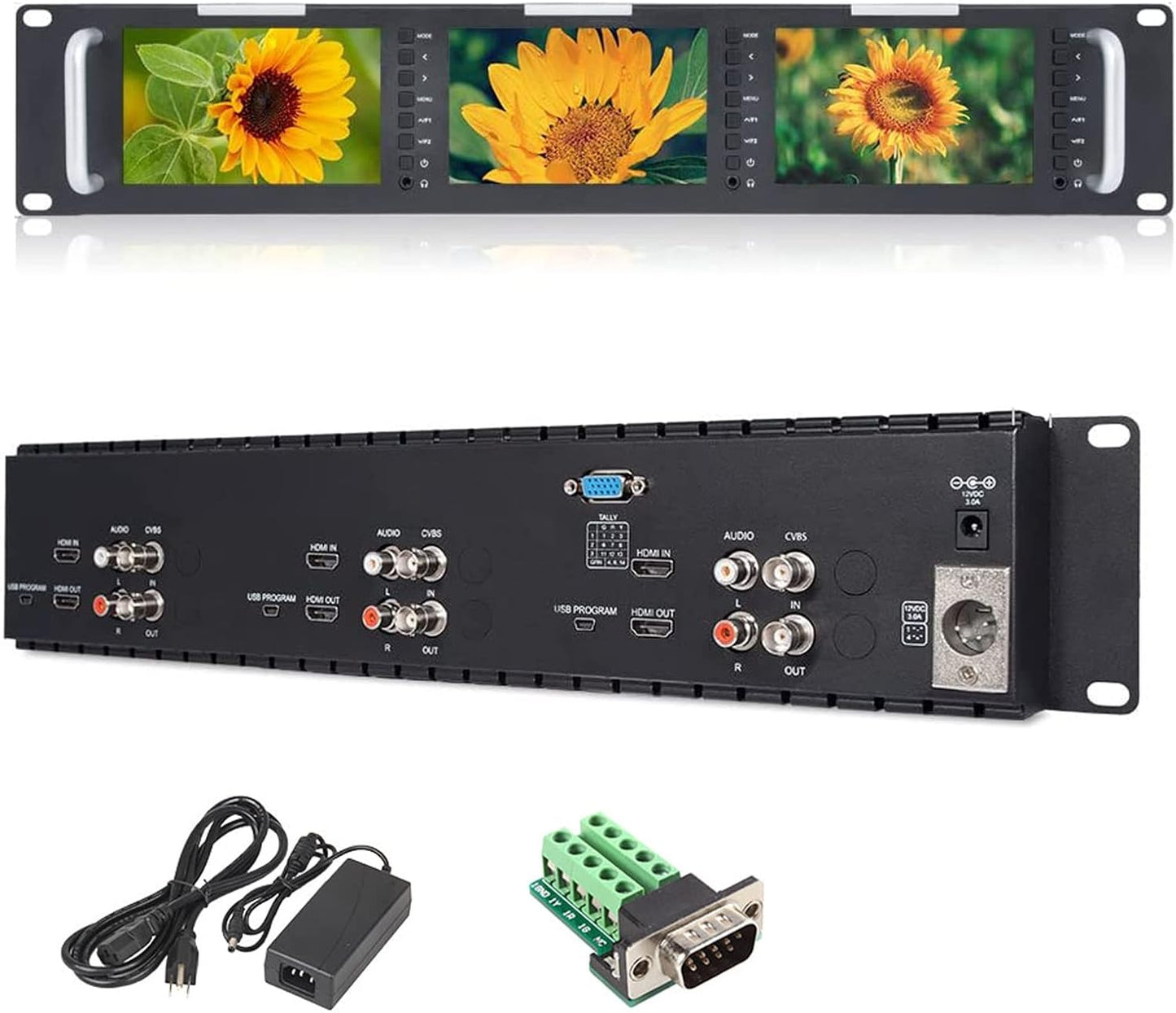

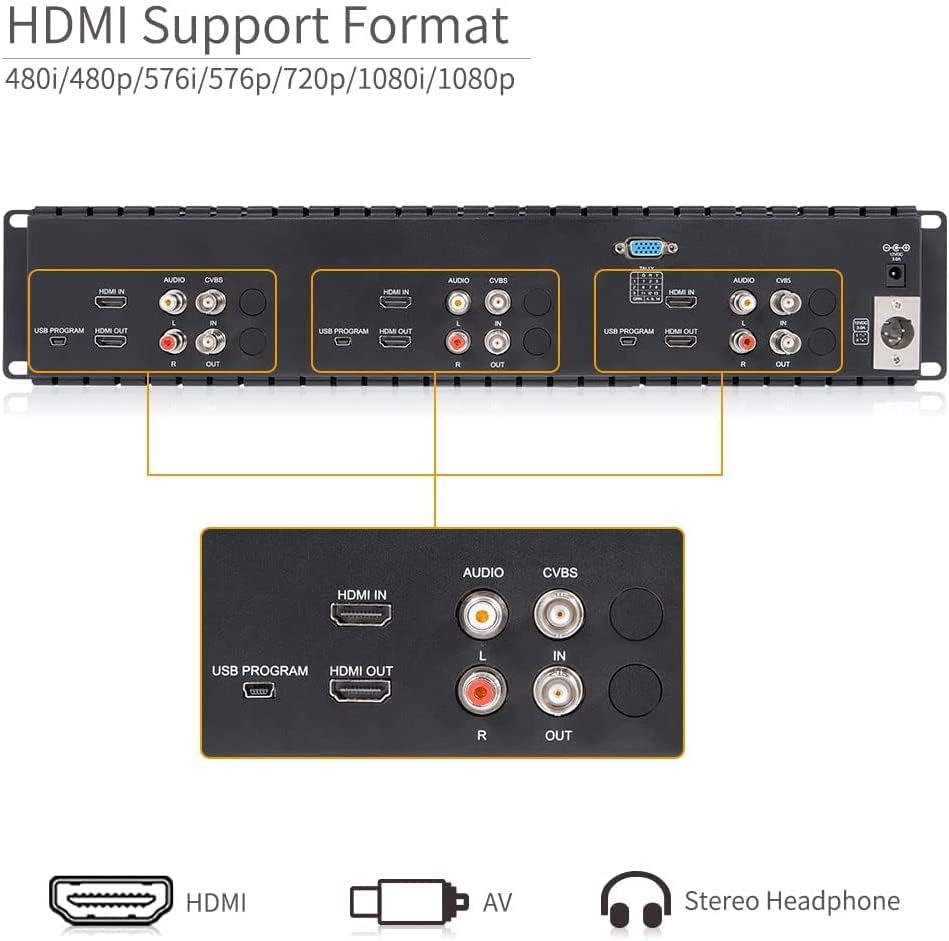

【Multiple Inputs and Outputs】Each LCD of T51-H monitor supports: HDMI X 1, CVBS X 1, Auido (L/R) X 2, Output: HDMI X 1, CVBS X 1, Audio: Stereo Headphone.【Standard Accessories】1× 3A Power Adapter, 1× Tally Kit, 1× Operation Manual.

Specifications

Form Factor

2RU Rack Mount

Number of Screens

3 × 5 inch

Panel Type

TFT LCD with LED backlight

Resolution (per screen)

800 × 480 pixels

Brightness

500 cd/m²

Contrast Ratio

500:1

Viewing Angle

Horizontal 140° / Vertical 120°

Inputs (per screen)

1× HDMI, 1× CVBS (BNC), 2× RCA Audio (L/R)

Outputs (per screen)

1× HDMI, 1× CVBS (BNC), 1× Stereo Headphone

Tally

3-color (Red / Green / Yellow) via DB-15 rear port

Monitoring Features

Peaking Focus Assist, Check Field (R/G/B/Mono), Pixel to Pixel, Center Marker, Safe Marker, Image Flip, Image Freeze, Zoom, Custom Color Temperature

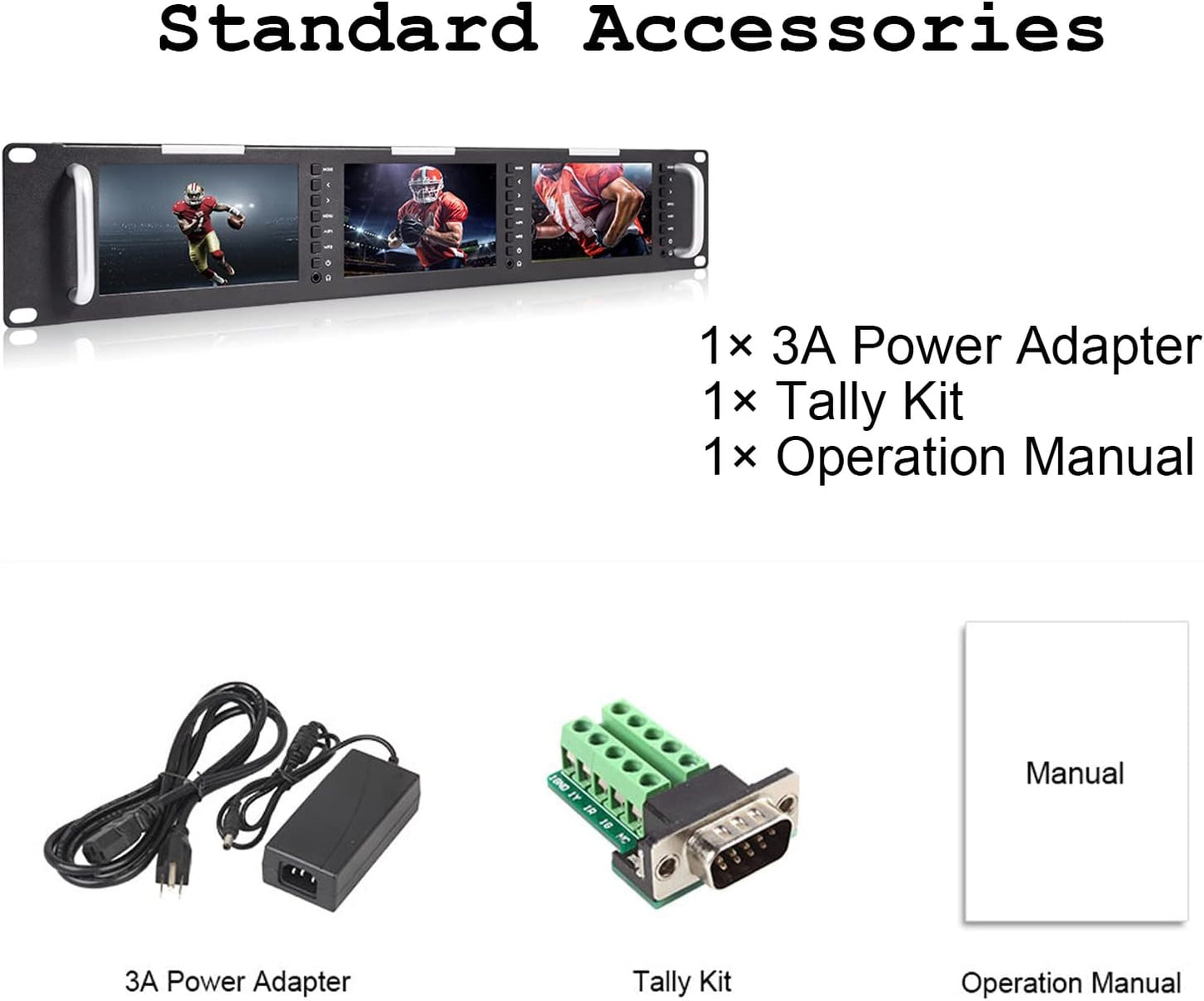

Included Accessories

3A Power Adapter, Tally Kit, Operation Manual

Pros & Cons

👍 Pros

Three independent display channels in 2RU — each with its own input switching, tally, and headphone output — replaces multiple single-screen units.
500 cd/m² brightness holds up under ambient studio lighting without appearing washed out.
Rear DB-15 tally integration allows direct connection to broadcast switchers for live production workflows.
Loop-through HDMI and CVBS outputs on every screen enable daisy-chaining without an external distribution amplifier.
Peaking focus assist, check field modes (R/G/B/Mono), and safe/center markers are available per-screen for multi-camera monitoring discipline.

👎 Cons

800×480 resolution per panel is insufficient for pixel-level inspection of HD or UHD sources — signal confidence monitoring only.
500:1 contrast ratio is modest; shadow detail in dark scenes will compress noticeably compared to higher-spec reference displays.
CVBS (composite) input is a legacy format; production environments running fully SDI or HDMI signal chains will leave those inputs unused.
Front panel menu navigation on small 5" screens can be fiddly during live production when fast adjustments are needed.
No built-in waveform monitor or vectorscope — exposure and color accuracy checks require a separate instrument.

Frequently Asked Questions

What is the native resolution of each display, and is it sufficient for HD source monitoring?

Each panel runs at 800×480 — a sub-HD resolution common to compact rack monitors in this class. That means a 1080p HDMI feed is downscaled for display. The T51-H is designed for signal confidence monitoring (focus, exposure, framing, tally status) rather than pixel-accurate color grading; for critical color work, a higher-resolution reference monitor is appropriate.

How does the peaking focus assist work on the T51-H specifically?

Peaking highlights high-frequency edge detail in a contrasting color directly on the T51-H's panel. It processes the incoming video signal in real time and overlays the edge detection — you toggle it per screen via the front panel controls. It's useful for confirming lens focus during multi-camera shoots without touching the camera.

Can I control the tally lights remotely, and what protocol does the T51-H use?

Yes. Tally control is via DB-15 ports on the rear panel of the T51-H unit. The three-color tally (Red, Green, Yellow) per screen is designed to integrate with production switchers and tally systems that support this connector type. A tally kit is included in the box.

Does the T51-H support loop-through for signal distribution?

Yes. Each of the three screens on the T51-H has both HDMI and CVBS (composite) outputs, enabling loop-through to downstream monitors or recording devices. This avoids the need for a separate DA (distribution amplifier) in straightforward setups.

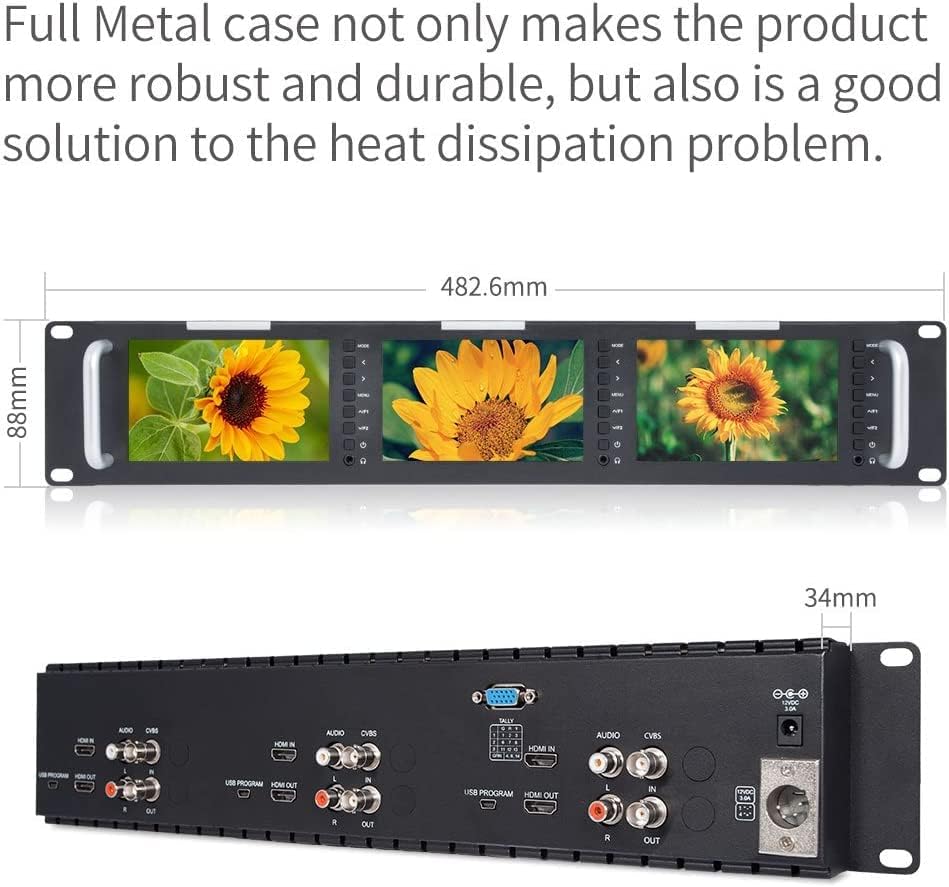

What is the 2RU rack space footprint, and does the unit ship with rack hardware?

The T51-H occupies 2 rack units. The unit is all-metal construction with cast-iron handgrips for portable rack use. Check included accessories — the standard kit lists a power adapter, tally kit, and manual; verify rack ear hardware availability separately.
