FEELWORLD T51 5 Inch 2RU SDI Rack Monitor

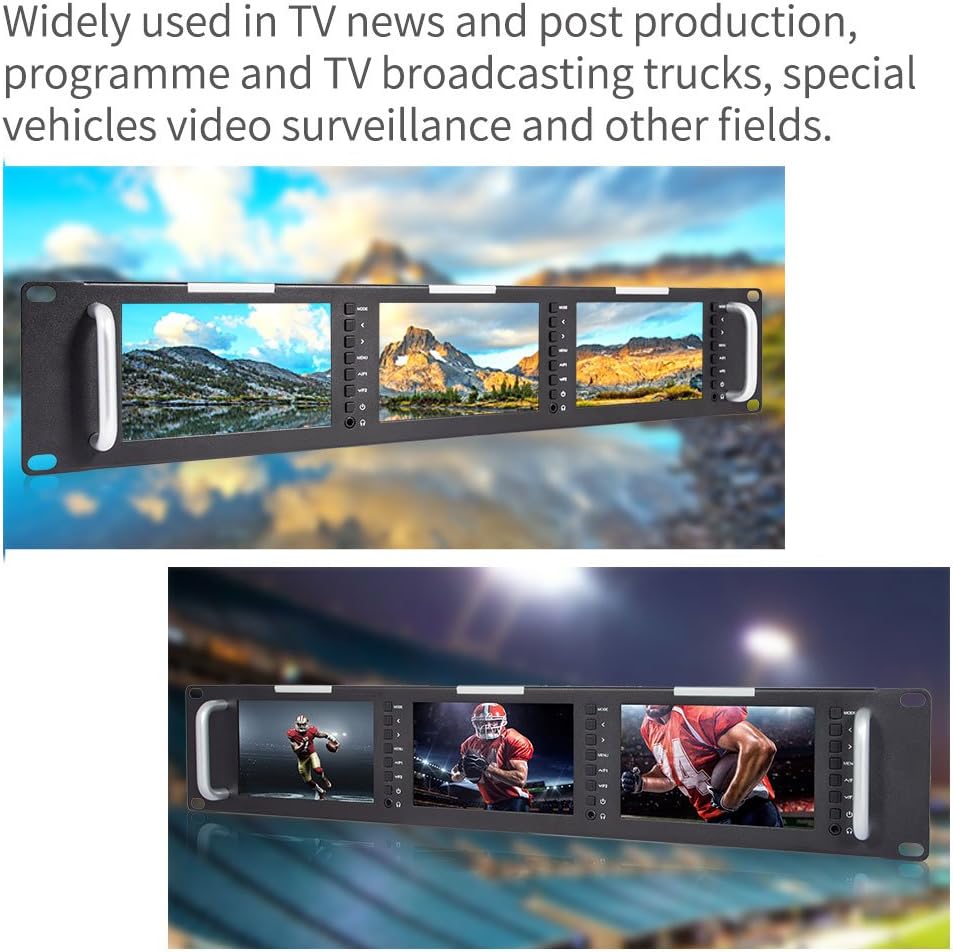

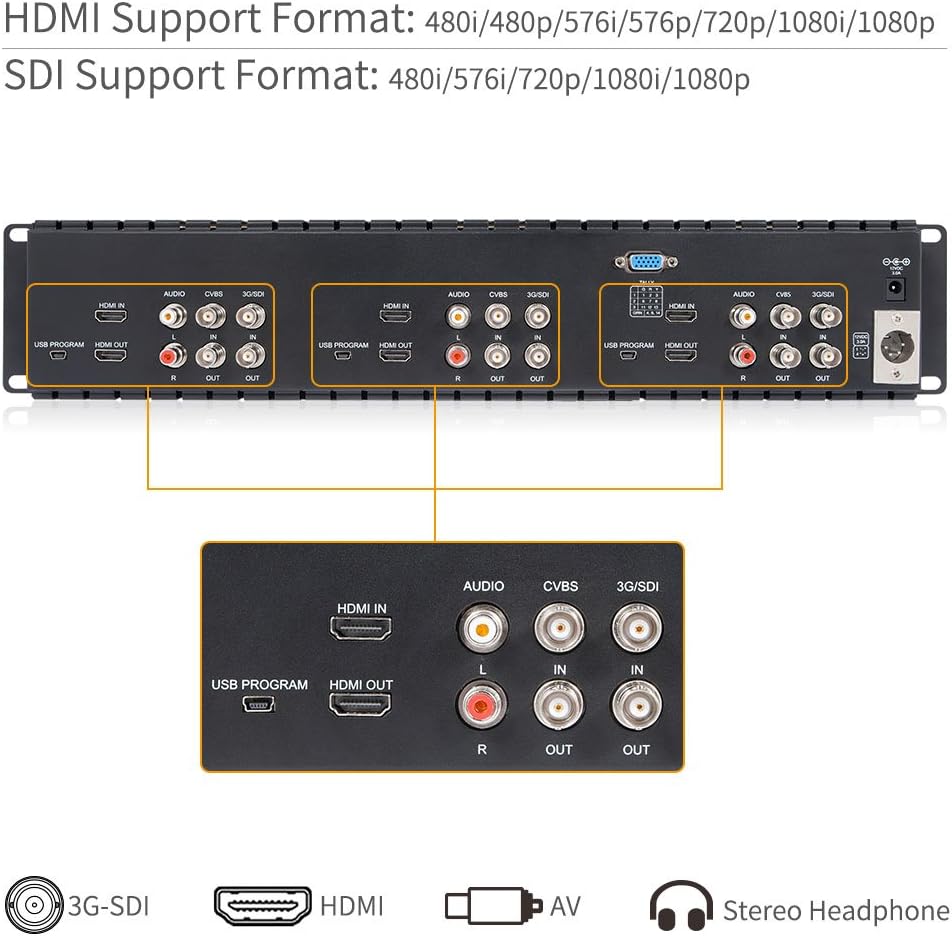

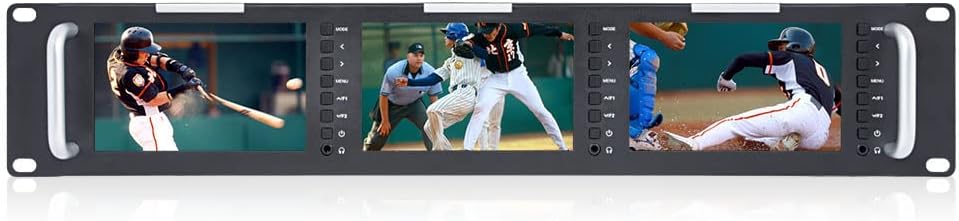

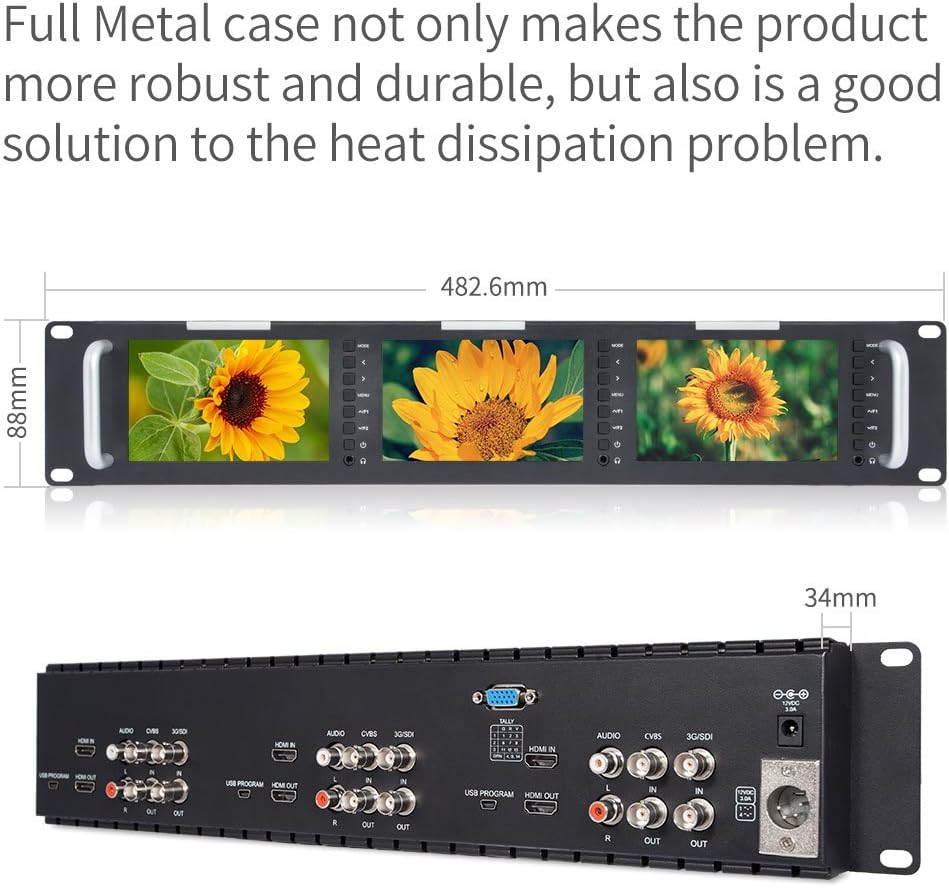

The FEELWORLD T51 packs three 5-inch LCD monitors into a standard 2RU rack-mount chassis, providing multi-source monitoring for broadcast studios, control rooms, and outside broadcast vehicles where rack space is a constrained resource. Each screen operates independently with its own set of 3G-SDI, HDMI, and composite video inputs, along with matching loop-through outputs that allow signals to be passed downstream to additional equipment. This input/output flexibility means the T51 can simultaneously monitor a camera feed via SDI, a graphics source via HDMI, and a program return via composite without any external signal conversion.

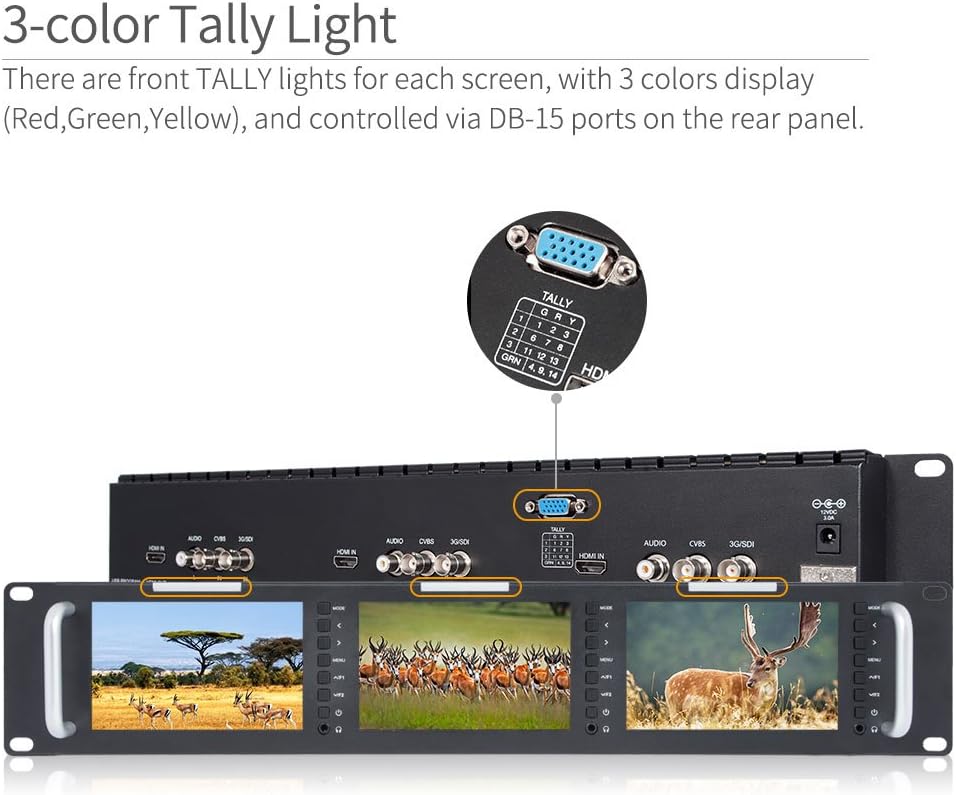

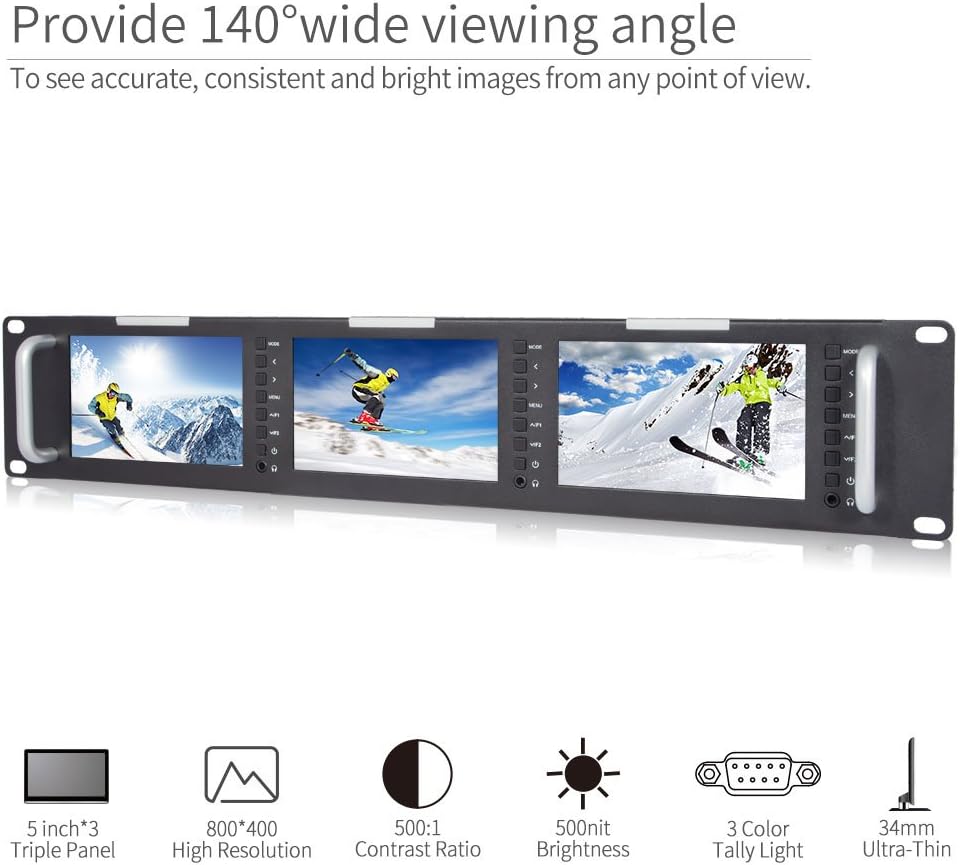

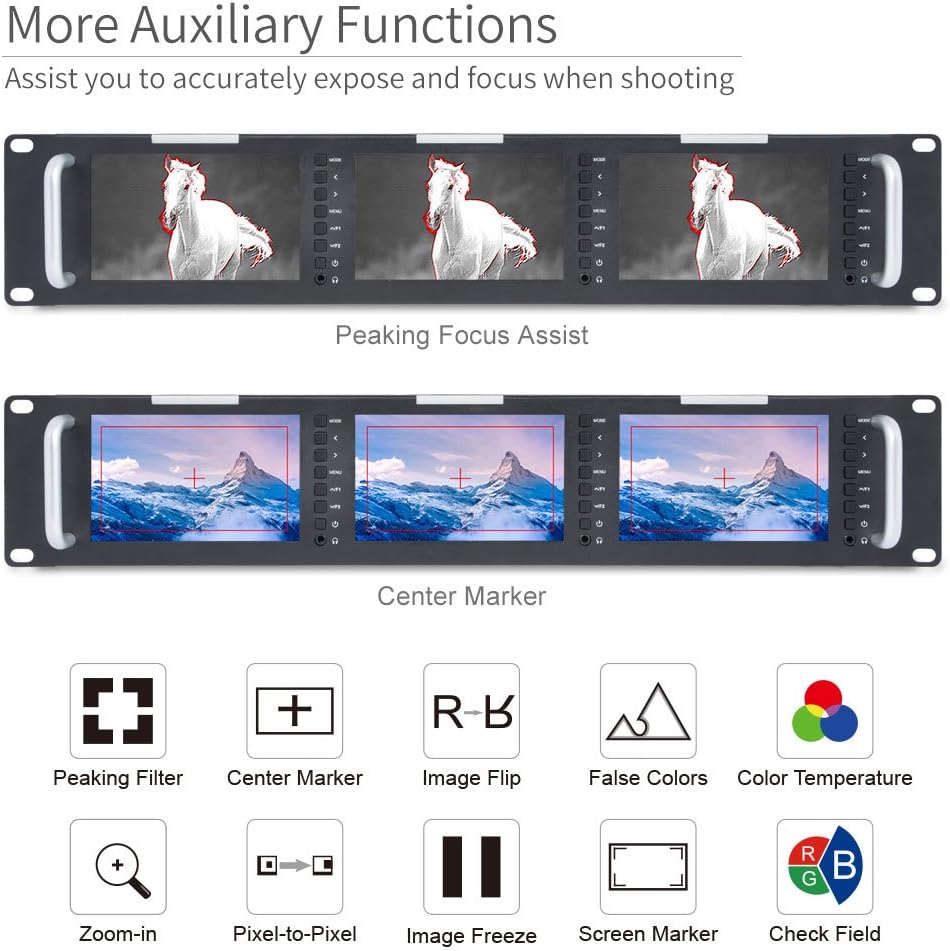

Beyond basic monitoring, the T51 includes a suite of production-oriented tools on each screen: peaking focus assist for confirming sharpness, check field modes in red, green, blue, and monochrome for evaluating exposure and color channels, pixel-to-pixel display for native resolution verification, and image freeze for frame analysis. The built-in 3-color tally lights (red, green, yellow) integrate with production switchers to indicate on-air, preview, and standby status at a glance. Center and safe area markers support framing for broadcast-safe compositions. With 500 cd/m² brightness and LED backlighting, the screens are legible in typical indoor production environments, though the 800x480 resolution positions the T51 as a confidence and signal-presence monitor rather than a tool for pixel-level quality assessment.
