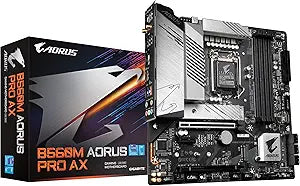

Gigabyte B560M AORUS PRO AX Motherboard LGA 1200
★★★★★
Unleash the Power of 11th Gen Intel ProcessorsThe GIGABYTE B560M AORUS PRO AX Motherboard is designed for 11th and 10th Gen Intel Core Series Processors. This Micro-ATX motherboard features dual M.2 slots, PCIe 4.0 support, USB 3.2 Gen2X2 Type-C, Intel WiFi 6, and 2.5GbE LAN, providing a robust f...
$159.99*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash the Power of 11th Gen Intel Processors
The GIGABYTE B560M AORUS PRO AX Motherboard is designed for 11th and 10th Gen Intel Core Series Processors. This Micro-ATX motherboard features dual M.2 slots, PCIe 4.0 support, USB 3.2 Gen2X2 Type-C, Intel WiFi 6, and 2.5GbE LAN, providing a robust foundation for your high-performance PC build.
Specifications:
- CPU Support: 11th and 10th Gen Intel Core Series Processors
- Memory: Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- VRM: Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
- Connectivity: Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna, Intel 2.5GbE LAN with cFosSpeed
- Storage: Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2 with Thermal Guard
- USB: SuperSpeed USB 3.2 Gen2x2 TYPE-C (up to 20Gb/s)
- Features: Pre-installed IO Shield, RGB FUSION 2.0, Smart Fan 6, Q-Flash Plus
Key Features
Supports 11th and 10th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with 50A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Specifications
CPU Socket
LGA 1200
Supported Processors
11th and 10th Gen Intel Core Series
RAM Type
DDR4
RAM Slots
4 DIMMs
RAM ECC Support
Non-ECC Unbuffered
VRM Solution
Direct 12+1 Phases Digital with 50A DrMOS
Thermal Design
Fully Covered with High Coverage MOSFET Heatsinks
Memory Routing
Shielded
Pros & Cons
👍 Pros
- Supports both 11th and 10th Gen Intel Core Series Processors, offering broad compatibility for CPU choices.
- Features a Direct 12+1 Phases Digital VRM Solution with 50A DrMOS, ensuring stable and efficient power delivery to the CPU.
- Equipped with a Fully Covered Thermal Design and High Coverage MOSFET Heatsinks for effective heat dissipation and system stability.
- Utilizes Shielded Memory Routing, designed to enhance memory overclocking potential and stability.
- Supports Dual Channel Non-ECC Unbuffered DDR4 across 4 DIMMs, allowing for flexible memory configuration and upgrades.
👎 Cons
- The motherboard supports DDR4 memory, which may be a limitation for users looking to utilize newer DDR5 RAM technologies.
- Specific details regarding connectivity, such as the number and type of USB ports or M.2 slots, are not provided in the features.
- While offering broad CPU support, users upgrading from older generations might need to update the BIOS for 11th Gen processors.
- The "High Coverage MOSFET Heatsinks" are beneficial but may increase the board's overall footprint, potentially impacting smaller case compatibility.
- The board targets Intel processors, meaning it is not compatible with AMD CPUs, which is an important consideration for system builders.
Frequently Asked Questions
What generations of Intel processors are compatible with this motherboard?
This Gigabyte B560M AORUS PRO AX Motherboard supports both 11th and 10th Gen Intel Core Series Processors, providing flexibility for your CPU selection.
How does the Direct 12+1 Phases Digital VRM Solution benefit the system?
The Direct 12+1 Phases Digital VRM Solution with 50A DrMOS ensures stable and highly efficient power delivery to the CPU, which is crucial for maximizing performance and maintaining system stability, especially under load.
What type of RAM does this motherboard support?
This motherboard supports Dual Channel Non-ECC Unbuffered DDR4 memory, and it includes 4 DIMM slots for memory modules.
What is the purpose of the Fully Covered Thermal Design and High Coverage MOSFET Heatsinks?
The Fully Covered Thermal Design with High Coverage MOSFET Heatsinks is implemented to effectively dissipate heat from critical power delivery components, ensuring cooler operation and enhanced stability for the motherboard.
Can this motherboard improve memory overclocking performance?
Yes, this motherboard features Shielded Memory Routing, which is specifically designed to provide better memory overclocking capabilities and improved stability during high-speed memory operation.
