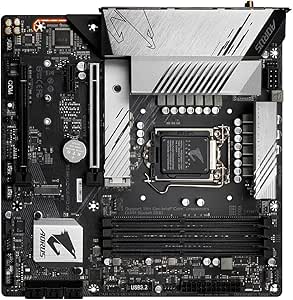

Gigabyte B560M AORUS PRO AX Intel Motherboard — main product image
Gigabyte

Gigabyte B560M AORUS PRO AX Intel Motherboard

★★★★★3.9 (32 reviews)
USB3.2USB2.0

Unlock Ultimate Performance with the GIGABYTE B560M AORUS PRO AX Motherboard The GIGABYTE B560M AORUS PRO AX motherboard delivers unparalleled power and efficiency, supporting the latest Intel processors with its advanced power design and thermal solutions. Designed for enthusiasts and gamers, th...

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Unlock Ultimate Performance with the GIGABYTE B560M AORUS PRO AX Motherboard

The GIGABYTE B560M AORUS PRO AX motherboard delivers unparalleled power and efficiency, supporting the latest Intel processors with its advanced power design and thermal solutions. Designed for enthusiasts and gamers, this Micro ATX board offers superior connectivity and customization options, ensuring your system runs at peak performance.

Key Specifications:

  • Chipset: Intel B560 Express
  • Socket: LGA 1200
  • Form Factor: Micro ATX
  • Memory Type: DDR4-SDRAM
  • Power Design: 12+1 Phases Digital CPU Power

Key Features

128GB Dual Channel DDR4-SDRAM

Ports: 1 x USB3.2 Gen 2 Type-A, 1 x USB3.2 Gen 2 Type-C, 1 x LAN RJ-45, 2 x WiFi-AP antenna jack, 1 x HDMI, 2 x USB3.2 Gen 1 Type-A, 6 x USB2.0, 1 x PS/2, 1 x DisplayPorts

Micro ATX form factor

Chipset: Intel B560 Express

Supports Windows 10 x64 operating system

Specifications

RAM Support
128GB Dual Channel DDR4-SDRAM
Form Factor
Micro ATX
Chipset
Intel B560 Express
USB 3.2 Gen 2 Type-A Ports
1
USB 3.2 Gen 2 Type-C Ports
1
LAN Ports
1 x RJ-45
Wireless Connectivity
2 x WiFi-AP antenna jack
Video Outputs
1 x HDMI, 1 x DisplayPorts
USB 3.2 Gen 1 Type-A Ports
2
USB 2.0 Ports
6
Legacy Ports
1 x PS/2
Operating System Support
Windows 10 x64

Pros & Cons

👍 Pros

  • Supports up to 128GB of Dual Channel DDR4-SDRAM, allowing for significant memory expansion.
  • Equipped with an Intel B560 Express Chipset, providing a stable foundation for system components.
  • Features a Micro ATX form factor, which is suitable for building compact and versatile systems.
  • Offers a comprehensive array of ports, including USB 3.2 Gen 2 Type-A and Type-C for fast data transfer.
  • Includes dedicated LAN RJ-45 and dual WiFi-AP antenna jacks for robust network connectivity.
  • Provides multiple display outputs with 1 HDMI and 1 DisplayPort.
  • Compatible with Windows 10 x64 operating system, ensuring broad software support.
  • Offers a PS/2 port for legacy peripheral support.

👎 Cons

  • Only supports Windows 10 x64 operating system, potentially limiting compatibility with other OS versions.
  • The Micro ATX form factor, while compact, may limit the number of expansion slots compared to larger boards.
  • The specific generation of Intel processors supported is not explicitly detailed in the features.
  • While it has many ports, the total number of USB 2.0 ports is high, which may be less useful for modern peripherals.
  • Does not specify any integrated WiFi or Bluetooth versions beyond the presence of antenna jacks.

Frequently Asked Questions

This motherboard supports up to 128GB of Dual Channel DDR4-SDRAM, providing ample memory for various computing needs.
The Gigabyte B560M AORUS PRO AX motherboard features a Micro ATX form factor, suitable for compact PC builds.
This motherboard supports the Windows 10 x64 operating system, ensuring compatibility with a widely used platform.
The motherboard includes 1 x USB3.2 Gen 2 Type-A, 1 x USB3.2 Gen 2 Type-C, and 2 x USB3.2 Gen 1 Type-A, alongside 6 x USB2.0.
For display connectivity, the motherboard offers 1 x HDMI port and 1 x DisplayPorts.
Yes, it features 2 x WiFi-AP antenna jacks, indicating support for wireless networking.
