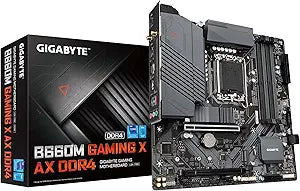

Gigabyte B660M GAMING X AX DDR4 Motherboard
★★★★★
USB 3.2WIFI 6EHDMI 2.0
Unleash Peak Performance with the GIGABYTE B660M Gaming X AX DDR4The Gigabyte B660M Gaming X AX DDR4 motherboard is engineered to support 12th Gen Intel Core processors, offering a robust foundation for your gaming rig. Experience unparalleled performance with its upgraded power design, high-grad...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash Peak Performance with the GIGABYTE B660M Gaming X AX DDR4
The Gigabyte B660M Gaming X AX DDR4 motherboard is engineered to support 12th Gen Intel Core processors, offering a robust foundation for your gaming rig. Experience unparalleled performance with its upgraded power design, high-grade storage capabilities, and exceptional connectivity.
Specifications
- CPU Support: Intel LGA 1700 Socket for 12th Gen Intel Core Series Processors
- Memory: Dual Channel DDR4, 4 DIMMs
- Power Design: 8+1+1 Hybrid Digital VRM Design with Premium Chokes and Capacitors, 8-Pin Solid Pin CPU Power Connector
- Thermal Design: Fully Covered Thermal Design with High Coverage VRM MOSFET Heatsinks, M.2 Thermal Guard
- Expansion Slots: PCIe 4.0
- Storage: Dual NVMe PCIe 4.0 x4 M.2 connectors
- Connectivity: USB 3.2 Gen2 Type-C, HDMI 2.0
- Networking: 2.5GbE LAN, WIFI 6E 802.11ax, BT5
- Audio: High-End Audio Capacitors, Audio Noise Guard
- RGB: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips
- Cooling: Smart Fan 6
- BIOS: Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
Key Features
Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR4 Compatible: Dual Channel DDR4, 4 DIMMs
Sturdy Power Design: 8+1+1 Hybrid Digital VRM Design, Premium Choke and Capacitors, 8-pin Solid Pin CPU Power Connector
Comprehensive Thermal Design: Fully Covered Thermal Design, High Coverage VRM MOSFET Heatsinks, M.2 Thermal Guard
Next Gen Connectivity: PCIe 4.0, Dual NVME PCIe 4.0 x4 M.2, USB 3.2 Gen2 Type-C, HDMI 2.0,
Fast Networking: 2.5GbE LAN, WIFI 6E 802.11ax, BT5
Dynamic Audio: High-End Audio Capacitors, Audio Noise Guard
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Specifications
CPU Socket
Intel LGA 1700
Supported Processors
12th Gen Intel Core Series
Memory Type
DDR4
Memory Slots
4 DIMMs
VRM Design
8+1+1 Hybrid Digital
PCIe Standard
PCIe 4.0
M.2 Slots
Dual NVME PCIe 4.0 x4
USB Connectivity
USB 3.2 Gen2 Type-C
Video Output
HDMI 2.0
Wired LAN
2.5GbE LAN
Wireless Connectivity
WIFI 6E 802.11ax, BT5
Audio Features
High-End Audio Capacitors, Audio Noise Guard
Pros & Cons
👍 Pros
- Offers broad compatibility for 12th Gen Intel Core Series Processors with the LGA 1700 Socket
- Supports DDR4 memory in a dual-channel configuration across four DIMMs, allowing for substantial RAM capacity
- Features an 8+1+1 Hybrid Digital VRM Design with premium components and an 8-pin solid pin CPU power connector for stable power delivery
- Equipped with fully covered thermal design, high coverage VRM MOSFET heatsinks, and M.2 Thermal Guard for efficient cooling
- Provides next-gen connectivity including PCIe 4.0, dual NVME PCIe 4.0 x4 M.2 slots, and USB 3.2 Gen2 Type-C
- Includes fast networking capabilities with 2.5GbE LAN, WIFI 6E 802.11ax, and Bluetooth 5 for reliable wireless and wired connections
- Delivers dynamic audio quality with high-end audio capacitors and an audio noise guard for clear sound
- Offers fine-tuning features like RGB FUSION 2.0, Smart Fan 6, and Q-Flash Plus for easy BIOS updates without a CPU
👎 Cons
- Compatibility is limited to 12th Gen Intel Core Processors and the LGA 1700 socket, not supporting previous or future generations beyond that series
- While DDR4 is well-established, it does not support the newer DDR5 standard, potentially limiting future-proofing for some users
- The inclusion of HDMI 2.0 may be a slight limitation for users seeking the absolute latest in display technology, such as HDMI 2.1
- The dual NVMe PCIe 4.0 x4 M.2 slots, while fast, may still be fewer than some high-end motherboards offer for extensive storage arrays
- The 2.5GbE LAN is robust, but not the absolute fastest 10GbE option available on some enthusiast-grade boards
Frequently Asked Questions
Which Intel processors are compatible with the Gigabyte B660M GAMING X AX DDR4 Motherboard?
This motherboard supports 12th Gen Intel Core Series Processors, utilizing the Intel LGA 1700 Socket for compatibility.
What type of RAM does this motherboard support?
The Gigabyte B660M GAMING X AX DDR4 Motherboard is compatible with DDR4 memory, supporting dual-channel configuration across its four DIMM slots.
Does this motherboard support PCIe 4.0 for graphics cards and NVMe SSDs?
Yes, it features PCIe 4.0 connectivity, including dual NVME PCIe 4.0 x4 M.2 slots, enabling high-speed storage and graphics performance.
What kind of networking capabilities does this motherboard offer?
It provides fast networking with 2.5GbE LAN for wired connections, and WIFI 6E 802.11ax along with Bluetooth 5 for robust wireless connectivity.
Can I update the BIOS without a CPU, memory, or graphics card installed?
Yes, this motherboard supports Q-Flash Plus, which allows for BIOS updates without the need to install a CPU, memory, or GPU.
What are the thermal features included on this motherboard?
It boasts a comprehensive thermal design, including fully covered VRM MOSFET heatsinks and an M.2 Thermal Guard for effective heat dissipation.
Does the motherboard include modern USB connectivity options?
Yes, it features next-gen connectivity including a USB 3.2 Gen2 Type-C port, alongside other modern USB standards.
