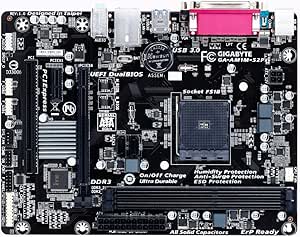

Gigabyte GA-AM1M-S2P AM1 Micro ATX Motherboard — main product image
Gigabyte

Gigabyte GA-AM1M-S2P AM1 Micro ATX Motherboard

★★★★★3.7 (10 reviews)
1920x1200USB 3.0USB 2.0PCIEX4

Build a Compact and Efficient System Introducing the Gigabyte GA-AM1M-S2P Motherboard, a Micro ATX board designed for AMD AM1 Athlon/Sempron-series APUs. Featuring GIGABYTE Ultra Durable 4 Plus Technology and UEFI DualBIOS, this motherboard provides a solid foundation for building a reliable and ...

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Build a Compact and Efficient System

Introducing the Gigabyte GA-AM1M-S2P Motherboard, a Micro ATX board designed for AMD AM1 Athlon/Sempron-series APUs. Featuring GIGABYTE Ultra Durable 4 Plus Technology and UEFI DualBIOS, this motherboard provides a solid foundation for building a reliable and energy-efficient system.

Specifications

  • Socket: FS1b (Supports AMD AM1 Athlon/Sempron-series APU)
  • Form Factor: Micro ATX
  • Chipset: AMD
  • Memory: DDR3 1600
  • SATA: 6Gb/s
  • USB: USB 3.0
  • Technology: GIGABYTE Ultra Durable 4 Plus
  • BIOS: GIGABYTE UEFI DualBIOS

Key Features

APU Socket: FS1b Socket to support AMD Athlon series processors/Sempron series processors (APU is not included)

Memory Slot: 2 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory; Support for DDR3 1600/1333 MHz memory modules

Onboard Graphics :1 x D-Sub port, supporting a maximum resolution of 1920x1200

Expansion Slots:1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot (The PCI Express slots conforms to PCI Express 2.0 standard.) 1 x PCI slot

Storage Interface Integrated in the APU: 2 x SATA 6Gb/s connectors

USB Integrated in the APU: 2 x USB 3.0/2.0 ports on the back panel; 6 x USB 2.0/1.1 ports

Specifications

APU Socket
FS1b Socket
Supported Processors
AMD Athlon series, Sempron series
Memory Slots
2 x 1.5V DDR3 DIMM sockets
Maximum System Memory
32 GB
Memory Support
DDR3 1600/1333 MHz
Onboard Graphics Port
1 x D-Sub port
Maximum D-Sub Resolution
1920x1200
PCI Express x16 Slot
1 (running at x4)
PCI Express x1 Slot
1
PCI Express Standard
2.0
PCI Slot
1
SATA Connectors
2 x SATA 6Gb/s
USB 3.0/2.0 Ports (Back Panel)
2
USB 2.0/1.1 Ports
6
Form Factor
Micro ATX

Pros & Cons

👍 Pros

  • Supports AMD Athlon and Sempron series processors through the FS1b Socket, offering flexibility for CPU choice.
  • Accommodates up to 32 GB of system memory across two DDR3 DIMM sockets, allowing for substantial RAM capacity.
  • Supports common DDR3 memory modules at 1600/1333 MHz speeds, ensuring compatibility with widely available RAM.
  • Includes a PCI Express x16 slot running at x4 and a PCI Express x1 slot, conforming to PCI Express 2.0 standard for expansion.
  • Features two SATA 6Gb/s connectors, integrated into the APU, for fast storage device connectivity.

👎 Cons

  • The motherboard only supports DDR3 memory, which is an older generation compared to newer DDR4 or DDR5 standards.
  • The PCI Express x16 slot runs at x4 speed, which could limit the full performance of high-end graphics cards.
  • Only a D-Sub port is listed for onboard graphics output, lacking modern digital display outputs like HDMI or DisplayPort.
  • Limited to two SATA 6Gb/s connectors, which might be insufficient for systems requiring multiple storage drives.
  • The USB offerings include two USB 3.0/2.0 ports and six USB 2.0/1.1 ports, lacking newer USB 3.1 or 3.2 standards.

Frequently Asked Questions

This motherboard features an FS1b Socket designed to support AMD Athlon series processors and Sempron series processors.
The Gigabyte GA-AM1M-S2P motherboard supports up to 32 GB of system memory across its two 1.5V DDR3 DIMM sockets.
It includes one PCI Express x16 slot running at x4, one PCI Express x1 slot (both conforming to PCI Express 2.0 standard), and one PCI slot.
Yes, it provides one D-Sub port for onboard graphics, supporting a maximum resolution of 1920x1200.
The motherboard has two SATA 6Gb/s connectors, integrated into the APU, for connecting storage devices.
