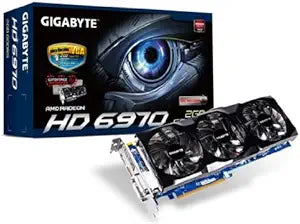

Gigabyte GV-R697OC-2GD HD 6970 2GB DDR5 Video Card
★★★★★
2GB DDR5550WDisplayport
Experience High-Definition Gaming with Stunning Visuals The Gigabyte HD 6970 delivers exceptional gaming performance with its AMD Radeon HD 6970 GPU and 2GB of GDDR5 memory. Designed for PCI Express 2.1, this video card supports Microsoft DirectX 11 and OpenGL 4.1, providing stunning visuals and ...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Experience High-Definition Gaming with Stunning Visuals
The Gigabyte HD 6970 delivers exceptional gaming performance with its AMD Radeon HD 6970 GPU and 2GB of GDDR5 memory. Designed for PCI Express 2.1, this video card supports Microsoft DirectX 11 and OpenGL 4.1, providing stunning visuals and immersive gameplay. With CrossFireX support and multiple display outputs, the Gigabyte HD 6970 is a top choice for gamers.
Specifications:
- Brand: Gigabyte
- Model: GV-R697OC-2GD
- GPU: AMD Radeon HD 6970
- Memory: 2GB GDDR5
- Memory Interface: 256-bit
- Interface: PCI Express 2.1
- DirectX Support: Microsoft DirectX 11
- OpenGL Support: OpenGL 4.1
- Outputs: Dual DVI, HDMI, 2xminiDP
Key Features
Gigabyte Ultra Durable VGA Series - GPU Temperature 5% ~ 10% down - Overclocking capability 10% ~ 30% up - Power Switching Loss 10% ~ 30% down
WINDFORCE 3X Anti-Turbulence Cooling w/ Vapor Chamber for Maximum performance at whisper silent operation
Gold plated HDMI for optimum signal transfer between connections
Core Clock: 900MHz - Memory Clock 5500MHz
Features DVI-I / DVI-D / HDMI / Displayport outputs with HDCP protection
Supports AMD Eyefinity / EyeSpeed / CrossFire / Avivo HD technologies
Minimum Recommended Power Supply 550W with one 6-pin and one 8-pin PCI-E power connectors
Specifications
Model
GV-R697OC-2GD HD 6970
Memory
2GB DDR5
Core Clock
900MHz
Memory Clock
5500MHz
Output Ports
DVI-I, DVI-D, HDMI, DisplayPort
Cooling System
WINDFORCE 3X Anti-Turbulence Cooling w/ Vapor Chamber
Power Connectors
One 6-pin PCI-E, one 8-pin PCI-E
Minimum Recommended Power Supply
550W
Features
HDCP protection, AMD Eyefinity, EyeSpeed, CrossFire, Avivo HD technologies
Pros & Cons
👍 Pros
- Features Gigabyte's Ultra Durable VGA Series, designed for enhanced durability and performance.
- Claims 5% to 10% lower GPU temperature and 10% to 30% higher overclocking capability.
- Offers 10% to 30% lower power switching loss, contributing to efficiency.
- Equipped with WINDFORCE 3X Anti-Turbulence Cooling for maximum performance at whisper silent operation.
- Includes gold-plated HDMI for optimum signal transfer between connections.
- Supports AMD Eyefinity, EyeSpeed, CrossFire, and Avivo HD technologies for enhanced visual experiences.
- Provides multiple output options including DVI-I, DVI-D, HDMI, and DisplayPort with HDCP protection.
👎 Cons
- The graphics card requires a minimum recommended power supply of 550W, with specific 6-pin and 8-pin PCI-E power connectors, which may necessitate an upgrade for some systems.
- As an older model (HD 6970), its performance may not compete with newer generation graphics cards for modern games or applications.
- The 2GB GDDR5 memory might be a limitation for very high-resolution gaming or graphically intensive tasks today.
- Specific details about the cooler's dimensions are not provided, which could impact compatibility with smaller cases.
- The "whisper silent operation" claim is subjective and might vary based on specific system configurations and load.
Frequently Asked Questions
What are the main benefits of Gigabyte's Ultra Durable VGA Series?
The Ultra Durable VGA Series aims to reduce GPU temperatures by 5-10%, increase overclocking capability by 10-30%, and decrease power switching loss by 10-30%.
What cooling technology does this Gigabyte graphics card use?
It utilizes WINDFORCE 3X Anti-Turbulence Cooling with a Vapor Chamber for efficient heat dissipation and quiet operation.
What types of display outputs are available on this video card?
This video card features DVI-I, DVI-D, HDMI, and DisplayPort outputs, all with HDCP protection.
What is the recommended power supply requirement for this graphics card?
A minimum recommended power supply of 550W is suggested, with one 6-pin and one 8-pin PCI-E power connector.
Does this graphics card support multi-display setups?
Yes, it supports AMD Eyefinity technology, which enables multi-display gaming and productivity.
What is the amount and type of memory on this graphics card?
The Gigabyte GV-R697OC-2GD HD 6970 comes with 2GB of GDDR5 memory.
What is the core clock speed of this video card?
The core clock speed for this graphics card is 900MHz.
