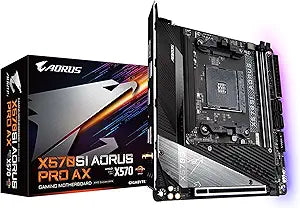

Gigabyte X570SI AORUS PRO AX Mini-ITX Motherboard
★★★★★
WiFi 6EUSB3.2
Build Your Compact Gaming Rig with Uncompromising PowerThe GIGABYTE X570SI AORUS PRO AX is a high-performance Mini-ITX motherboard designed for building compact gaming PCs. With support for AMD Ryzen processors, PCIe 4.0, and fast connectivity options, this motherboard delivers exceptional perfor...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your Compact Gaming Rig with Uncompromising Power
The GIGABYTE X570SI AORUS PRO AX is a high-performance Mini-ITX motherboard designed for building compact gaming PCs. With support for AMD Ryzen processors, PCIe 4.0, and fast connectivity options, this motherboard delivers exceptional performance in a small form factor.
- Brand: Gigabyte
- Model: X570SI AORUS PRO AX
- CPU Support: AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
- Memory Support: Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- VRM: Twin 8+2 Phases Digital VRM Solution with 90A Smart Power Stage
- Cooling: Groove Designed and Multi-layered Heatsinks for Chipset and M.2 Thermal Guard III with Heatpipe
- Wireless: AMD WiFi 6E 802.11ax & BT 5.2
- M.2 Slots: Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- LAN: Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
- USB: Rear and Front USB3.2 Type-C
- Audio: AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors
- Form Factor: Mini-ITX
Key Features
Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Twin 8+2 Phases Digital VRM Solution with 90A Smart Power Stage
Groove Designed and Multi-layered Heatsinks for Chipset and M.2 Thermal Guard III with Heatpipe
AMD WiFi 6E 802.11ax & BT 5.2
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Blazing Fast Intel 2.5GbE LAN with cFosSpeed
Rear and Front USB3.2 Type-C for Fast and Versatile Connections
AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Specifications
Form Factor
Mini-ITX
CPU Support
AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
Memory Type
Dual Channel ECC/ Non-ECC Unbuffered DDR4
DIMM Slots
2
VRM Solution
Twin 8+2 Phases Digital with 90A Smart Power Stage
M.2 Slots
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 with Thermal Guard
Wireless Connectivity
AMD WiFi 6E 802.11ax & BT 5.2
Wired LAN
Intel 2.5GbE LAN with cFosSpeed
Audio
AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors
USB Ports
Rear and Front USB3.2 Type-C
Cooling Features
Groove Designed and Multi-layered Heatsinks, M.2 Thermal Guard III with Heatpipe, Smart Fan 6
Pros & Cons
👍 Pros
- Supports a wide range of AMD Ryzen processors, including 5th, 4th, 3rd, and 2nd Gen, for broad compatibility.
- Features a robust Twin 8+2 Phases Digital VRM Solution with 90A Smart Power Stage for stable power delivery.
- Equipped with dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 slots, providing high-speed storage options with Thermal Guard.
- Includes AMD WiFi 6E 802.11ax and BT 5.2 for cutting-edge wireless networking and peripheral connectivity.
- Comes with Blazing Fast Intel 2.5GbE LAN with cFosSpeed, offering superior wired network performance.
- Offers AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for high-fidelity sound.
- Smart Fan 6 with multiple temperature sensors and hybrid fan headers ensures efficient cooling and quiet operation.
- Features Rear and Front USB3.2 Type-C ports, providing versatile and fast connections for modern devices.
- Designed with Groove Designed and Multi-layered Heatsinks, including a heatpipe for optimal chipset and M.2 thermal management.
- Supports Dual Channel ECC/Non-ECC Unbuffered DDR4 memory across 2 DIMMs, offering flexibility for various build types.
👎 Cons
- The Mini-ITX form factor, while compact, offers limited expansion slots compared to larger motherboard sizes.
- Support for only 2 DIMMs restricts the maximum memory capacity compared to motherboards with four or more DIMM slots.
- While it supports multiple Ryzen generations, specific compatibility with future CPU releases is not guaranteed without firmware updates.
- The 90A Smart Power Stage, while robust, may be overkill or underutilized for less demanding CPU configurations.
- The "Groove Designed and Multi-layered Heatsinks" are specific to the board and may not be easily replaced or upgraded.
- The inclusion of cFosSpeed for the LAN, while beneficial, is software-dependent and requires configuration.
Frequently Asked Questions
Which AMD Ryzen processors are compatible with this motherboard?
This Gigabyte X570SI AORUS PRO AX Mini-ITX motherboard supports AMD Ryzen 5th Gen, 4th Gen, 3rd Gen, and 2nd Gen processors.
What type of wireless connectivity does this motherboard offer?
It features AMD WiFi 6E 802.11ax and Bluetooth 5.2, providing advanced wireless networking and peripheral connections.
How many M.2 slots are available for storage?
The motherboard includes dual ultra-fast NVMe PCIe 4.0/3.0 x4 M.2 slots, each equipped with Thermal Guard for optimal performance.
What kind of audio solution is integrated into this motherboard?
It integrates AMP-UP Audio with an ALC1220-VB codec and Nichicon Audio Capacitors for a high-quality audio experience.
Does this motherboard support ECC memory?
Yes, it supports Dual Channel ECC/Non-ECC Unbuffered DDR4 memory through its two DIMM slots.
What are the networking capabilities of this motherboard?
For wired networking, it features Blazing Fast Intel 2.5GbE LAN with cFosSpeed, in addition to its robust wireless options.
