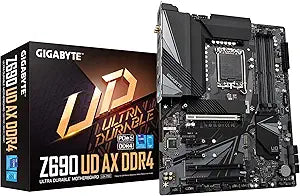

Gigabyte Z690 UD AX DDR4 Motherboard - LGA 1700

★★★★★4.3 (3431 reviews)
USB 3.2WiFi 6

Unleash Peak Performance with Cutting-Edge Technology The GIGABYTE Z690 UD AX DDR4 motherboard is engineered for 12th Gen Intel Core Series Processors, offering unparalleled performance and stability. With its robust power design, advanced thermal solutions, and next-gen connectivity, this ATX mo...

$159.00*
Check availability

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Unleash Peak Performance with Cutting-Edge Technology

The GIGABYTE Z690 UD AX DDR4 motherboard is engineered for 12th Gen Intel Core Series Processors, offering unparalleled performance and stability. With its robust power design, advanced thermal solutions, and next-gen connectivity, this ATX motherboard is ideal for gamers and content creators looking to optimize their system.

Specifications:

  • Brand: GIGABYTE
  • Model: Z690 UD AX DDR4
  • CPU Socket: Intel LGA 1700
  • Chipset: Intel Z690
  • Memory Type: DDR4 (Dual Channel Non-ECC Unbuffered)
  • Power Design: 16+1+2 Digital VRM Design with 60A Power Stage
  • Expansion Slots: PCIe 5.0
  • M.2 Slots: Triple NVMe PCIe 4.0 x4
  • USB Ports: SuperSpeed USB 3.2 Gen 2x2 Type-C
  • Networking: WiFi 6 802.11ax, 2.5GbE LAN, BT5
  • RGB: RGB FUSION 2.0 (Supports Addressable LED & RGB LED Strips)
  • Form Factor: ATX
  • Features: Smart Fan 6, Q-Flash Plus (Update BIOS without CPU, Memory, GPU)

Key Features

Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors

DDR4 Compatible: Dual Channel Non-ECC Unbuffered DDR4

Sturdy Power Design: 16plus1plus2 Digital VRM Design with 60A Power Stage with Tantalum Polymer Capacitor

Comprehensive Thermal Design: Ultra performance VRM Heatsinks

Next Gen Connectivity: PCIe 5.0, Triple NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C

Fast Networking: WiFi 6 802.11, 2.5GbE LAN, BT5

Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Only Compatible with Intel LGA1700 Cooling Brackets

Specifications

Socket Type
Intel LGA 1700
Supported Processors
12th Gen Intel Core Series
Memory Type
DDR4 (Dual Channel Non-ECC Unbuffered)
VRM Design
16+1+2 Digital VRM Design with 60A Power Stage
Capacitor Type
Tantalum Polymer Capacitor
PCIe Slots
PCIe 5.0
M.2 Slots
3x NVMe PCIe 4.0 x4 M.2
USB Connectivity
SuperSpeed USB 3.2 Gen 2x2 Type-C
Wireless Networking
WiFi 6 802.11, BT5
Wired Networking
2.5GbE LAN
Cooling Bracket Compatibility
Intel LGA1700 Cooling Brackets only

Pros & Cons

👍 Pros

  • Supports 12th Gen Intel Core Series Processors using the LGA 1700 socket for current-generation compatibility.
  • Features a 16+1+2 digital VRM design with 60A power stages and tantalum polymer capacitors for stable power delivery.
  • Equipped with ultra-performance VRM heatsinks to efficiently dissipate heat and maintain system stability.
  • Offers next-gen connectivity including PCIe 5.0, triple NVMe PCIe 4.0 x4 M.2 slots, and SuperSpeed USB 3.2 Gen 2x2 Type-C.
  • Provides fast networking capabilities with built-in WiFi 6 802.11, 2.5GbE LAN, and Bluetooth 5 connectivity.
  • Includes RGB FUSION 2.0 and Smart Fan 6 for extensive customization and advanced cooling control.
  • Features Q-Flash Plus, enabling BIOS updates without needing a CPU, memory, or graphics card installed.

👎 Cons

  • Only compatible with DDR4 memory, limiting options for those seeking to utilize newer DDR5 modules.
  • Requires Intel LGA1700 cooling brackets, potentially necessitating new hardware for existing coolers.
  • The robust power design with a 16+1+2 digital VRM might be more than needed for entry-level 12th Gen Intel processors.
  • Specific benefits of the Tantalum Polymer Capacitor are not detailed, making it harder to assess its precise impact.
  • The "Fine Tuning Features" might be more complex than necessary for users who prefer a simpler setup.

Frequently Asked Questions

This motherboard is designed to support 12th Gen Intel Core Series Processors, utilizing the Intel LGA 1700 Socket.
No, this motherboard is DDR4 compatible only, featuring dual-channel non-ECC unbuffered DDR4 support.
The motherboard features ultra-performance VRM heatsinks for comprehensive thermal design, but it specifically requires Intel LGA1700 cooling brackets for CPU cooling solutions.
Yes, it offers next-gen connectivity including PCIe 5.0, as well as triple NVMe PCIe 4.0 x4 M.2 slots.
This motherboard includes Q-Flash Plus, which allows you to update the BIOS without the need to install a CPU, memory, or GPU.
For wireless, it features WiFi 6 802.11 and BT5, while wired connectivity is provided by 2.5GbE LAN.
Yes, the motherboard supports RGB FUSION 2.0 and is compatible with addressable LED and RGB LED strips for personalized lighting effects.
