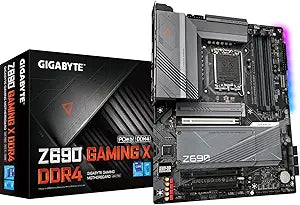

Gigabyte Z690GAMINGXDDR4 ATX Motherboard DDR4 5333MHz — main product image
Gigabyte

Gigabyte Z690GAMINGXDDR4 ATX Motherboard DDR4 5333MHz

★★★★★4.4 (253 reviews)

Build Your Dream Gaming Rig with the Gigabyte Z690 GAMING X DDR4 Motherboard The Gigabyte Z690 GAMING X DDR4 is an ATX motherboard designed to support 12th Gen Intel Core processors (LGA 1700). With advanced features like DDR4-5333MHz(OC) memory support, a fully covered thermal design, and multi...

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Build Your Dream Gaming Rig with the Gigabyte Z690 GAMING X DDR4 Motherboard

The Gigabyte Z690 GAMING X DDR4 is an ATX motherboard designed to support 12th Gen Intel Core processors (LGA 1700). With advanced features like DDR4-5333MHz(OC) memory support, a fully covered thermal design, and multiple NVMe PCIe 4.0 x4 M.2 slots, this motherboard is engineered for optimal gaming performance. Its USB 3.2 Gen 2x2 Type-C connectivity ensures blazing-fast data transfer speeds. Built with high-quality components and Gigabyte's Ultra Durable technology, this motherboard provides a solid foundation for your next gaming PC.

Specifications:

  • CPU Support: 12th Gen Intel Core Processors (LGA 1700)
  • Memory Support: DDR4-5333MHz(OC)
  • Form Factor: ATX
  • M.2 Slots: 4 x NVMe PCIe 4.0 x4
  • USB Ports: USB 3.2 Gen 2x2 Type-C
  • Audio: ALC1220 120dB(A) SNR HD Audio
  • Thermal Design: Fully Covered with Integrated Molding Heatsinks
  • LAN: Intel GbE LAN
  • Connectivity: PCIe 5.0 Ready

Key Features

Supports 12th Gen Intel Core Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

Direct 16+1+2 Digital VRM Design with 60A Power Stage (maximum based on VCORE phase) and Tantalum Polymer Capacitor​

Fully Covered Thermal Design with High Coverage MOSFET Heatsinks​

4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards

Specifications

Processor Support
12th Gen Intel Core Series
Memory Type
DDR4
Memory Channels
Dual Channel
DIMM Slots
4
Max Memory Speed
5333MHz (OC)
VRM Design
Direct 16+1+2 Digital VRM with 60A Power Stage
M.2 Slots
4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4
Cooling
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Form Factor
ATX

Pros & Cons

👍 Pros

  • Designed to support the latest 12th Gen Intel Core Series Processors, offering modern performance capabilities.
  • Features a Direct 16+1+2 Digital VRM Design with 60A Power Stage, ensuring robust power delivery to the CPU.
  • Equipped with 4 Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 slots, providing extensive high-speed storage options.
  • Includes a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, for efficient heat dissipation.
  • Supports Dual Channel Non-ECC Unbuffered DDR4 memory across 4 DIMMs, allowing for high-speed RAM configurations up to 5333MHz.

👎 Cons

  • This motherboard specifically supports 12th Gen Intel Core processors, limiting compatibility with older or newer generations.
  • The requirement for DDR4 memory at 5333MHz (OC) might necessitate specific, often more expensive, RAM modules to achieve optimal speeds.
  • The inclusion of only DDR4 DIMMs means it is not compatible with the newer DDR5 memory standard.
  • Users requiring more than four M.2 slots will find this board limiting for extreme storage configurations.
  • While robust, the thermal design does not specify active cooling or liquid cooling support for VRMs.

Frequently Asked Questions

This motherboard is designed to support 12th Gen Intel Core Series Processors, providing compatibility with the latest generation of Intel CPUs.
It supports Dual Channel Non-ECC Unbuffered DDR4 memory across 4 DIMMs, with speeds up to 5333MHz (OC) for high-performance memory configurations.
The Gigabyte Z690 Gaming X DDR4 features 4 Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 slots, each with enlarged thermal guards for high-speed storage solutions.
Yes, it boasts a Direct 16+1+2 Digital VRM Design with a 60A Power Stage (maximum based on VCORE phase) and Tantalum Polymer Capacitor, ensuring stable power delivery.
It incorporates a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, which aids in efficient heat dissipation to maintain system stability.
No, this Gigabyte Z690GAMINGXDDR4 motherboard specifically supports DDR4 memory and is not compatible with DDR5 modules.
There are 4 DIMM slots available for installing DDR4 memory modules.
