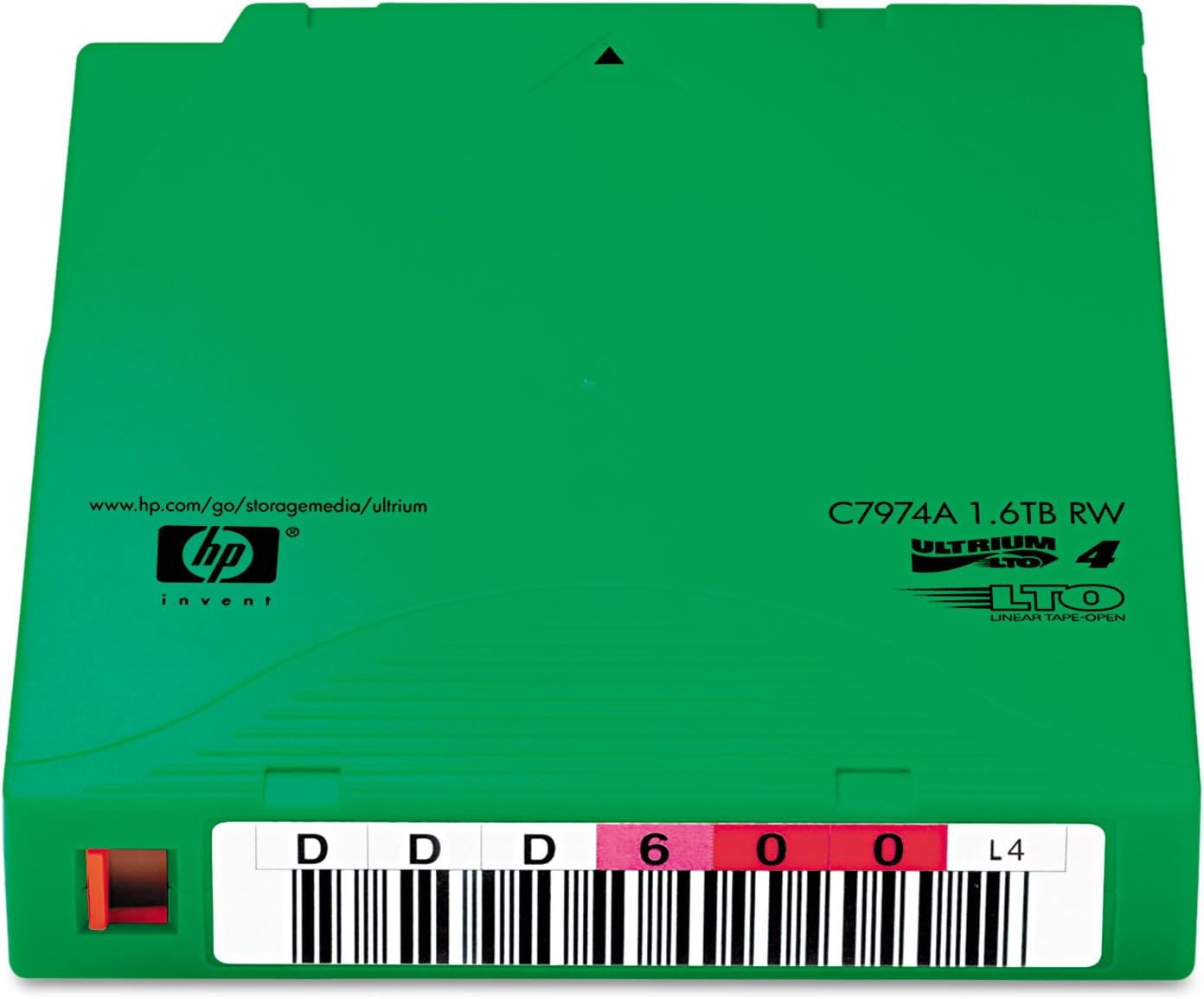

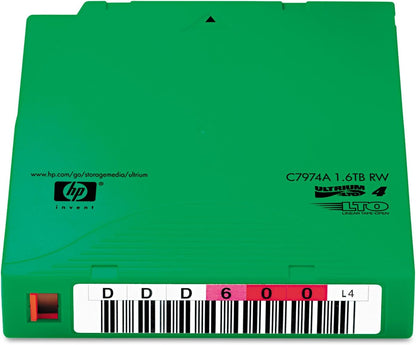

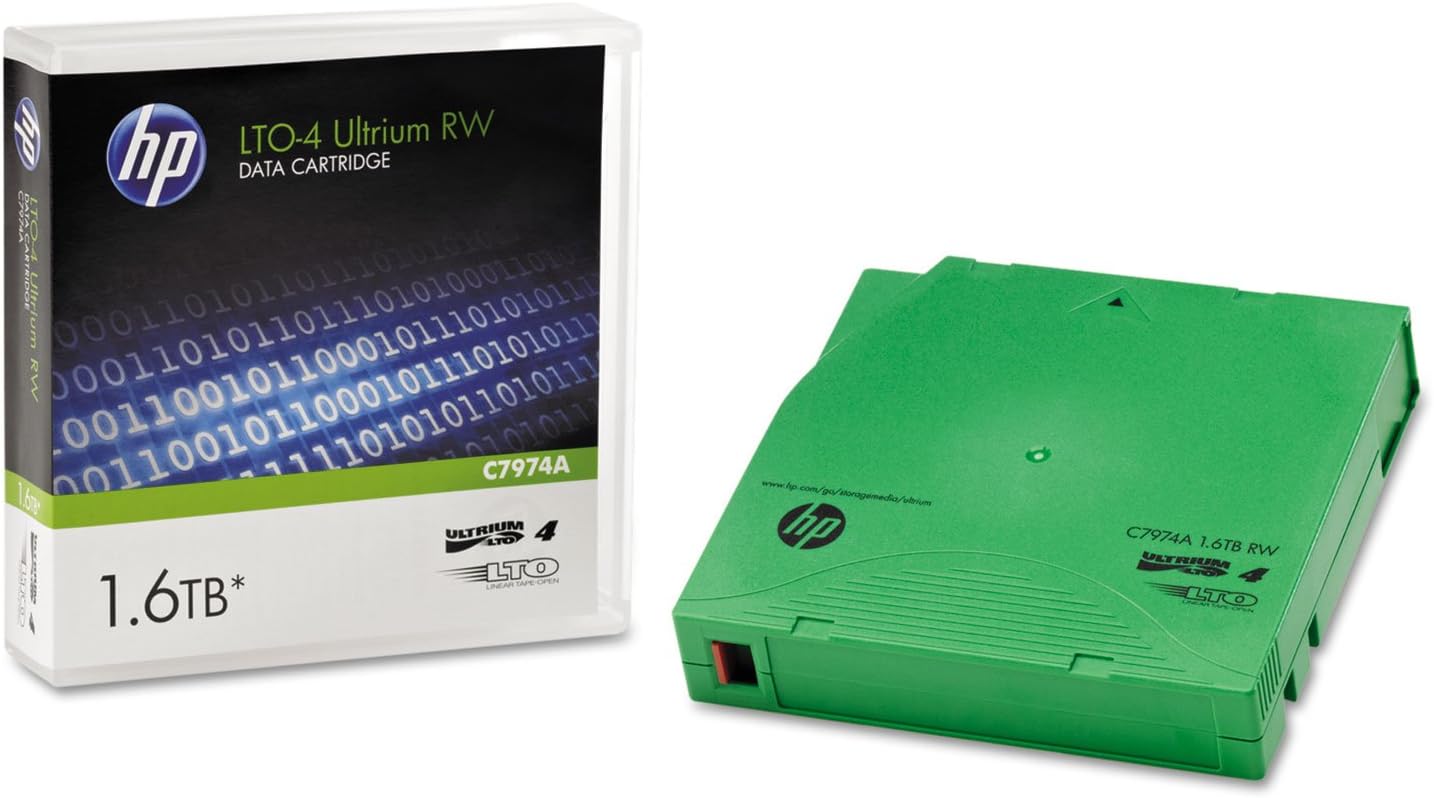

HP C7974A LTO4 Ultrium 1.6TB Rewritable Data Cartridge

Name: HP C7974A LTO4 Ultrium 1.6TB Rewritable Data Cartridge
Brand: HP
SKU: C7974A LTO4 Ultrium

Overview

The HP C7974A is an LTO-4 Ultrium data cartridge rated at 800GB native and 1.6TB compressed capacity, operating within the LTO-4 generation standard that set a then-significant benchmark for sequential backup throughput. The native AES-256 bit encryption is a hardware-level implementation — meaning encryption and decryption happen at the drive mechanism, not on the host CPU, which preserves backup job throughput when security is enabled. Self-diagnostic and active head-cleaning features embedded in the cartridge serve a practical maintenance function: the cartridge continuously monitors its own magnetic layer integrity and reports health status to compatible drives, while simultaneously helping maintain head contact quality during read/write operations. These aren't marketing features — they are measurable reliability mechanisms that reduce undetected media degradation over a cartridge's life.

The C7974A is built for organizations running structured backup and archival workflows where cost-per-GB, long-term retention, and data security are the primary design parameters. It belongs in tape library environments — enterprise NAS backups, broadcast asset archival, medical record retention, and any workload where regulatory compliance requires offline, encrypted, air-gapped copies of data. Where it does not fit: any scenario requiring fast or random access to individual files, or workflows built around already-compressed or encrypted data sets where the 2:1 compression assumption will not hold. Forward compatibility is a real planning factor: LTO-5 and LTO-6 drives will read these cartridges, but LTO-7 and beyond will not, so organizations still actively using LTO-4 media should have a defined migration timeline for long-horizon archives.

Key Features

Sold as 1 Each.

High capacity; low cost per GB.

Native AES-256 bit key encryption.

Active internal head cleaning; self-diagnostic capacities.

Dependable record retention.

Specifications

Brand

HP

Model

C7974A

Format

LTO-4 Ultrium

Native Capacity

800 GB

Compressed Capacity

1.6 TB (2:1 ratio)

Encryption

Native AES-256 bit hardware encryption

Head Cleaning

Active internal

Self-Diagnostic

Yes

Sold As

1 cartridge

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

800GB native capacity per cartridge delivers a low cost-per-GB storage tier that on-site disk cannot match for long-term archiving.
Native AES-256 bit hardware encryption secures data at the cartridge level without a CPU overhead penalty on the host system.
Active internal head cleaning extends drive head life and reduces maintenance cycles between dedicated cleaning cartridge uses.
Self-diagnostic capability allows the cartridge to report media health status to compatible drives, enabling proactive retirement before data loss occurs.
LTO-4 media is readable by LTO-5 and LTO-6 drives, providing a meaningful migration window for archive longevity.

👎 Cons

2:1 compression ratio assumption for the 1.6TB rating is unrealistic for modern workloads — encrypted backups, compressed video, and database snapshots will land far closer to the 800GB native figure.
LTO-7 and later generation drives cannot read LTO-4 cartridges, which creates a hard migration deadline for archives stored on this media format.
Sequential-access tape architecture means random retrieval of individual files is slow compared to any disk or flash-based solution — unsuitable for operational restore scenarios requiring fast access.
Hardware encryption requires compatible HBA and software support — without that infrastructure in place, the AES-256 feature is inaccessible.

Frequently Asked Questions

What is the native vs. compressed capacity of the HP C7974A, and what compression ratio does that assume?

Native capacity is 800GB; compressed capacity is rated at 1.6TB, which assumes a 2:1 compression ratio. Real-world compressed capacity depends entirely on your data's compressibility — already-compressed files (video, ZIP archives, encrypted data) will yield little to no compression gain, so you should plan storage around the 800GB native figure for worst-case.

Which LTO drive generations can read and write this cartridge?

LTO-4 cartridges can be written and read by LTO-4 drives. LTO-5 and LTO-6 drives support backward read compatibility for LTO-4 media, but LTO-7 and later drives do not — this is an important consideration when planning long-term archive migrations.

Does the HP C7974A support hardware encryption, and what is required to use it?

Yes. The cartridge supports native AES-256 bit key encryption, but encryption must be enabled and managed at the drive or host bus adapter level — the cartridge itself does not hold encryption keys. Your backup software and HBA must support LTO-4 hardware encryption to leverage this feature.

What does the active internal head cleaning feature do, and does it replace a dedicated cleaning cartridge?

The active internal head cleaning mechanism cleans the drive head during normal tape operation, reducing the frequency of scheduled manual cleaning cycles. It does not entirely replace a dedicated LTO cleaning cartridge — periodic use of a proper cleaning cartridge is still recommended per manufacturer maintenance schedules.

What is the rated data transfer rate for an LTO-4 drive using this cartridge?

LTO-4 drives are rated at 120MB/s native transfer speed (up to 240MB/s compressed). This is a drive spec, not a cartridge spec, but the HP C7974A is certified to sustain these transfer rates in a compatible LTO-4 mechanism.
