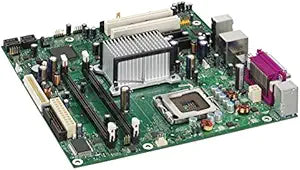

Intel BOXD946GZABLPP D946GZAB Desktop Motherboard — main product image
Intel

Intel BOXD946GZABLPP D946GZAB Desktop Motherboard

Intel D946GZAB microATX motherboard provides a reliable Socket 775 foundation with DDR2 support and integrated video for legacy system builds.

View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Intel D946GZAB (BOXD946GZABLPP) is a microATX desktop motherboard built around the Intel 946GZ chipset, designed for LGA 775 processors. This board supports a range of Socket 775 CPUs from Intel's lineup, including Core 2 Duo, Pentium 4, and Celeron processors, paired with DDR2 memory. While this platform is well past its prime in terms of current technology, it remains a viable option for users who need to build or replace components in legacy systems, run older software that requires specific hardware, or maintain existing workstation setups where an upgrade to modern components is not practical or necessary.

The D946GZAB includes several integrated features that reduce the need for additional expansion cards in basic configurations. Onboard video provides display output for desktop computing tasks, and integrated Fast Ethernet (100Mbps) delivers wired network access. A PCIe expansion slot is available for adding a discrete graphics card or other peripherals when the integrated options are insufficient. SATA connectivity supports hard drives and optical drives of the era. The microATX form factor makes this board compatible with a wide variety of PC cases, from compact microATX enclosures to full-size ATX towers, giving builders flexibility in their chassis selection.

Specifications

Form Factor
MicroATX (MATX)
Processor Socket
LGA 775 (S775)
Chipset
Intel 946GZ
Memory Type
DDR2
Storage Interface
SATA
Expansion Slots
PCIe
Integrated Video
Yes
Integrated Networking
Fast Ethernet (100Mbps)

Pros & Cons

👍 Pros

  • Integrated video output eliminates the need for a dedicated graphics card in basic system builds
  • MicroATX form factor fits a wide range of case sizes from compact to full tower
  • Built-in Fast Ethernet provides wired network connectivity out of the box
  • PCIe expansion slot allows adding a discrete graphics card or other expansion cards
  • Reliable Intel chipset design suited for stable, long-running legacy systems

👎 Cons

  • Socket 775 and DDR2 support limit this board to older, discontinued processor and memory generations
  • Fast Ethernet tops out at 100Mbps, which is slow compared to modern Gigabit Ethernet standards
  • DDR2 memory is increasingly difficult to source and offers lower performance than current DDR4/DDR5
  • Integrated graphics provide only basic display output, unsuitable for anything beyond simple desktop use
  • No SATA III or USB 3.0 support, limiting storage and peripheral transfer speeds to older standards

Frequently Asked Questions

It uses the LGA 775 (Socket T) interface, compatible with Intel Core 2 Duo, Core 2 Quad, Pentium 4, Pentium D, and Celeron processors of that era.
Yes, the D946GZAB includes integrated video (VID), allowing you to connect a display without needing a separate graphics card.
It supports DDR2 memory modules, which are an older standard — DDR3 or DDR4 modules are not compatible with this board.
It is a microATX (MATX) motherboard, which fits in both microATX and standard ATX cases but not in mini-ITX enclosures.
Yes, it includes integrated Fast Ethernet (FETH), providing a wired network connection at up to 100Mbps without requiring a separate network card.
