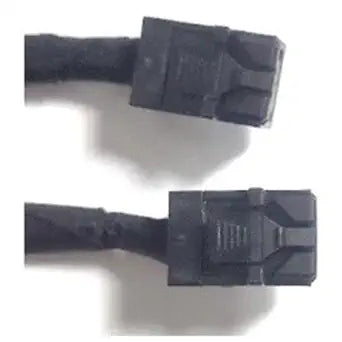

Intel CYPCBLHDHDXXX1 MiniSAS HD Server Cable

Name: Intel CYPCBLHDHDXXX1 MiniSAS HD Server Cable
Brand: Intel
SKU: CYPCBLHDHDXXX1

Reliable Mini-SAS HD to Mini-SAS HD server cable engineered by Intel for base board to HSBP connectivity.

$76.24*

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Intel CYPCBLHDHDXXX1 Mini-SAS HD Cable is a server-grade internal cable designed for a specific but critical role: connecting the base board (motherboard or SAS controller) to the Hot-Swap Backplane (HSBP) inside Intel server chassis. Using Mini-SAS HD connectors on both ends, the cable supports the high data throughput that SAS-3 interfaces demand, making it suitable for enterprise storage arrays where drive performance and reliability are paramount. This is an OEM-grade component built to Intel's specifications, ensuring signal integrity and physical compatibility within supported Intel server platforms.

For IT administrators and system builders working with Intel server infrastructure, this cable eliminates the guesswork of sourcing third-party alternatives that may or may not fit correctly. The Mini-SAS HD interface standard ensures backward compatibility with SAS-2 devices while offering the bandwidth headroom of SAS-3. As with any internal server cable, buyers should verify their specific chassis model and backplane configuration against Intel's compatibility documentation to confirm this is the correct part number for their build.

Specifications

Brand

Intel

Model

CYPCBLHDHDXXX1

First End Connector

Mini-SAS HD

Second End Connector

Mini-SAS HD

Application

Base board to HSBP connection

Pros & Cons

👍 Pros

Mini-SAS HD connectors on both ends provide a secure, high-bandwidth connection for server storage paths.
Manufactured by Intel to ensure compatibility with Intel server chassis and backplane configurations.
Supports high-speed SAS data transfer rates for demanding server storage workloads.
Straightforward base-board-to-HSBP connection simplifies internal server cabling.

👎 Cons

Designed specifically for Intel server platforms, limiting use in third-party or non-Intel chassis.
Cable length is not specified in the listing, making it difficult to confirm fitment in deeper server enclosures.
Only provides a single SAS channel path; multiple cables may be needed for redundant or multi-backplane configurations.
No product listing detail on shielding or cable bend radius, which matters in tight server enclosures.

Frequently Asked Questions

What connectors does this Intel Mini-SAS HD cable use?

It features a Mini-SAS HD connector on both ends — one for the server base board and one for the Hot-Swap Backplane (HSBP).

What is the purpose of this Intel CYPCBLHDHDXXX1 cable?

This cable is designed to connect the base board (motherboard/controller) to the HSBP (Hot-Swap Backplane) inside compatible Intel server chassis for SAS/SATA drive connectivity.

Is this cable compatible with all server brands?

No, the Intel CYPCBLHDHDXXX1 is designed specifically for use in Intel server platforms. Check your server chassis documentation for cable compatibility before purchasing.

Does this cable support SAS-3 (12 Gbps) transfer speeds?

Mini-SAS HD connectors are designed to support SAS-3 speeds up to 12 Gbps per lane, enabling high-speed data transfer between the controller and storage backplane.
