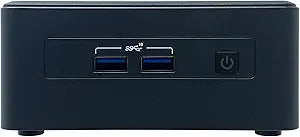

Intel NUC11TNHi5 Pro Mini PC i5 11th Gen — main product image
Intel NUC11TNHi5 Pro Mini PC i5 11th Gen
Intel NUC11TNHi5 Pro Mini PC i5 11th Gen
Intel NUC11TNHi5 Pro Mini PC i5 11th Gen
Intel NUC11TNHi5 Pro Mini PC i5 11th Gen
Intel NUC11TNHi5 Pro Mini PC i5 11th Gen
Intel NUC11TNHi5 Pro Mini PC i5 11th Gen
Intel

Intel NUC11TNHi5 Pro Mini PC i5 11th Gen

i5-1135G764GB DDR4512GB NVMeBluetooth 5.0USB 3.2

A palm-sized mini PC with 11th Gen Intel Core i5 power, Thunderbolt 4, and quad-display support for modern workspaces.

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Intel NUC11TNHi5 Pro Mini PC packs a full desktop experience into a chassis small enough to mount behind a monitor or tuck into a shelf. At its core is an 11th Generation Intel Core i5-1135G7 quad-core processor with a base clock of 2.40 GHz and Turbo Boost up to 4.20 GHz, paired with 64GB of DDR4 3200 MHz memory. Storage duties are split between a 512GB NVMe SSD for fast boot and application loading and a 2TB hard drive for bulk file storage, giving users a practical balance of speed and capacity without external drives.

Connectivity is where this NUC truly distinguishes itself. Thunderbolt 4 and Thunderbolt 3 ports enable high-bandwidth peripherals and external storage, while dual HDMI 2.0b outputs and dual DisplayPort 1.4a via USB-C allow up to four monitors to run simultaneously — a standout feature for control rooms, trading desks, or multi-tasking professionals. Intel Wi-Fi 6 AX201 and Bluetooth 5.0 handle wireless duties, complemented by an Intel i225-LM Ethernet controller for wired networks. With TPM 2.0 security, a Kensington lock slot, and Windows 10 Pro pre-installed, the NUC11TNHi5 is configured for business deployment out of the box, backed by a two-year warranty and free tech support from Techno Intelligence.

Key Features

11th Generation Intel Core i5-1135G7 Quad-Core 2.40 GHz Processor (8MB Smart Cache, Turbo Boost up to 4.20 GHz)

64GB DDR4 3200 MHz Memory, 512GB NVMe SSD + 2TB Hard Drive, Integrated Intel Iris Xe Graphics, Windows 10 Pro (64-bit)

Intel Wi-Fi 6 AX201 + Bluetooth 5.0, Intel Ethernet Controller i225-LM, 2x USB 3.2 (Front), 1x USB 3.2, 1x USB 2.0 (Rear)

1x Thunderbolt 4, 1x Thunderbolt 3, Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C Multi 4-Monitor Support

2-Year Warranty by Techno Intelligence & Free Tech Support, TPM 2.0 Security, Kensington Lock

Specifications

Processor
Intel Core i5-1135G7 (4 cores / 8 threads, 2.40 GHz base, up to 4.20 GHz Turbo, 8MB Smart Cache)
Memory
64GB DDR4 3200 MHz
Storage
512GB NVMe SSD + 2TB HDD
Graphics
Intel Iris Xe (integrated)
Operating System
Windows 10 Pro 64-bit
Wireless
Intel Wi-Fi 6 AX201 + Bluetooth 5.0
Ethernet
Intel i225-LM Gigabit
Front Ports
2x USB 3.2
Rear Ports
1x USB 3.2, 1x USB 2.0
Thunderbolt
1x Thunderbolt 4, 1x Thunderbolt 3
Video Output
Dual HDMI 2.0b (with HDMI CEC), Dual DP 1.4a via Type-C
Security
TPM 2.0, Kensington Lock
Warranty
2-Year (Techno Intelligence)

Frequently Asked Questions

Yes. It supports up to four displays simultaneously using its dual HDMI 2.0b ports and dual DisplayPort 1.4a outputs via the Thunderbolt/USB-C connectors.
The unit ships with 64GB DDR4 and a 512GB NVMe SSD plus 2TB HDD already installed. The NUC11 platform does support user-accessible memory and M.2 slots, but this particular configuration from Techno Intelligence comes pre-built.
It ships with Windows 10 Pro (64-bit) pre-installed.
The Intel Iris Xe integrated graphics and quad-core i5-1135G7 handle 4K media playback and light video editing well, though it is not designed for heavy GPU-accelerated rendering.
Yes. It features Intel Wi-Fi 6 AX201 and Bluetooth 5.0 built in, along with an Intel i225-LM Gigabit Ethernet port.
