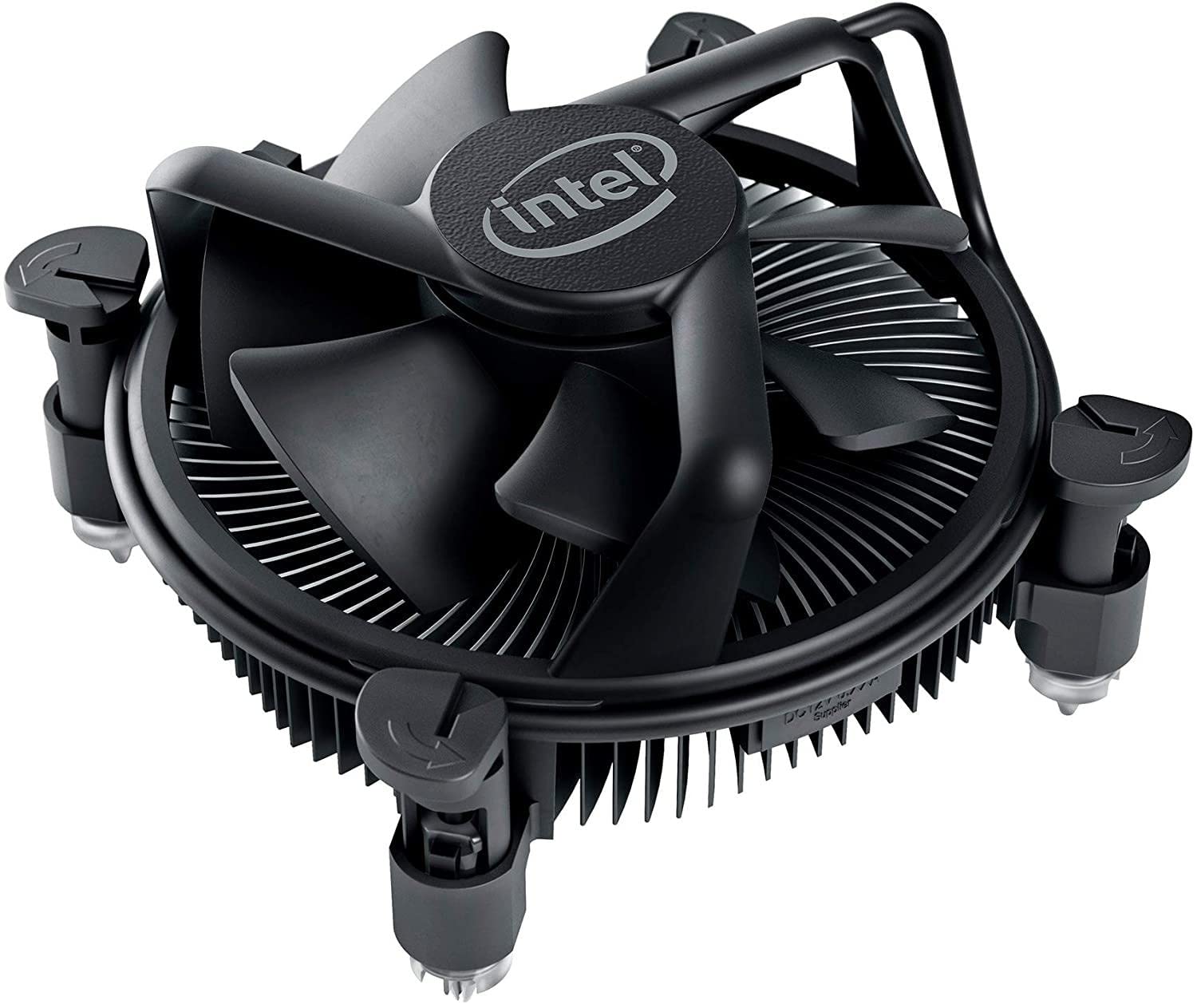

Intel K69237-001 LGA115X/1200 Aluminum CPU Cooler Heatsink

Name: Intel K69237-001 LGA115X/1200 Aluminum CPU Cooler Heatsink
Brand: Intel
SKU: K69237-001

Overview

The Intel K69237-001 is a PWM-controlled aluminum heatsink with a copper-core base, designed to cool LGA 115X and LGA 1200 Intel processors rated up to 65W TDP. The copper base plate is the critical engineering detail here: copper's thermal conductivity (~400 W/m·K) outperforms aluminum (~205 W/m·K), pulling heat away from the CPU die more efficiently before transferring it into the aluminum fin array for dissipation. The 4-pin PWM fan tops out at 2500 RPM, giving the motherboard full authority over speed ramp curves and keeping the cooler acoustically neutral during light use.

This cooler belongs in any build where the processor is a locked 65W part — Core i3-10100, i5-10400, i7-10700 non-K, and equivalent Xeon E-series CPUs — and where the budget or system purpose doesn't justify aftermarket cooling. It's particularly useful in office workstations, home servers, and compact HTPC builds where the premium of a tower cooler is wasted on a CPU that will never see sustained high-TDP workloads. It is not a fit for overclocking-capable K-series processors or any CPU with a 95W+ TDP, where sustained all-core loads will push beyond the cooler's thermal ceiling.

Key Features

Intel LGA 115X 1200 10th gen PWM Aluminum Cooler Heatsink K69237-001

65W of cooling capacity (depending on case air flow and ambient temps)

Brand new, was bundled with Intel 10 Generation CPU

Will work for Socket 1200, 115x etc. (not compatible with Intel X299 chipset sockets or AMD).

Order will come with One Unit only. Price is for per pcs.

Specifications

Cooling Capacity

65W (depending on case air flow and ambient temps)

CPU Socket Compatibility

LGA 115X, 1200

CPU Generation Compatibility

Intel 10th Generation

Heatsink Material

Aluminum

Chipset Compatibility

Not compatible with Intel X299 chipset or AMD

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

Copper-core base provides meaningfully better heat transfer than a pure aluminum design at the same price point.
4-pin PWM fan control allows the motherboard to reduce speed at idle, keeping noise levels low during light workloads.
Covers the full LGA 115X and LGA 1200 socket range, making it a versatile drop-in for a wide range of Intel platform builds.
Compact, low-profile form factor fits constrained cases where tower coolers cannot.
Cost-effective solution for 65W TDP CPUs that do not require aftermarket cooling investment.

👎 Cons

Hard ceiling at 65W TDP — any CPU exceeding that rating will thermal throttle under sustained all-core loads with this cooler installed.
No additional thermal paste is included in the OEM packaging, requiring the user to supply compound if none is pre-applied.
2500 RPM maximum fan speed produces audible noise under full load — not ideal for acoustically sensitive home office or studio environments.
Aluminum fin stack, while functional at rated TDP, dissipates heat more slowly than copper or vapor-chamber designs at the thermal boundary.
Single-fan, single-tower design offers no upgrade path for users who later move to higher-TDP processors on the same platform.

Frequently Asked Questions

Which sockets is the K69237-001 compatible with?

It fits Intel LGA 115X (1150, 1151, 1155, 1156) and LGA 1200 sockets. It is not compatible with Intel X299 (LGA 2066) or any AMD platform — the mounting bracket geometry is specific to Intel's consumer 115X/1200 lineup.

What is the cooler's rated TDP, and does that cover all 10th Gen Intel CPUs?

The K69237-001 is rated for 65W TDP. That covers the locked (non-K) 10th Gen Core i3, i5, i7, and Xeon E series parts. CPUs with a 95W or 125W TDP — including unlocked K-series processors — exceed this cooler's thermal budget and will thermal throttle under sustained load.

Does the 4-pin PWM connector mean the fan speed adjusts automatically?

Yes. The 4-pin PWM connector allows the motherboard to modulate fan speed based on CPU temperature. At idle, the fan runs well below its 2500 RPM maximum, reducing acoustic output. Under load, speed ramps to full to maintain thermal headroom.

Is this a retail boxed cooler or an OEM pull?

This is an OEM unit originally bundled with 10th Gen Intel CPUs — it was not sold as a standalone retail product. It ships as a single unit without retail packaging. All mounting hardware is included, but there is no additional thermal paste included beyond what may be pre-applied.

Will this cooler fit in a standard Mini-ITX or Micro-ATX case?

The compact profile of the K69237-001 is well-suited to small-form-factor builds. It has no compatibility conflicts with low-clearance cases that would reject a tower-style cooler. Confirm your case's CPU cooler height clearance, though at stock heatsink dimensions this is rarely an issue.
