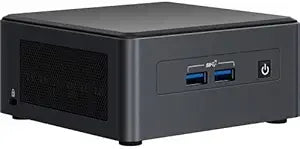

Intel NUC 11 Pro NUC11TNHi5 i5-1135G7 Mini PC Barebone

Compact Power for Business and Home

The Intel NUC 11 Pro NUC11TNHi5 is a versatile barebone system that packs impressive performance into a small form factor. Powered by an 11th Generation Intel Core i5 processor, this NUC is ideal for a wide range of applications, from home entertainment to business productivity. Its compact size and flexible configuration options make it a perfect choice for space-constrained environments.

• Socket: BGA-1449
• Processor Support: 1 x Processor Support
• Processor: Intel Core i5 11th Gen i5-1135G7 Quad-core [4 Core]
• Supported Operating Systems: Windows 10, 64-bit, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu 20.04 LTS
• Board Form Factor: UCFF (4 x 4)
• Internal Drive Form Factor: M.2 and 2.5 Drive
• Number of Internal Drives Supported: 3
• Lithography: 10 nm SuperFin
• TDP: 28 W
• DC Input Voltage Supported: 12-24 VDC
• Processor Included: Intel Core i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
• Number of Cores: 4
• Number of Threads: 8
• Max Turbo Frequency: 4.20 GHz
• Max Memory Size: 64 GB
• Memory Types: DDR4-3200 1.2V SO-DIMMs
• Max Number of Memory Channels: 2
• Max Number of DIMMs: 2
• ECC Memory Supported: No
• Integrated Graphics: Yes
• Graphics Output: Dual HDMI 2.0b w / HDMI CEC, Dual DP 1.4a via Type C
• Number of Displays Supported: 4
• PCI Express Revision: Gen 4 (m.2 22x80 slot) Gen 3 (otherwise)
• PCI Express Configurations: PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E)
• M.2 Card Slot (wireless): 22x30 (E)
• M.2 Card Slot (storage): 22x80 NVMe (M) 22x42 SATA (B)
• Number of USB Ports: 4
• USB Configuration: Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
• Total Number of SATA Ports: 1
• Serial Port via Internal Header: Yes
• Integrated LAN: Intel Ethernet Controller i225-LM
• Integrated Wireless: Intel Wi-Fi 6 AX201
• Integrated Bluetooth: Yes
