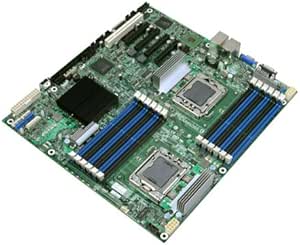

Intel S5520HC Chipset Nethalum Support
★★★★★
Unlock Server Performance with Advanced Chipset TechnologyIntroducing the Intel S5520HC Chipset. Designed to support Nethalum processors, this chipset delivers the performance and reliability required for demanding server applications.Specifications: Brand: Intel Model: S5520HC Chipset: S5500 ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unlock Server Performance with Advanced Chipset Technology
Introducing the Intel S5520HC Chipset. Designed to support Nethalum processors, this chipset delivers the performance and reliability required for demanding server applications.
Specifications:
- Brand: Intel
- Model: S5520HC
- Chipset: S5500
- Socket Type: LGA1366
- Memory Support: MAX 48GB DDR3
- Manufacturing Process: 45NM
Key Features
DDR3 45NM2processor LGA Socket 12 memory DIMM 240-pin 1 PCI Express 2.0 x16 - full-length, full-height ( x8 mode ) 3 PCI Express x8 - full-length, full-height 1 PCI Express x8 - full-length, full-height ( x4 mode ) 1 PCI (5V)
Specifications
Chipset
S5520HC (Nethalum Support)
Memory Type Supported
DDR3
Memory DIMM Slots
12 (240-pin)
Processor Socket
LGA Socket (for 45nm processors)
PCI Express 2.0 x16 Slots
1 (full-length, full-height, x8 mode)
PCI Express x8 Slots
3 (full-length, full-height)
PCI Express x8 Slots (x4 mode)
1 (full-length, full-height)
PCI Slots
1 (5V)
Pros & Cons
👍 Pros
- Supports DDR3 memory, which allows for compatibility with a specific range of existing hardware and cost-effective upgrades.
- Features 12 memory DIMM slots, enabling extensive RAM configurations for demanding server or workstation applications.
- Equipped with a LGA Socket for 45nm processors, catering to Intel Nethalum architecture for robust computing tasks.
- Offers multiple PCI Express 2.0 slots, including one x16 (x8 mode) and three x8 slots, providing ample expansion for graphics cards or specialized hardware.
- Includes a legacy PCI (5V) slot, useful for integrating older expansion cards into a modern system.
👎 Cons
- Uses DDR3 memory, which is an older standard compared to current DDR4 or DDR5, potentially limiting memory bandwidth.
- The PCI Express 2.0 standard is older, offering lower bandwidth than newer generations like PCIe 3.0 or 4.0, which could bottleneck modern components.
- The "Nethalum" chipset and 45nm processor support indicate an older generation platform, which may not be energy-efficient compared to contemporary motherboards.
- The description does not specify the exact form factor (e.g., ATX, EATX), which is crucial for case compatibility.
- Availability of compatible 45nm LGA Socket processors might be limited for new builds or replacements.
Frequently Asked Questions
What type of memory does the Intel S5520HC chipset support?
The Intel S5520HC chipset supports DDR3 memory, specifically utilizing 240-pin DIMM modules.
How many memory slots are available on this motherboard?
This motherboard features 12 memory DIMM slots, allowing for significant memory expansion.
What kind of processors are compatible with this motherboard's LGA Socket?
The LGA Socket on this motherboard is designed to support 45nm processors, indicating compatibility with Intel Nethalum architecture CPUs.
Does this motherboard have PCI Express slots for expansion cards?
Yes, it includes multiple PCI Express 2.0 slots, specifically one x16 slot (operating in x8 mode), three standard x8 slots, and one x8 slot (operating in x4 mode).
Is there support for older PCI cards on this motherboard?
Yes, the Intel S5520HC motherboard includes one legacy PCI (5V) slot, allowing for the use of older expansion cards.
What is the generation of the PCI Express slots on this board?
The PCI Express slots on this motherboard are of the 2.0 generation.
