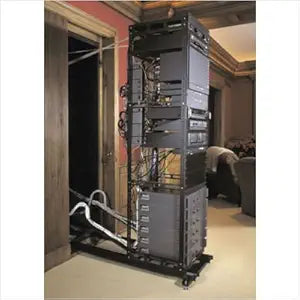

Middle Atlantic AXS-42 in-Wall Rack System 42U 20" Depth

Name: Middle Atlantic AXS-42 in-Wall Rack System 42U 20" Depth
Brand: Middle Atlantic
SKU: AXS-42

42 in

Forty-two rack units at 20" depth and a 650 lb weight rating turn dead wall cavity space into a high-density, permanently installed equipment bay.

View price on Amazon

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Optimize Your Rack Space with the Middle Atlantic AXS in-Wall System Extension

The Middle Atlantic AXS-42 is an in-wall system extension designed to maximize your rack space and streamline cable management. This robust and versatile system offers exceptional strength, easy installation, and efficient cable routing.

Specifications:

Brand: Middle Atlantic
Model: AXS-42
Rack Spaces: 42U
Depth: 20"
Weight Capacity: 650 lbs (with proper weight distribution)
Mounting Type: 10-32 Threaded

Key Features

20 dp ax-s, 42 space _DELETE_

Frequently Asked Questions

What does "in-wall" mean for the AXS-42, and does it require a dedicated wall cavity?

Yes — the AXS-42 is designed to be recessed into a wall cavity, integrating the rack flush with or behind the wall surface. This requires a framed opening of sufficient depth (minimum 20") and proper structural support. It is not a surface-mount or freestanding rack; the wall opening and framing are the installer's responsibility.

The AXS-42 is rated for 650 lbs — is that a total static load, and does weight distribution matter?

The 650 lb rating applies with proper weight distribution across all 42U of rack space, not concentrated in a few units. Loading heavy equipment at the top of the rack without adequate ballast or anchoring at the bottom can create tipping or structural stress that exceeds what the mounting points can safely handle. Middle Atlantic's installation documentation should be followed carefully for load placement.

What thread standard do the AXS-42's rack rails use?

The AXS-42 uses 10-32 threaded mounting holes — the standard for professional AV and IT equipment rack mounting. This is compatible with the vast majority of rackmount equipment, though you'll need 10-32 cage nuts and screws, which are not always included with equipment and may need to be purchased separately.

Can the AXS-42 accommodate equipment deeper than 20"?

The rack's usable depth is 20". Equipment that is deeper than 20" — including some high-density servers and UPS units — will not fit within the in-wall cavity. This is the primary constraint to verify against your equipment list before specifying the AXS-42.

Is the AXS-42 sold as a complete enclosure, or does it require additional Middle Atlantic panels and accessories?

The AXS-42 is described as an in-wall system extension — verify with Middle Atlantic whether doors, side panels, and a top cap are included or sold separately. Finished in-wall rack installations typically require additional trim and closure components beyond the rail frame itself.

Strengths & Trade-offs

👍 Pros

42U of rack space in a 20"-deep in-wall footprint reclaims floor space that a freestanding rack would occupy — a meaningful gain in space-constrained control rooms and server closets.
The 650 lb weight rating accommodates a fully populated 42U bay including dense switching, patching, and processing equipment without requiring an external floor stand.
10-32 threaded rails are natively compatible with the broadest range of professional AV and IT rackmount equipment without requiring adapter hardware.
Permanent in-wall installation eliminates rack movement and the vibration and cable strain that mobile or light-duty racks accumulate over time.
Middle Atlantic's rack engineering is a known quantity in commercial AV and broadcast integrations, carrying implicit credibility in professional system designs.

👎 Cons

The 20" maximum depth is a hard constraint that excludes high-density servers, larger UPS units, and deep network appliances that are increasingly common in modern infrastructure builds.
In-wall installation is permanent and requires a properly framed, load-bearing wall cavity — retrofitting into an existing finished space is a significant construction project, not a weekend install.
42U of rack space in a single in-wall bay concentrates a substantial amount of equipment behind a single access point; rear access for cable management and servicing must be planned into the wall opening design.
The listed weight capacity requires correct weight distribution — there is no built-in mechanism to prevent dangerous top-heavy loading by an inexperienced installer.
No cable management accessories or power distribution are included; a fully functional installation will require additional Middle Atlantic or third-party components.
