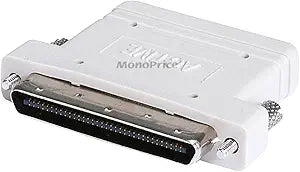

Monoprice 100788 0.8mm VHDC M Active LED Terminator
★★★★★
Ensure Signal Integrity with Active TerminationThe Monoprice 100788 Active Terminator is designed to reduce interference and prevent signal reflections in high-density cable interconnect systems, ensuring optimal performance and reliability. Specifications Connector: 68-pin Very High Density Ca...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Ensure Signal Integrity with Active Termination
The Monoprice 100788 Active Terminator is designed to reduce interference and prevent signal reflections in high-density cable interconnect systems, ensuring optimal performance and reliability.
Specifications
- Connector: 68-pin Very High Density Cable Interconnect (VHDCI)
- Type: Active Terminator
- Indicator: LED Indicator Light
Key Features
68-pin Very High Density Cable Interconnect (VHDCI) connector active terminator with LED indicator light
Terminators reduce interference on a system by preventing RF signals at the end of an open line from being reflected back
They are placed at the end of a daisy chain line to match impedance and minimize reflection
An active terminator is a one with a voltage regulator to compensate for variations in power
Monoprice continually strives to improve its product line to bring our customers the best products available
Therefore changes may be made to listed specifications without prior notice
Item received may not match photo or specs shown
Specifications
Brand
Monoprice
Model
100788
Connector Type
68-pin Very High Density Cable Interconnect (VHDCI)
Type
Active Terminator
Feature
LED Indicator Light
Function
Reduces RF signal reflection, Matches impedance
Power Feature
Voltage regulator for power variation compensation
Pros & Cons
👍 Pros
- Features a 68-pin Very High Density Cable Interconnect (VHDCI) connector for specialized system compatibility.
- Includes an active terminator with a voltage regulator, compensating for power variations to ensure stability.
- Helps to reduce interference on a system by preventing RF signals from reflecting back on open lines.
- Designed to be placed at the end of a daisy chain line, matching impedance and minimizing reflection for clean signals.
- Equipped with an LED indicator light, providing a visual cue of its operational status.
👎 Cons
- The specific function as an active terminator may not be applicable for all general cabling needs.
- Monoprice states that changes may be made to listed specifications without prior notice, leading to potential discrepancies.
- The item received may not precisely match the photo or specs shown, which could be an issue for precise installations.
- Its specialized VHDCI connector limits compatibility to systems that utilize this specific interface.
- The purpose of minimizing reflection is specific to certain electronic setups and not a universal benefit for all users.
Frequently Asked Questions
What is the primary purpose of the Monoprice 100788 Active LED Terminator?
The primary purpose of this active terminator is to reduce interference on a system by preventing RF signals at the end of an open line from reflecting back, and to match impedance in a daisy chain setup.
What type of connector does this terminator use?
It features a 68-pin Very High Density Cable Interconnect (VHDCI) connector, designed for specific system requirements.
What does the "active" in "active terminator" signify for this product?
An active terminator, like this Monoprice unit, includes a voltage regulator to compensate for variations in power, enhancing signal stability.
Does this terminator provide any visual indication of its operation?
Yes, it is equipped with an LED indicator light, which provides a visual confirmation of its status.
Can the specifications of this product change?
Monoprice states that specifications may be subject to change without prior notice, and the item received might not always precisely match the photo or listed specs.
