Monoprice 100789 0.8mm VHDC M LVD LED Terminator
★★★★★
Ensure Signal Integrity with External Terminators The Monoprice 0.8mm VHDC M LVD External Terminator reduces interference on your system by preventing RF signals from reflecting back. Featuring an LED indicator light, this terminator ensures proper impedance matching and minimizes signal reflecti...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Ensure Signal Integrity with External Terminators
The Monoprice 0.8mm VHDC M LVD External Terminator reduces interference on your system by preventing RF signals from reflecting back. Featuring an LED indicator light, this terminator ensures proper impedance matching and minimizes signal reflection.
Specifications:
- Brand: Monoprice
- Model: 100789
- Connector Type: 68-pin VHDCI (Very High Density Cable Interconnect)
- System Type: LVD (Low Voltage Differential)
- Feature: LED Indicator Light
- Function: Signal Termination
Key Features

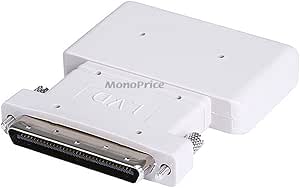

68-pin Very High Density Cable Interconnect (VHDCI) connector terminator for Low Voltage Differential (LVD) systems Features LED indicator light
Terminators reduce interference on a system by preventing RF signals at the end of an open line from being reflected back
They are placed at the end of a daisy chain line to match impedance and minimize reflection
Specifications
Connector Type
68-pin VHDCI
System Compatibility
LVD LED
Feature
LED indicator light
Function
Reduces interference, matches impedance
Pros & Cons
👍 Pros
- This terminator is specifically designed for 68-pin Very High Density Cable Interconnect (VHDCI) connectors.
- It is intended for use with Low Voltage Differential (LVD) systems, ensuring compatibility with specific setups.
- The terminator includes an LED indicator light, providing visual confirmation of its operational status.
- Effectively reduces interference by preventing RF signals from reflecting back on open lines.
- Designed to match impedance at the end of a daisy chain, which minimizes signal reflection for stable performance.
👎 Cons
- This product is highly specialized for LVD systems with VHDCI connectors, limiting its general applicability.
- The LED indicator light, while useful, is the only specified diagnostic feature.
- Its function is strictly to terminate a line, not to transmit or enhance data signals actively.
- The terminator itself does not include any cabling, which must be purchased separately.
- Specific technical details regarding its impedance rating or power consumption are not provided.
Frequently Asked Questions
What type of connector is this terminator designed for?
This Monoprice terminator is specifically designed for 68-pin Very High Density Cable Interconnect (VHDCI) connectors.
What kind of systems is this terminator compatible with?
It is intended for use with Low Voltage Differential (LVD) systems, helping to manage signal integrity within such setups.
Does this terminator have any indicator lights?
Yes, the Monoprice 100789 terminator features an LED indicator light, which provides a visual cue regarding its status.
What is the primary purpose of using this terminator?
The main purpose of this terminator is to reduce interference on a system by preventing RF signals from reflecting back at the end of an open line. It also helps to match impedance to minimize reflection.
Where should this terminator be placed in a system?
Terminators like this one are typically placed at the end of a daisy chain line to ensure proper impedance matching and signal termination.
