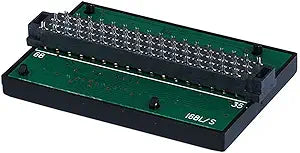

Monoprice 100800 Ultra 320 HPDB68F LVD/SE Terminator
Ensure Signal Integrity with Monoprice Ultra 320 Terminator The Monoprice 100800 Ultra 320 HPDB68F LVD/SE INT. Terminator is designed to reduce interference in your system by preventing RF signals from reflecting back. This terminator is placed at the end of a daisy chain line to match impedance ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Ensure Signal Integrity with Monoprice Ultra 320 Terminator
The Monoprice 100800 Ultra 320 HPDB68F LVD/SE INT. Terminator is designed to reduce interference in your system by preventing RF signals from reflecting back. This terminator is placed at the end of a daisy chain line to match impedance and minimize reflection. Ideal for Low Voltage Differential (LVD) systems and Single Ended (SE) connectors, ensuring optimal signal integrity.
Specifications:
- Type: Terminator
- Connector Type: HPDB68F
- Compatibility: Ultra 320, LVD (Low Voltage Differential), SE (Single Ended)
- Function: Reduces interference by preventing signal reflection
Key Features
Terminators reduce interference on a system by preventing RF signals at the end of an open line from being reflected back
They are placed at the end of a daisy chain line to match impedance and minimize reflection
This terminator is for Low Voltage Differential (LVD) systems Single Ended (SE) connectors
It comes with a high pitch 68 pin female connector (HPDB68F)
Specifications
Product Type
LVD/SE Terminator
Connector Type
HPDB68F (High Pitch 68 Pin Female)
System Compatibility
Low Voltage Differential (LVD) systems, Single Ended (SE) connectors
Function
Reduces interference, matches impedance, minimizes reflection
Brand
Monoprice
Pros & Cons
👍 Pros
- Effectively reduces interference by preventing RF signals from reflecting back on a system.
- Designed to match impedance at the end of a daisy chain line, which minimizes signal reflection.
- Specifically created for Low Voltage Differential (LVD) systems, ensuring proper signal termination.
- Compatible with Single Ended (SE) connectors, offering versatility for specific setups.
- Features a high pitch 68 pin female connector (HPDB68F), providing a secure and reliable connection.
👎 Cons
- This terminator is specifically for LVD/SE systems, making it unsuitable for other types of SCSI or data systems.
- Limited to a high pitch 68 pin female connector, which may not fit all types of SCSI interfaces.
- Its sole function is termination, offering no data transfer or power supply capabilities beyond that.
Frequently Asked Questions
What is the purpose of this Monoprice Ultra 320 HPDB68F LVD/SE Terminator?
This terminator reduces interference on a system by preventing RF signals from reflecting back at the end of an open line, ensuring signal integrity.
Which types of systems is this terminator designed for?
It is designed for Low Voltage Differential (LVD) systems and Single Ended (SE) connectors, matching impedance to minimize reflection.
What kind of connector does this terminator feature?
It comes with a high pitch 68 pin female connector (HPDB68F), ensuring compatibility with appropriate interfaces.
Where should this terminator be placed in a system?
Terminators like this one are placed at the end of a daisy chain line to match impedance and minimize signal reflection.
Is this terminator suitable for all types of data cables?
No, it is specifically for LVD/SE systems with a HPDB68F connector and would not be suitable for other data cable types.
