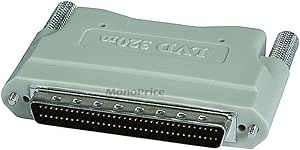

Monoprice 100801 HPDB68 LVD External Terminator
★★★★★
Ensure Signal Integrity with Monoprice HPDB68 LVD External Terminator The Monoprice HPDB68 LVD External Terminator is designed to reduce interference and signal reflection in Low Voltage Differential (LVD) systems. By matching impedance at the end of a daisy chain line, this terminator helps mai...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Ensure Signal Integrity with Monoprice HPDB68 LVD External Terminator
The Monoprice HPDB68 LVD External Terminator is designed to reduce interference and signal reflection in Low Voltage Differential (LVD) systems. By matching impedance at the end of a daisy chain line, this terminator helps maintain signal integrity and ensures reliable data transmission. Essential for systems requiring stable and clean signal performance.
Specifications:
- Brand: Monoprice
- Model: 100801
- Type: External Terminator
- Connector: HPDB68
- Compatibility: Low Voltage Differential (LVD) Systems
- Function: Impedance Matching, Signal Reflection Reduction
Key Features
Terminators reduce interference on a system by preventing RF signals at the end of an open line from being reflected back
They are placed at the end of a daisy chain line to match impedance and minimize reflection
This terminator is for Low Voltage Differential (LVD) systems
It comes with a high pitch 68 pin male connector (HPDB68M)
Specifications
Function
External Terminator
System Type
Low Voltage Differential (LVD)
Connector Type
High Pitch 68 Pin Male Connector (HPDB68M)
Frequently Asked Questions
What is the primary purpose of this Monoprice terminator?
The primary purpose is to reduce interference on a system by preventing RF signals at the end of an open line from reflecting back.
What kind of systems is this terminator designed for?
This terminator is specifically designed for Low Voltage Differential (LVD) systems to ensure proper impedance matching.
What type of connector does this terminator use?
It comes with a high pitch 68 pin male connector (HPDB68M) for compatible system connections.
How does this terminator improve system performance?
It improves performance by matching impedance and minimizing reflection at the end of a daisy chain line, which helps reduce signal errors.
Can this terminator be used with non-LVD systems?
No, this terminator is specifically for Low Voltage Differential (LVD) systems and may not function correctly with other system types.
Where should this terminator be placed in a system?
It should be placed at the end of a daisy chain line to effectively match impedance and minimize reflections.
