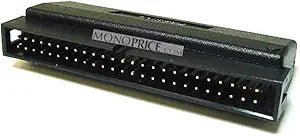

Monoprice 100804 IDC 50-Pin M Terminator Passive
Minimize Interference with Reliable TerminationThe Monoprice IDC 50 M Terminator is designed to reduce interference in your system by preventing RF signals from reflecting back. This single-sided terminator features an IDC 50pin male connector for easy installation at the end of a daisy chain lin...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Minimize Interference with Reliable Termination
The Monoprice IDC 50 M Terminator is designed to reduce interference in your system by preventing RF signals from reflecting back. This single-sided terminator features an IDC 50pin male connector for easy installation at the end of a daisy chain line.
- Connector Type: IDC 50pin Male
- Type: Single Sided
- Function: Impedance Matching and Reflection Minimization
Key Features
Terminators reduce interference on a system by preventing RF signals at the end of an open line from being reflected back
They are placed at the end of a daisy chain line to match impedance and minimize reflection
This terminator is single sided and features a IDC 50pin male connector
Item Package Dimension: 5.3" L x 3.3" W x 0.9" H
Specifications
Brand
Monoprice
Model
100804
Product Type
Terminator
Connector Type
IDC 50-Pin Male
Termination Type
Passive
Sides
Single sided
Function
Reduces interference, matches impedance, minimizes reflection
Package Dimensions
5.3" L x 3.3" W x 0.9" H
Pros & Cons
👍 Pros
- Designed to reduce interference on a system by preventing RF signals from reflecting back.
- Features an IDC 50-pin male connector, offering specific compatibility for relevant systems.
- Helps match impedance at the end of a daisy chain line, which minimizes unwanted signal reflection.
- Functions as a passive terminator, indicating simplicity and typically requiring no external power.
- Item package dimensions are compact, suggesting ease of handling and minimal space requirements for storage.
👎 Cons
- It is a single-sided terminator, which means it may not be suitable for applications requiring double-sided termination.
- Specifically features an IDC 50-pin male connector, limiting its use to systems with compatible female IDC 50-pin ports.
- Its primary function is reducing interference and reflection, so it does not add new functionality or enhance system performance directly.
- The product description is brief, lacking details on specific supported data rates or environmental operating conditions.
- As a passive component, it does not offer active signal conditioning or amplification capabilities.
Frequently Asked Questions
What is the main purpose of the Monoprice 100804 IDC 50-Pin M Terminator?
The main purpose of this terminator is to reduce interference on a system by preventing RF signals at the end of an open line from reflecting back, thereby matching impedance.
What type of connector does this terminator feature?
This terminator is equipped with an IDC 50-pin male connector, ensuring specific compatibility with systems that have the corresponding female port.
Is this a single-sided or double-sided terminator?
The Monoprice 100804 is a single-sided terminator, designed for specific applications where single-ended termination is required.
What are the dimensions of the item package?
The item package has dimensions of 5.3 inches in length, 3.3 inches in width, and 0.9 inches in height, indicating a compact size.
How does this terminator minimize reflection?
It minimizes reflection by being placed at the end of a daisy chain line to match impedance, thereby absorbing signals rather than allowing them to bounce back.
Does this terminator require external power?
As a passive terminator, it typically operates without the need for an external power source, simplifying its integration into a system.
