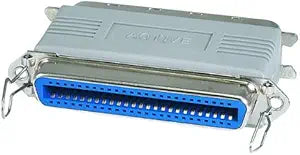

Monoprice 100821 CN50 M/F SCSI Active Terminator
★★★★★
Ensure Signal Integrity with Active TerminationIntroducing the Monoprice CN50 M/F SCSI Terminator, an essential component for maintaining signal integrity in your SCSI systems. Designed to reduce interference and prevent signal reflections, this active terminator ensures reliable data transmissio...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Ensure Signal Integrity with Active Termination
Introducing the Monoprice CN50 M/F SCSI Terminator, an essential component for maintaining signal integrity in your SCSI systems. Designed to reduce interference and prevent signal reflections, this active terminator ensures reliable data transmission. With a Centronics CN 50 pin male connector on one side and a female on the other, it offers versatile connectivity.
- Brand: Monoprice
- Model: 100821
- Type: Active SCSI Terminator
- Connector: CN50 Male to Female
- Function: Reduces interference and prevents RF signal reflection
Key Features
Terminators reduce interference on a system by preventing RF signals at the end of an open line from being reflected back
They are placed at the end of a daisy chain line to match impedance and minimize reflection
This external terminator is double sided and features a Centronics CN 50 pin male connector on one side and a female on the other
Specifications
Type
SCSI Active Terminator
Connector Type
Centronics CN 50 pin Male/Female
Function
Reduces interference, matches impedance, minimizes reflection
Pros & Cons
👍 Pros
- Specifically designed to reduce interference on SCSI systems by preventing RF signals from reflecting.
- Features a double-sided design with both Centronics CN 50 pin male and female connectors, offering versatility for connection.
- Acts as an active terminator, matching impedance and minimizing reflection effectively at the end of a daisy chain line.
- Essential for maintaining signal integrity and stable operation in SCSI environments.
- Monoprice is a brand recognized for providing functional and reliable cable and accessory solutions.
👎 Cons
- This terminator is specifically for SCSI CN 50 pin interfaces, limiting its applicability to modern computer systems which rarely use this standard.
- The product's utility is highly specialized, only benefiting systems that still utilize SCSI daisy chain configurations.
- Not a device that enhances performance directly, but rather maintains system stability in a specific legacy setup.
Frequently Asked Questions
What is the primary function of the Monoprice SCSI Active Terminator?
The primary function of this terminator is to reduce interference on SCSI systems by preventing RF signals from reflecting back at the end of an open line.
What kind of connectors does this SCSI terminator have?
This external terminator is double-sided and features both a Centronics CN 50 pin male connector on one side and a female on the other.
Where should this terminator be placed in a SCSI setup?
It should be placed at the end of a daisy chain line to match impedance and minimize signal reflection, ensuring system stability.
Is this Monoprice terminator compatible with modern computer interfaces?
This terminator is designed for Centronics CN 50 pin SCSI interfaces, which are considered legacy and are not typically found on modern computer systems.
How does an active terminator improve SCSI system performance?
An active terminator improves performance indirectly by ensuring signal integrity, which prevents data corruption and improves the reliability of the SCSI bus.
