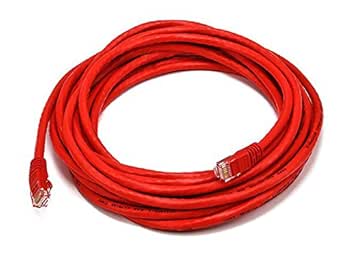

Monoprice 105014 Cat6 Red Ethernet Patch Cable

The Monoprice 105014 is a 20-foot Cat6 patch cable rated to 550MHz, built with 24AWG stranded pure bare copper conductors in a UTP configuration and terminated with gold-plated RJ45 connectors. The compliance callout — UL Code 444 and TIA-568-C.2 — is worth understanding: both standards require pure copper conductors, which rules out the CCA wire found in many budget Cat6 cables. CCA reduces conductivity by roughly 40%, which can push longer runs outside the attenuation limits of the Cat6 spec. At 20 feet on pure copper, this cable has substantial margin from those limits. The 550MHz rating exceeds the 250MHz Category 6 minimum, meaning the cable has bandwidth headroom beyond what 1GbE demands — and sits within the performance range for 10GbE at this length.

The red jacket is the operationally significant differentiator here. In structured cabling environments, color-coding patch cables by function, VLAN, or service type — red for critical systems, blue for data, yellow for VoIP, for example — is standard practice. At 20 feet, this cable is long enough to cover patch-panel-to-switch runs and desktop-to-remote-switch connections in small server rooms and office buildouts. The snagless RJ45 boots protect the connector's locking tab, which is the component most likely to fail mechanically in active cable environments. For network engineers building color-coded infrastructure with full TIA compliance, this cable delivers on both axes.
