Monoprice 115406 1000ft RG59 Coaxial Cable - White — main product image
Monoprice

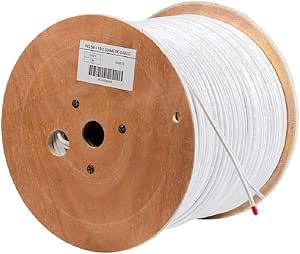

Monoprice 115406 1000ft RG59 Coaxial Cable - White

Create Custom CCTV Connections with Ease The Monoprice Bulk Coaxial Cable allows you to create custom-length video and power connections for your CCTV security cameras. Featuring shielded RG-59 video cable and 18AWG power conductors, this cable is designed for reliable performance in security sys...

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Create Custom CCTV Connections with Ease

The Monoprice Bulk Coaxial Cable allows you to create custom-length video and power connections for your CCTV security cameras. Featuring shielded RG-59 video cable and 18AWG power conductors, this cable is designed for reliable performance in security system installations.

Specifications

  • Video Cable: 22 AWG shielded RG-59
  • Video Impedance: 75 ohms
  • Power Conductors: 18AWG copper conductors
  • Cable Length: 1000 Feet
  • Color: White
  • Application: CCTV security camera installations
Note: Connectors are not included and must be purchased separately.

Key Features

Center Conductor: 22AWG Copper Clad Aluminum solid conductor, 0.108" diameter

Dielectric: Foamed PE, 0.285" diameter over dielectric

Inner Shield: Aluminum/Poly tape, 100% coverage, 0.291" diameter

Outer Shield: 34AWG Tin/Copper Braid, 85% coverage, 0.320" diameter

Jacket: PE or FR-PVC, CMR/CATVR fire rated

Specifications

Cable Type
RG59 Coaxial Cable
Length
1000ft
Color
White
Center Conductor Material
22AWG Copper Clad Aluminum (CCA) solid conductor
Center Conductor Diameter
0.108"
Dielectric Material
Foamed PE
Dielectric Diameter
0.285"
Inner Shield Material
Aluminum/Poly tape
Inner Shield Coverage
100%
Inner Shield Diameter
0.291"
Outer Shield Material
34AWG Tin/Copper Braid
Outer Shield Coverage
85%
Outer Shield Diameter
0.320"
Jacket Material
PE or FR-PVC
Fire Rating
CMR/CATVR

Pros & Cons

👍 Pros

  • Features a 22AWG Copper Clad Aluminum solid conductor, providing efficient signal transmission for video applications.
  • Equipped with a Foamed PE dielectric, which helps maintain signal integrity over long distances.
  • Includes an Aluminum/Poly tape inner shield with 100% coverage, effectively reducing interference.
  • Features a 34AWG Tin/Copper Braid outer shield with 85% coverage, offering additional protection against EMI/RFI.
  • The jacket is made from either PE or FR-PVC, both CMR/CATVR fire rated for safety in wall installations.
  • Comes in a 1000ft spool, offering a substantial length for large installation projects.

👎 Cons

  • The Copper Clad Aluminum (CCA) center conductor is less efficient and durable than pure copper conductors for some applications.
  • The 85% coverage on the outer shield, while good, is not 100%, which might allow for minimal interference in very sensitive setups.
  • RG59 coaxial cable has a higher attenuation rate than RG6, making it less suitable for very long runs with high-frequency signals.
  • The cable is designed for specific video transmission (e.g., CCTV), and may not be optimal for broadband internet or satellite TV.
  • Only available in white, which may not blend seamlessly in all installation environments or aesthetic preferences.
  • The lack of connectors means additional purchases and crimping tools are required for installation.

Frequently Asked Questions

The center conductor of this Monoprice RG59 Coaxial Cable is 22AWG Copper Clad Aluminum solid conductor.
The dielectric is made of Foamed PE (Polyethylene), with a diameter of 0.285 inches over the dielectric.
The inner shield consists of Aluminum/Poly tape, providing 100% coverage.
The outer shield is a 34AWG Tin/Copper Braid, offering 85% coverage.
The jacket is made of PE or FR-PVC and is CMR/CATVR fire rated, indicating suitability for various installations.
This product provides 1000ft of RG59 Coaxial Cable.
