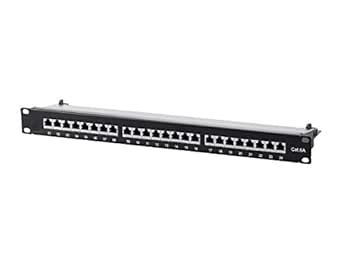

Monoprice 139752 Cat6A Shielded 24 Port Patch Panel
★★★★★
19in
Organize and Protect Your Network ConnectionsIntroducing the Monoprice Cat6A 1U Patch Panel, designed to provide a reliable and organized solution for your network cabling needs. This shielded patch panel ensures optimal performance and protection for your high-speed network connections. Key Spec...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Organize and Protect Your Network Connections
Introducing the Monoprice Cat6A 1U Patch Panel, designed to provide a reliable and organized solution for your network cabling needs. This shielded patch panel ensures optimal performance and protection for your high-speed network connections.
Key Specifications:
- Type: Cat6A Shielded
- Ports: 24 RJ45 Ports
- Height: 1U
- Format: 19" Rackmount
- Wire Compatibility: 22-26AWG Stranded and Solid Wire
- Series: Entegrade Series
Key Features
High-density panel, packs 48 RJ45 ports into 1U 19in panel. Suitable for use with 22-26AWG stranded and solid wire.
Krone type punch-down termination with built-in strain relief bar.
Gold plated RJ45 contacts.
Ports clearly labeled on front.
Includes a color-coded wiring diagram for both T568A and T568B terminations. Meets and exceeds T568A and T568B standards.
Specifications
Port Count
48 RJ45 Ports
Rack Unit Size
1U
Rack Width
19 inches
Wire Compatibility
22-26AWG stranded and solid wire
Termination Type
Krone type punch-down
Contact Material
Gold plated RJ45 contacts
Wiring Standards Support
T568A and T568B
Pros & Cons
👍 Pros
- High-density panel design efficiently accommodates 48 RJ45 ports within a 1U 19-inch rack space.
- Compatible with both 22-26AWG stranded and solid wire for versatile cabling options.
- Features Krone type punch-down termination with a built-in strain relief bar for secure and reliable connections.
- Equipped with gold-plated RJ45 contacts to ensure optimal signal integrity and corrosion resistance.
- Includes clearly labeled ports on the front and a color-coded wiring diagram for T568A and T568B standards, simplifying installation.
👎 Cons
- Installation requires punch-down termination, which may demand specific tools and skills.
- The panel's effectiveness is dependent on proper shielding in the connected cables and network infrastructure.
- Specific details on the materials used for the panel's construction beyond the contacts are not provided.
Frequently Asked Questions
How many ports does this Monoprice patch panel offer?
This high-density panel is designed with 48 RJ45 ports, fitting into a 1U 19-inch rack.
What type of wiring can be used with this patch panel?
The patch panel is suitable for use with both 22-26AWG stranded and solid wire, providing flexibility for different cable types.
What kind of termination method does this panel use?
It features Krone type punch-down termination, which also includes a built-in strain relief bar for secure connections.
Are there guides to help with wiring the panel correctly?
Yes, the panel comes with ports clearly labeled on the front and includes a color-coded wiring diagram for both T568A and T568B terminations to assist with proper setup.
