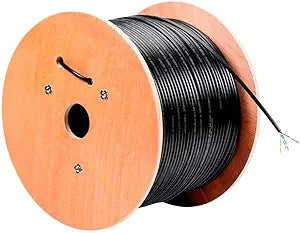

Monoprice Cat5e 24AWG Outdoor Ethernet Cable - 1000ft — main product image
Monoprice

Monoprice Cat5e 24AWG Outdoor Ethernet Cable - 1000ft

25 lbs

Ensure Reliable Network Connectivity with High-Quality CableThe Monoprice Cat5e Ethernet Bulk Cable is designed for reliable network connections. This cable is made with pure bare copper wire and offers a solid 350MHz bandwidth. Suitable for outdoor installations, this cable guarantees high perfo...

View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Ensure Reliable Network Connectivity with High-Quality Cable

The Monoprice Cat5e Ethernet Bulk Cable is designed for reliable network connections. This cable is made with pure bare copper wire and offers a solid 350MHz bandwidth. Suitable for outdoor installations, this cable guarantees high performance and durability for your networking needs.

Specifications:

  • Brand: Monoprice
  • Cable Type: Cat5e Ethernet
  • Wire Type: Solid, Pure Bare Copper
  • Bandwidth: 350MHz
  • Cable Length: 1000ft
  • Jacket: PE + PE (UV) Outdoor
  • AWG: 24AWG
  • Color: Black

Key Features

Buy with Confidence: With Monoprice's Lifetime Warranty on all Cables, you can rest assured we stand behind our products and our customers.

Insulation Overall Diameter: 0.940 0.005mm Insulation Average Thickness: 0.220mm 0.005mm | Jacket: PE + PE (UV) | Outer Jacket Average Wall Thickness: 0.53 0.05mm | Outer Jacket Outside Diameter: 5.8 0.5mm | Color Jacket: Black

Mechanical Characteristics includes: Temperature Rating Installation: -40 ~ +60C | Temperature Rating Operating: -40 ~ +60C |Mininum Bend Radius: Eight times the outer diameter | Maximum Pulling Force: 25 lbs. | Tensile Strenth: Before ? 15 Mpa

Elongation: Aging ? 150 Percent | Aging Condition: 100C x 168 hours, After = 75 Percent of unaged, Aging = 50 Percent of unaged | Rated Temperature / Voltage: 5000M?/km

Electrical Characteristics includes: Maximum Conductor DC Resistance @ 20: ?9.5 ? / 100 Meters | Maximum DC Resistance Unbalanced @ 20: ?2.5 Percent | Maximum Pair-to-Pair Ground Capacitance: ?330 pF / 100 Meters | Characteristic Impedance: 100 15 ?

Specifications

Cable Type
Cat5e Ethernet
Length
1000ft
Wire Gauge
24AWG
Jacket Material
PE + PE (UV)
Jacket Color
Black
Outer Jacket Average Wall Thickness
0.53 ± 0.05mm
Outer Jacket Outside Diameter
5.8 ± 0.5mm
Insulation Overall Diameter
0.940 ± 0.005mm
Insulation Average Thickness
0.220 ± 0.005mm
Installation Temperature Rating
-40 ~ +60°C
Operating Temperature Rating
-40 ~ +60°C
Maximum Pulling Force
25 lbs
Maximum Conductor DC Resistance @ 20°C
≤9.5 Ω / 100 Meters
Maximum DC Resistance Unbalanced @ 20°C
≤2.5 Percent
Maximum Pair-to-Pair Ground Capacitance
≤330 pF / 100 Meters
Characteristic Impedance
100 ± 15 Ω

Frequently Asked Questions

This Monoprice Cat5e cable is designed for outdoor applications, featuring a PE + PE (UV) jacket that provides protection against ultraviolet radiation and environmental elements.
The cable has an installation temperature rating of -40°C to +60°C and an operating temperature rating of -40°C to +60°C, making it suitable for a wide range of climates.
This Monoprice Cat5e cable has a maximum pulling force of 25 lbs, which should be considered when routing and installing the cable.
Yes, Monoprice offers a Lifetime Warranty on all its cables, including this Cat5e outdoor cable, providing assurance for your purchase.
It features a maximum conductor DC resistance of ≤9.5 Ω / 100 meters, maximum DC resistance unbalanced of ≤2.5%, and a characteristic impedance of 100 ± 15 Ω.
The outer jacket has an average wall thickness of 0.53 ± 0.05mm, contributing to its durability and protection in outdoor environments.
