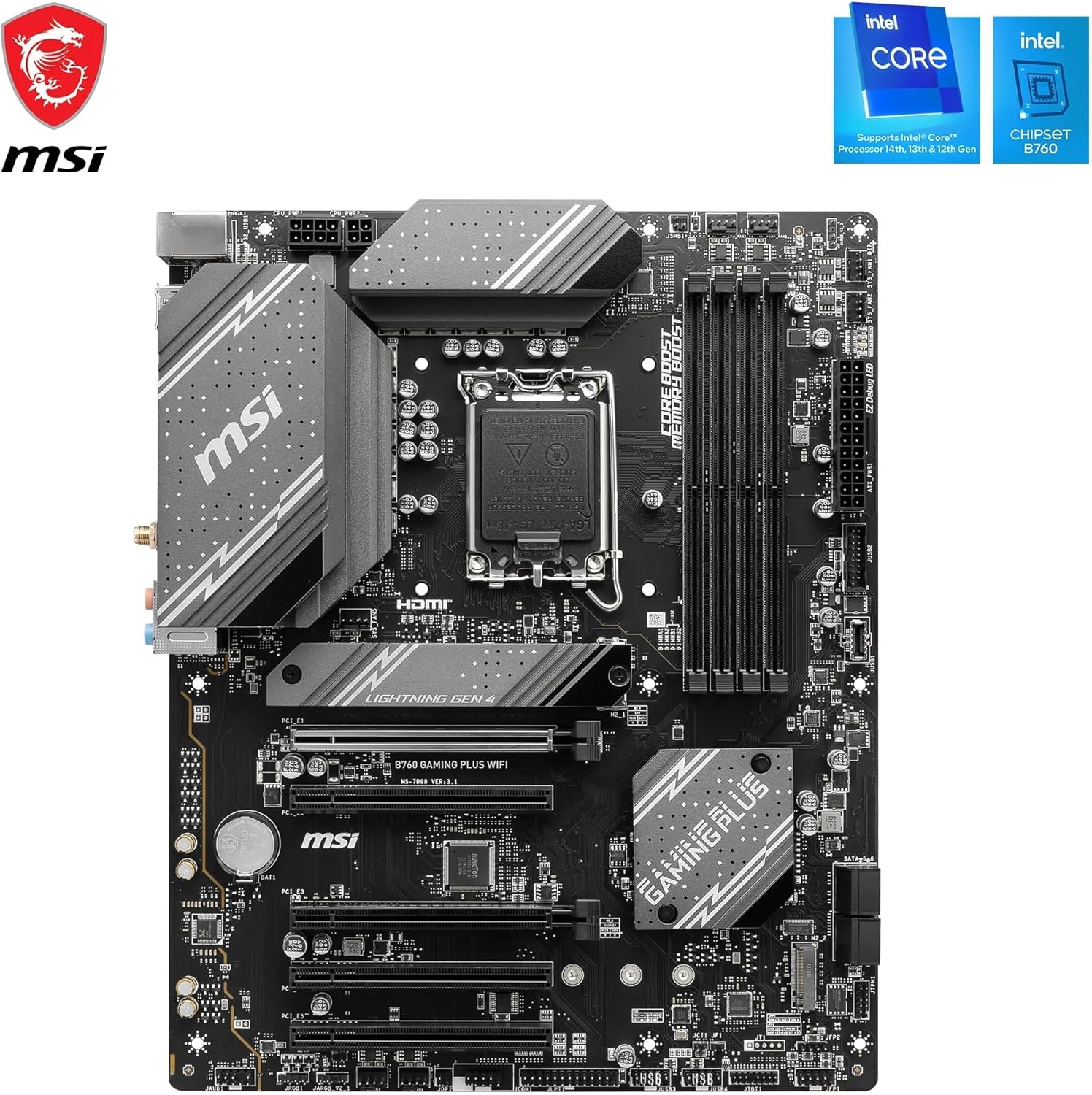

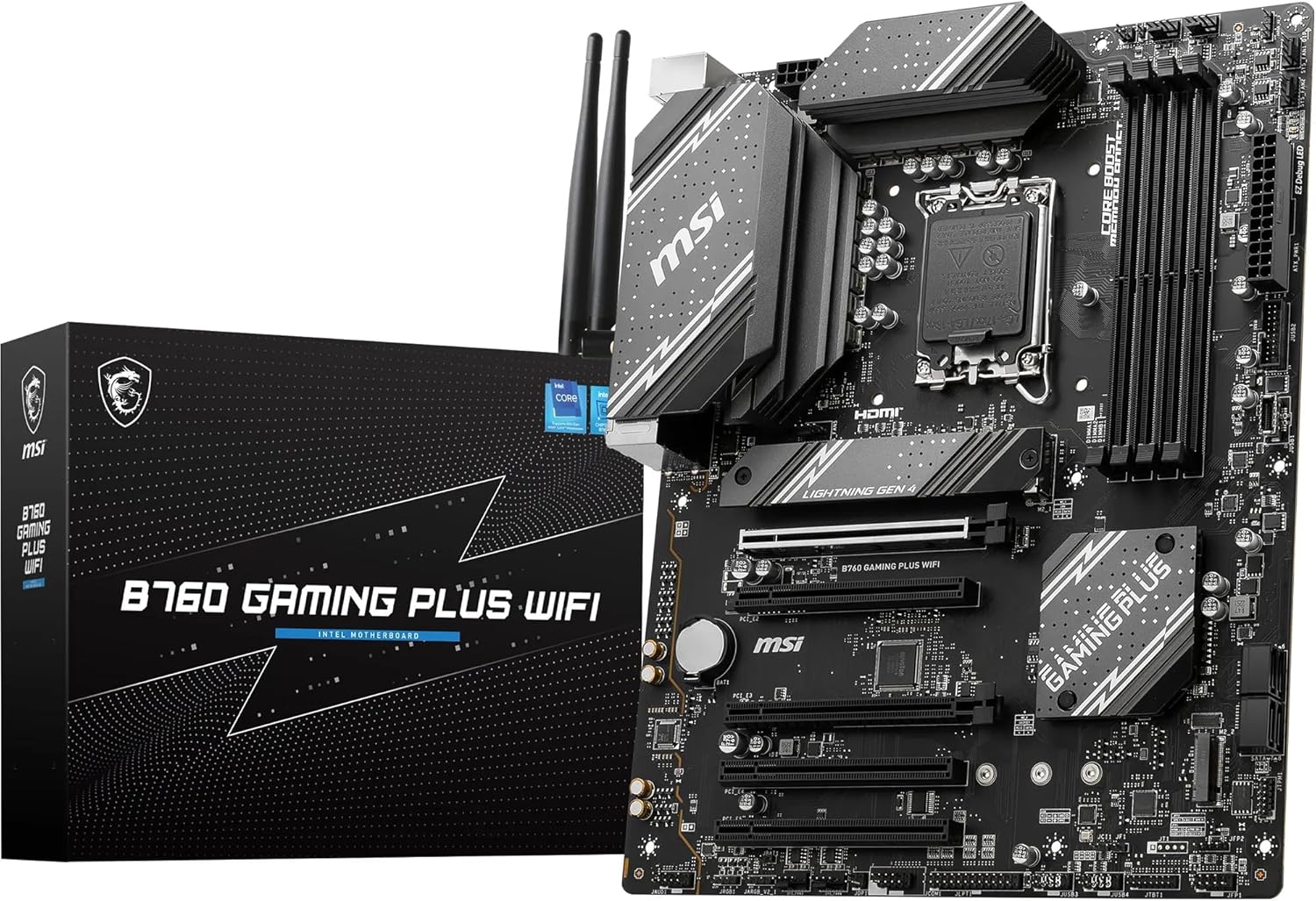

MSI 7D98-007R B760 Gaming Plus WiFi Motherboard
★★★★★
7WBluetooth 5.3USB 3.2PCIe x16HDMI 2.1
Unleash Peak Performance with the MSI B760 Gaming Plus WiFi Motherboard The MSI B760 Gaming Plus WiFi Motherboard is engineered to support the latest Intel processors and provide a robust foundation for your gaming rig. Featuring advanced cooling solutions, high-speed connectivity, and support ...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash Peak Performance with the MSI B760 Gaming Plus WiFi Motherboard
The MSI B760 Gaming Plus WiFi Motherboard is engineered to support the latest Intel processors and provide a robust foundation for your gaming rig. Featuring advanced cooling solutions, high-speed connectivity, and support for the latest DDR5 memory, this ATX motherboard ensures optimal performance and stability for demanding applications and gaming scenarios.
Specifications
- Processor Support: Intel Celeron, Intel Pentium Gold (12th & 13th Gen Core)
- Processor Socket: LGA 1700
- Chipset: Intel B760
- Memory Type: DDR5-SDRAM
- Memory Slots: DIMM
- Maximum Internal Memory: 192 GB
- Memory Speed: 6800+ MHz (OC)
- Storage Interfaces: M.2, SATA
- RAID Levels: 0, 1, 5, 10
- Ethernet: 2.5 Gigabit Ethernet (Dragon RTL8125BG LAN controller)
- Wi-Fi: Wi-Fi 6E (802.11ax)
- Bluetooth: 5.3
- Form Factor: ATX
- USB Ports (Rear): USB 3.2 Gen 2 Type-C & Type-A (10Gbps), USB 2.0
- Graphics Output: HDMI 2.1, DisplayPort 1.4
- Audio: 7.1 HD Audio with Audio Boost (S/PDIF output support)
- Expansion Slots: 2 x PCIe 4.0 x16 slots (with Steel Armor on primary slot)
- M.2 Slots: 2 x M.2 Gen4 x4 64Gbps slots (with Shield Frozr on primary slot)
- Cooling: Extended heatsink, 7W/mK MOSFET thermal pads, Chipset Heatsink, M.2 Shield Frozr, Dedicated pump-fan cooling header, 6-layer PCB with 2 oz. thickened copper
Key Features
14TH, 13TH & 12TH GEN CORE - The B760 GAMING PLUS WIFI (ATX) employs a 12 Duet Rail Power System (P-PAK) VRM for the Intel B760 chipset (LGA 1700, 14th, 13th & 12th Gen); The VRM features MSI Core Boost technology for improved stability & performance

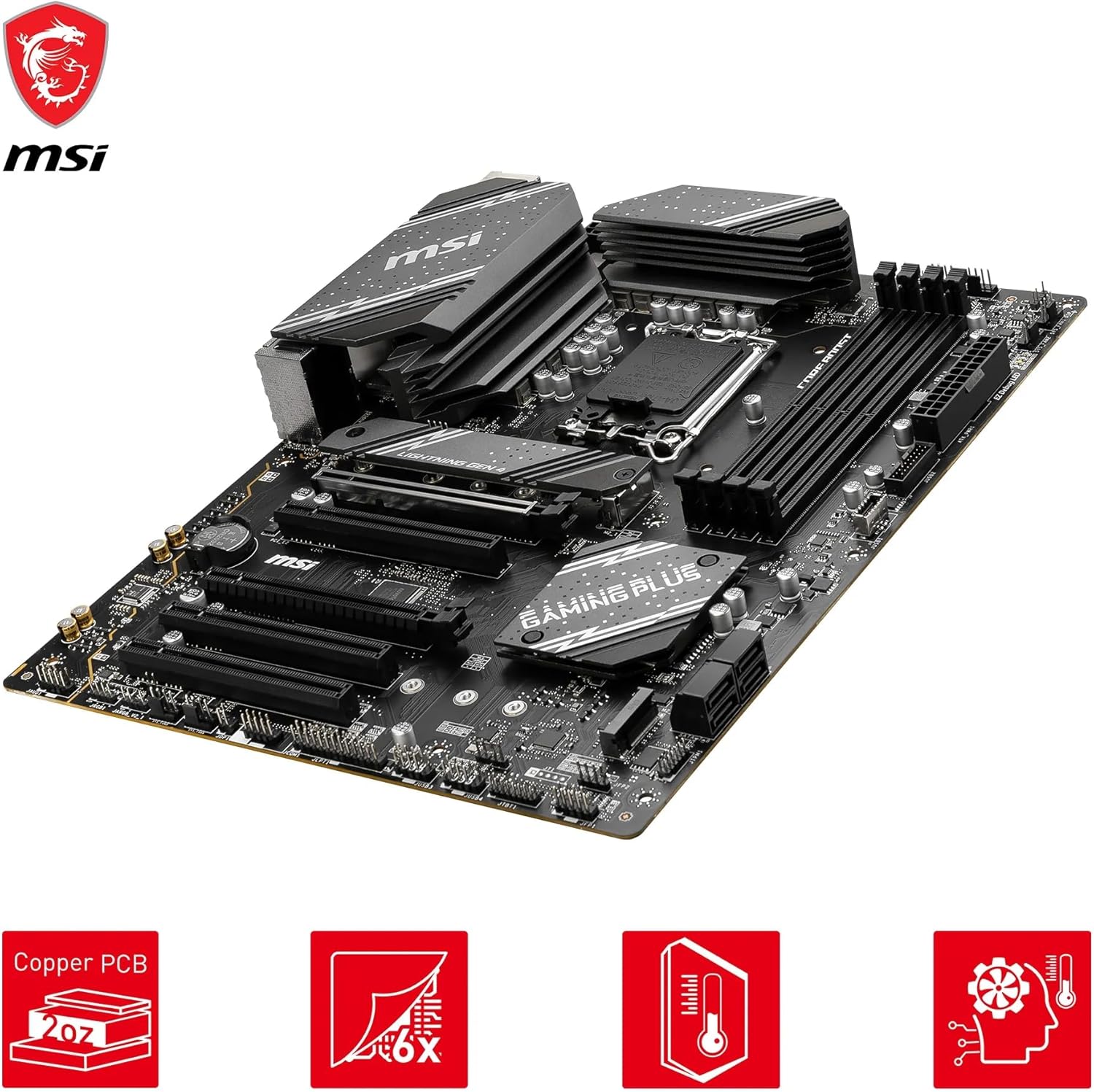

INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper

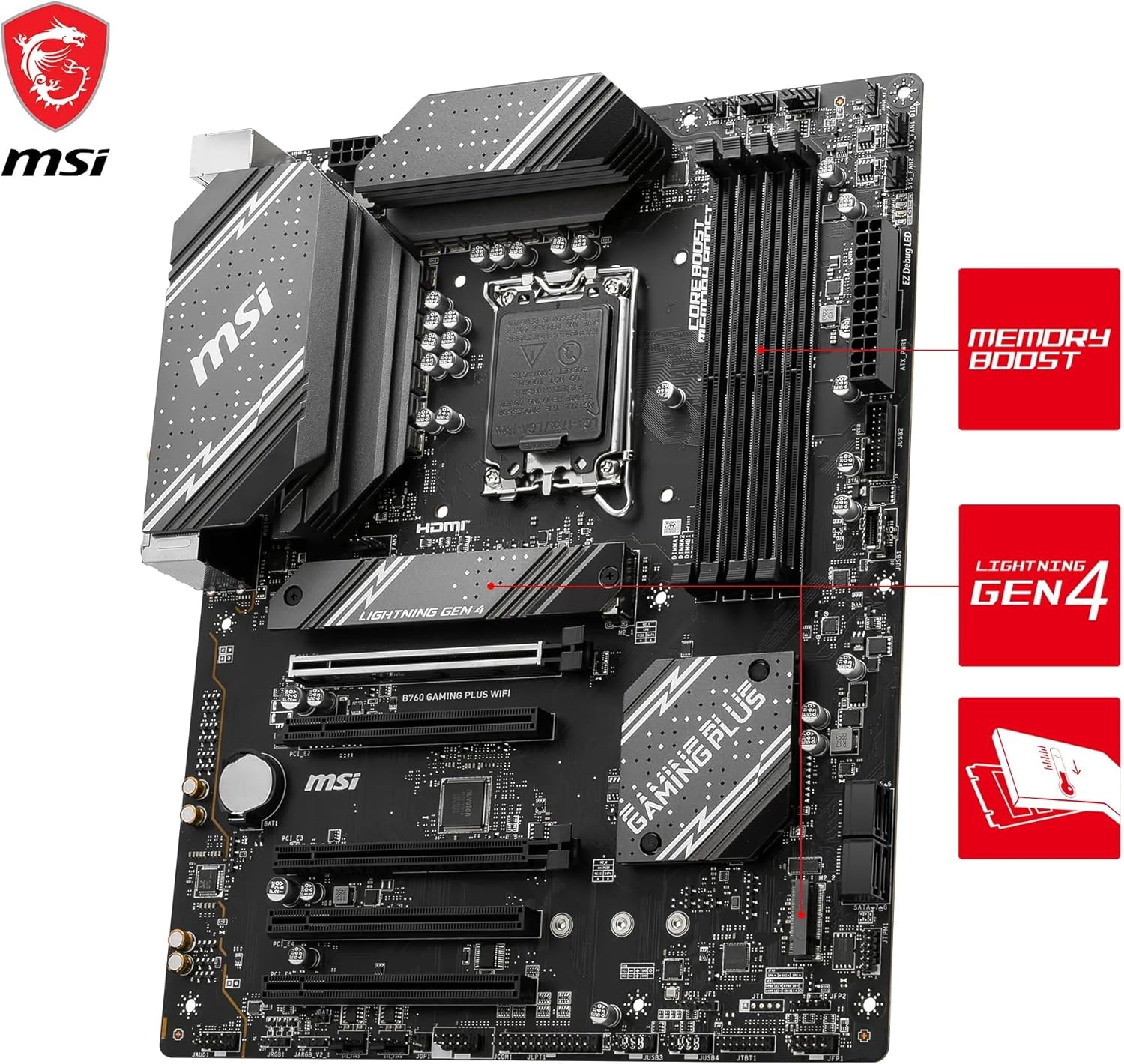

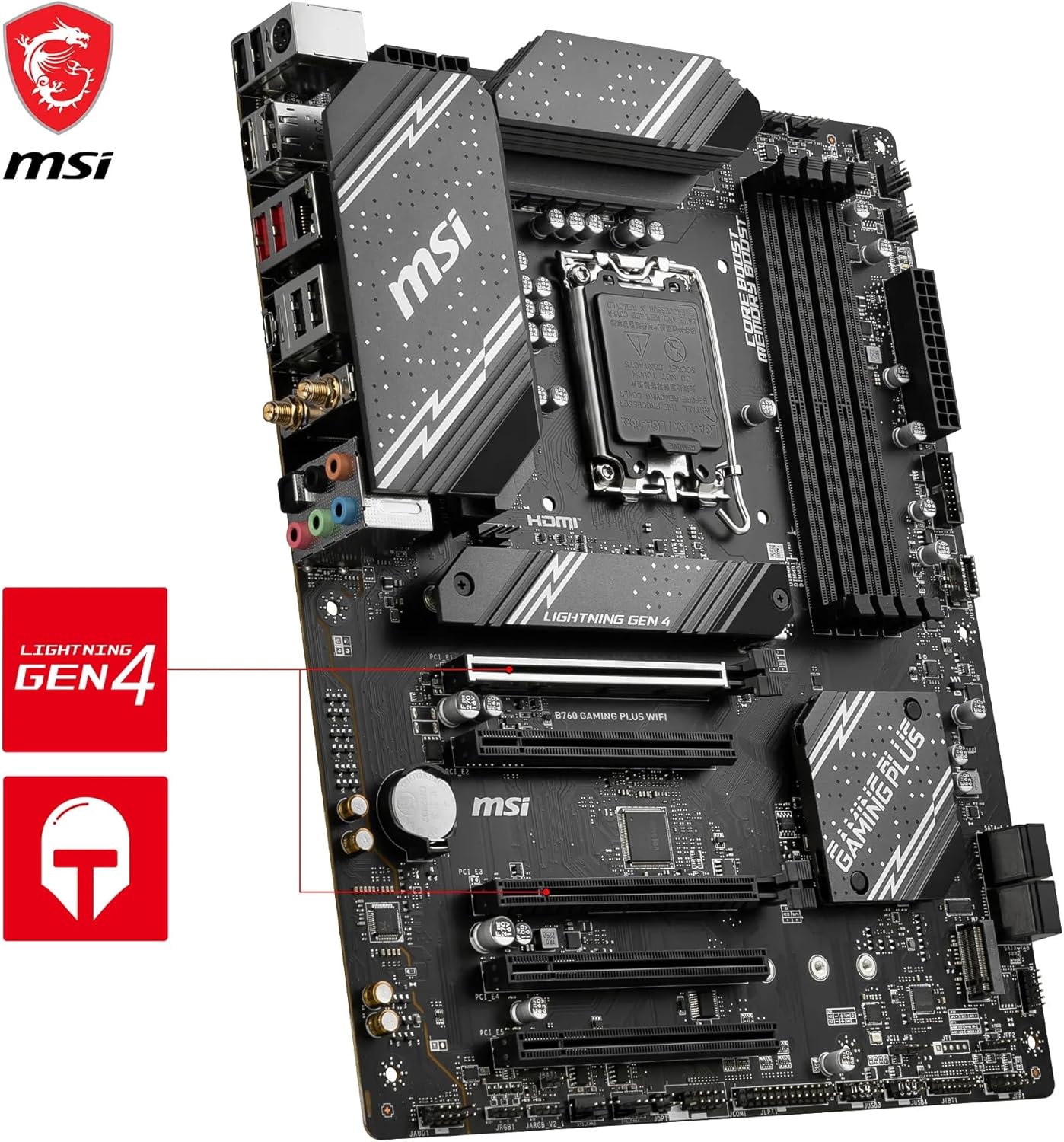

DDR5 MEMORY, DUAL PCIe 4.0 x16 SLOTS - 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6800+ MHz); 2 x PCIe 4.0 x16 slots (64GB/s) supports graphics cards, primary PCIe x16 slot includes Steel Armor
DUAL M.2 CONNECTORS - Storage options include 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr on the primary slot to prevent thermal throttling during hyper-fast SSD access

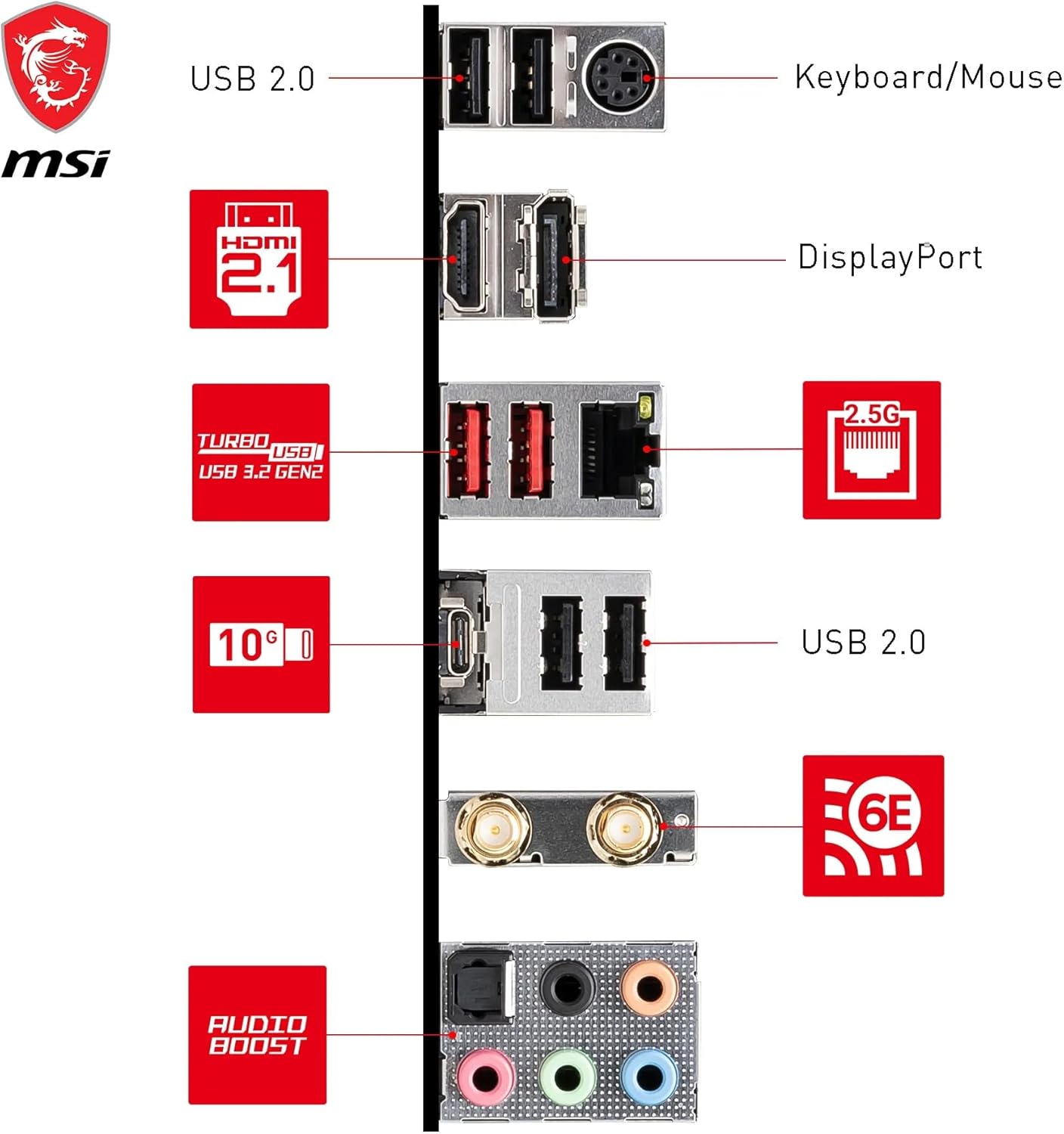

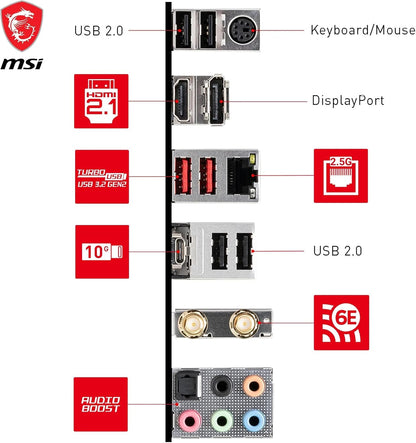

WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2 Type-C & Type-A (10Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
Specifications
Chipset
Intel B760
CPU Socket
LGA 1700
Supported CPU Generations
14th, 13th & 12th Gen Intel Core
VRM
12 Duet Rail Power System (P-PAK) with MSI Core Boost
RAM Slots
4x DDR5 DIMM
Max RAM Speed (OC)
6800+ MHz (1DPC 1R)
PCIe x16 Slots
2x PCIe 4.0 x16 (64GB/s, primary with Steel Armor)
M.2 Connectors
2x M.2 Gen4 x4 64Gbps (primary with Shield Frozr)
Wireless Connectivity
Intel Wi-Fi 6E, Bluetooth 5.3
LAN Speed
2.5Gbps
Rear USB Ports
USB 3.2 Gen 2 Type-C, USB 3.2 Gen 2 Type-A (10Gbps)
Video Outputs
HDMI 2.1, DisplayPort 1.4
Audio
7.1 HD Audio with Audio Boost (supports S/PDIF output)
PCB Layer Count
6-layer with 2 oz. thickened copper
MOSFET Thermal Pads
7W/mK
Similar Products
Other products from the same family that visitors often consider:
✓ AvailableMSI B760 GAMING PLUS WIFI Motherboard - Intel 12th/13th/14th Gen
View on Amazon →
✓ AvailableMSI X670E GAMING PLUS WIFI AMD Motherboard
View on Amazon →
✓ AvailableMSI X870 Gaming Plus WiFi ATX Motherboard Ryzen
View on Amazon →
✓ AvailableMSI B650 Gaming Plus WiFi AM5 Motherboard Renewed
View on Amazon →
✓ AvailableMSI Z590PWIFI-cr PRO WiFi Gaming Motherboard Renewed
View on Amazon →Pros & Cons
👍 Pros
- Supports 14th, 13th, and 12th Gen Intel Core processors, offering broad compatibility with modern CPUs.
- Features a robust 12 Duet Rail Power System (P-PAK) VRM and Core Boost for stable power delivery to the CPU.
- Incorporates comprehensive cooling with an extended heatsink, M.2 Shield Frozr, and 7W/mK MOSFET thermal pads.
- Equipped with 4 DDR5 DIMM slots and Memory Boost technology, supporting overclocked RAM speeds up to 6800+ MHz.
- Offers fast connectivity with Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, and high-speed USB 3.2 Gen 2 Type-C and Type-A ports.
👎 Cons
- Only includes two PCIe 4.0 x16 slots, which might be limiting for users requiring more expansion cards.
- Only the primary M.2 slot comes with Shield Frozr, potentially leaving the second M.2 slot more susceptible to thermal throttling.
- The 12 Duet Rail Power System is suitable for gaming, but more extreme overclockers might look for even higher phase counts.
- Memory Boost for 6800+ MHz DDR5 is dependent on CPU and memory kit, and stability is not guaranteed across all configurations.
- The inclusion of S/PDIF output for audio is noted, but the exact audio codec and its quality aren't detailed.
Frequently Asked Questions
Which Intel processors are compatible with the MSI B760 Gaming Plus WiFi motherboard?
The MSI B760 Gaming Plus WiFi motherboard is designed to support 14th, 13th, and 12th Gen Intel Core processors for the LGA 1700 socket.
What type of RAM does this motherboard use, and what speeds does it support?
This motherboard features 4 DDR5 DIMM slots with Memory Boost isolated circuitry, capable of supporting overclocked speeds up to 6800+ MHz.
How many M.2 slots are available for storage on this board?
The MSI B760 Gaming Plus WiFi offers two M.2 Gen4 x4 64Gbps slots for high-speed storage, with the primary slot protected by an M.2 Shield Frozr.
What kind of network connectivity does this motherboard provide?
For networking, it includes an Intel Wi-Fi 6E module with Bluetooth 5.3 and a 2.5Gbps LAN port, ensuring fast and reliable connections.
Does the motherboard have sufficient cooling for its components?
Yes, it features integrated cooling with an extended heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr to manage heat effectively.
