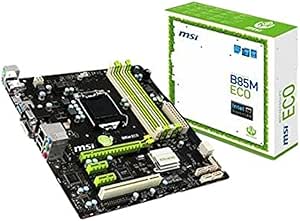

MSI B85M ECO Micro ATX DDR3 Motherboard
★★★★★
USB 3.0USB 2.0
Build Your Compact System with the MSI B85M ECO MotherboardThe MSI B85M ECO is a Micro ATX motherboard designed for Intel LGA 1150 processors. It supports DDR3 memory, SATA3, and USB 3.0, making it an ideal choice for building energy-efficient and compact systems. Specifications Form Factor...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your Compact System with the MSI B85M ECO Motherboard
The MSI B85M ECO is a Micro ATX motherboard designed for Intel LGA 1150 processors. It supports DDR3 memory, SATA3, and USB 3.0, making it an ideal choice for building energy-efficient and compact systems.
Specifications
- Form Factor: Micro ATX
- CPU Socket: LGA 1150
- Chipset: Intel B85
- Memory: DDR3 1600
- SATA: SATA3
- USB: USB3.0
- Audio: A
- Ethernet: GbE
Key Features
CPU: LGA1150
Memory: 4x DDR3-1600/ 1333/ 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, 1x PCI Slot
SATA: 4x SATA3 Ports, 2x SATA2 Ports
Ports: 4x USB 3.0 Ports, 8x USB 2.0 Ports, 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
Form Factor: MicroATX
Specifications
Brand
MSI
Model
B85M ECO
Form Factor
MicroATX
CPU Socket
LGA1150
Memory Slots
4x DDR3 DIMM
Memory Type
DDR3-1600/ 1333/ 1066
Memory Channel
Dual Channel
Memory ECC Support
Non-ECC, Unbuffered
Max Memory Capacity
32GB
PCI-Express 3.0 x16 Slots
1
PCI-Express 2.0 x1 Slots
2
PCI Slots
1
SATA3 Ports
4
SATA2 Ports
2
USB 3.0 Ports
4
USB 2.0 Ports
8
PS/2 Keyboard Port
1
PS/2 Mouse Port
1
Video Output Ports
VGA, DVI-D, HDMI
LAN Port
RJ45
Audio Ports
I/O Jacks
Pros & Cons
👍 Pros
- Supports LGA1150 CPUs, providing compatibility with a range of Intel processors for custom PC builds.
- Equipped with 4 DDR3 DIMM slots, allowing for up to 32GB of DDR3 memory in dual channel configuration.
- Features a PCI-Express 3.0 x16 slot, ideal for high-performance graphics cards or other expansion cards.
- Offers a comprehensive set of ports including 4x USB 3.0, 8x USB 2.0, VGA, DVI-D, HDMI, and RJ45 LAN for versatile connectivity.
- The MicroATX form factor makes it suitable for compact PC cases without sacrificing essential features.
👎 Cons
- Only supports DDR3 memory, which is an older standard compared to the faster and more efficient DDR4 and DDR5 RAM.
- The maximum memory capacity is 32GB, which might be a limitation for very demanding workstation or server applications.
- Features only one PCI-Express 3.0 x16 slot, limiting options for multiple high-bandwidth expansion cards like dual GPUs.
- The B85M chipset, while functional, is an older generation and may lack features found in newer chipsets, such as M.2 SSD support or more advanced RAID configurations.
- Includes 2x SATA2 ports alongside 4x SATA3, meaning some storage devices might be limited to slower transfer speeds.
Frequently Asked Questions
What type of CPU socket does the MSI B85M ECO motherboard support?
The MSI B85M ECO motherboard supports LGA1150 CPUs, which are compatible with a range of Intel processors.
How much RAM can be installed on this motherboard?
This motherboard has 4 DDR3 DIMM slots and can support a maximum capacity of 32GB of DDR3-1600/1333/1066 memory.
Does the MSI B85M ECO support the latest graphics cards?
The MSI B85M ECO features one PCI-Express 3.0 x16 slot, which is capable of supporting most modern graphics cards, though its bandwidth is for a single card configuration.
What kind of storage connectivity options are available?
The motherboard provides 4 SATA3 ports and 2 SATA2 ports, allowing for various hard drive and SSD connections.
What video output options are integrated into this motherboard?
The MSI B85M ECO motherboard includes VGA, DVI-D, and HDMI ports for video output, offering versatile display connectivity.
Is this motherboard suitable for building a compact PC?
Yes, with its MicroATX form factor, the MSI B85M ECO motherboard is well-suited for building compact personal computers.
Does this motherboard support ECC memory?
No, the MSI B85M ECO motherboard supports Non-ECC, Unbuffered DDR3 memory modules.
