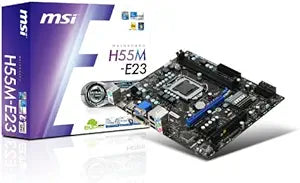

MSI H55M-E23 LGA1156 Micro ATX Motherboard
★★★★★
USB 2.0
Compact and Reliable Motherboard for Essential ComputingThe MSI H55M-E23 Micro ATX Motherboard offers a stable and efficient platform for building a reliable desktop system. Designed with the Intel H55 chipset, this motherboard supports LGA1156 processors and DDR3 memory. Form Factor: Micro...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact and Reliable Motherboard for Essential Computing
The MSI H55M-E23 Micro ATX Motherboard offers a stable and efficient platform for building a reliable desktop system. Designed with the Intel H55 chipset, this motherboard supports LGA1156 processors and DDR3 memory.
- Form Factor: Micro ATX
- Socket: LGA1156
- Chipset: Intel H55
- Memory: DDR3
- Networking: A&GbE
Key Features
CPU: Socket 1156 Support Intel Core i7/i5/i3 Series Processor, QPI upto 6.4GT/s Chipset: Intel H55
Memory: 2x 240pin DDR3-1600(OC)/1333/1066 DIMMs, Unbuffered, Dual Channel, Max capacity upto 8GB
SATA: 6x SATA2 Ports Audio: Realtek ALC887 8-channel HD Audio Codec
LAN: Realtek 8111E PCI-Express Gigabit LAN Controller
Ports: 10x USB 2.0 Ports (4 rear, 6 by header); 2x PS/2 Ports; 1x VGA Port; 1x HDMI Port; 1x DVI Port; 1x RJ45 LAN port; Audio I/O jacks
Slots: 1x PCI-Express 2.0 x16 Slot; 2x PCI-Express 2.0 x1 Slots; 1x PCI slot(support 3.3V/5V PCI bus Interface)
Power Connector: 1x 24pin main power connector, 1x 4pin CPU power connector
Specifications
CPU Socket
LGA 1156
Supported CPUs
Intel Core i7/i5/i3 Series Processor
Chipset
Intel H55
Memory Slots
2x 240pin DDR3 DIMMs
Max Memory Capacity
8GB
Memory Speed
DDR3-1600(OC)/1333/1066
SATA Ports
6x SATA2 Ports
Audio Codec
Realtek ALC887 8-channel HD Audio
LAN Controller
Realtek 8111E PCI-Express Gigabit LAN
USB Ports
10x USB 2.0 Ports (4 rear, 6 by header)
Video Outputs
VGA, HDMI, DVI
PCI-Express x16 Slots
1x PCI-Express 2.0 x16
PCI-Express x1 Slots
2x PCI-Express 2.0 x1
PCI Slots
1x PCI slot
Pros & Cons
👍 Pros
- Supports Intel Core i7/i5/i3 Series Processors with LGA 1156 socket, offering compatibility with a range of CPUs.
- Features 2x 240pin DDR3 DIMM slots, supporting up to 8GB of unbuffered, dual-channel DDR3 memory at speeds up to 1600(OC)MHz.
- Equipped with 6x SATA2 ports, providing ample connectivity for multiple storage devices.
- Includes a Realtek 8111E PCI-Express Gigabit LAN Controller for reliable high-speed network connectivity.
- Offers a comprehensive set of ports including 10x USB 2.0, PS/2, VGA, HDMI, DVI, and RJ45 LAN for broad peripheral compatibility.
- Provides essential expansion slots: 1x PCI-Express 2.0 x16, 2x PCI-Express 2.0 x1, and 1x PCI slot.
👎 Cons
- Limited to 8GB maximum memory capacity, which may be insufficient for users running demanding applications or extensive multitasking.
- Only features SATA2 ports, meaning it does not support the faster SATA3 (6Gb/s) speeds for modern SSDs.
- The onboard USB connectivity is limited to USB 2.0, lacking the higher speeds of USB 3.0 or later standards.
- Being a Micro ATX form factor, it offers fewer expansion slots compared to full-sized ATX motherboards.
- The integrated Realtek ALC887 8-channel HD Audio Codec, while functional, might not satisfy audiophiles seeking premium audio solutions.
Frequently Asked Questions
What types of CPUs are compatible with the MSI H55M-E23 motherboard?
This motherboard supports Intel Core i7, i5, and i3 Series Processors that utilize the LGA 1156 socket.
How much RAM can this motherboard support?
The MSI H55M-E23 can support a maximum capacity of 8GB of unbuffered, dual-channel DDR3 memory across its two 240pin DIMM slots.
Does this motherboard have integrated graphics outputs?
Yes, it includes multiple video output ports: 1x VGA, 1x HDMI, and 1x DVI port for display connectivity.
What kind of storage interfaces are available?
The motherboard provides 6x SATA2 Ports for connecting storage devices.
Are there USB 3.0 ports on this motherboard?
No, this motherboard features 10x USB 2.0 Ports (4 on the rear panel and 6 via internal headers), but it does not support USB 3.0.
What expansion slots are available for add-in cards?
It offers 1x PCI-Express 2.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots, and 1x PCI slot for additional expansion cards.
